C1PB
Overall Product Dimensions
Model No.
Height
Width
C1PB
13"
Model No.
Gas Supply
BTU's
C1PBLP
Propane
60,000
C1PBNG
Natural Gas 60,000
Important Note to Installer:
This file is not intended to replace your Owners' Manual which contains specific safety requirements
and consumer guidelines. Please refer to your Owners' Manual prior to installing or operating your built-in side burner.
INSTALL GUIDE

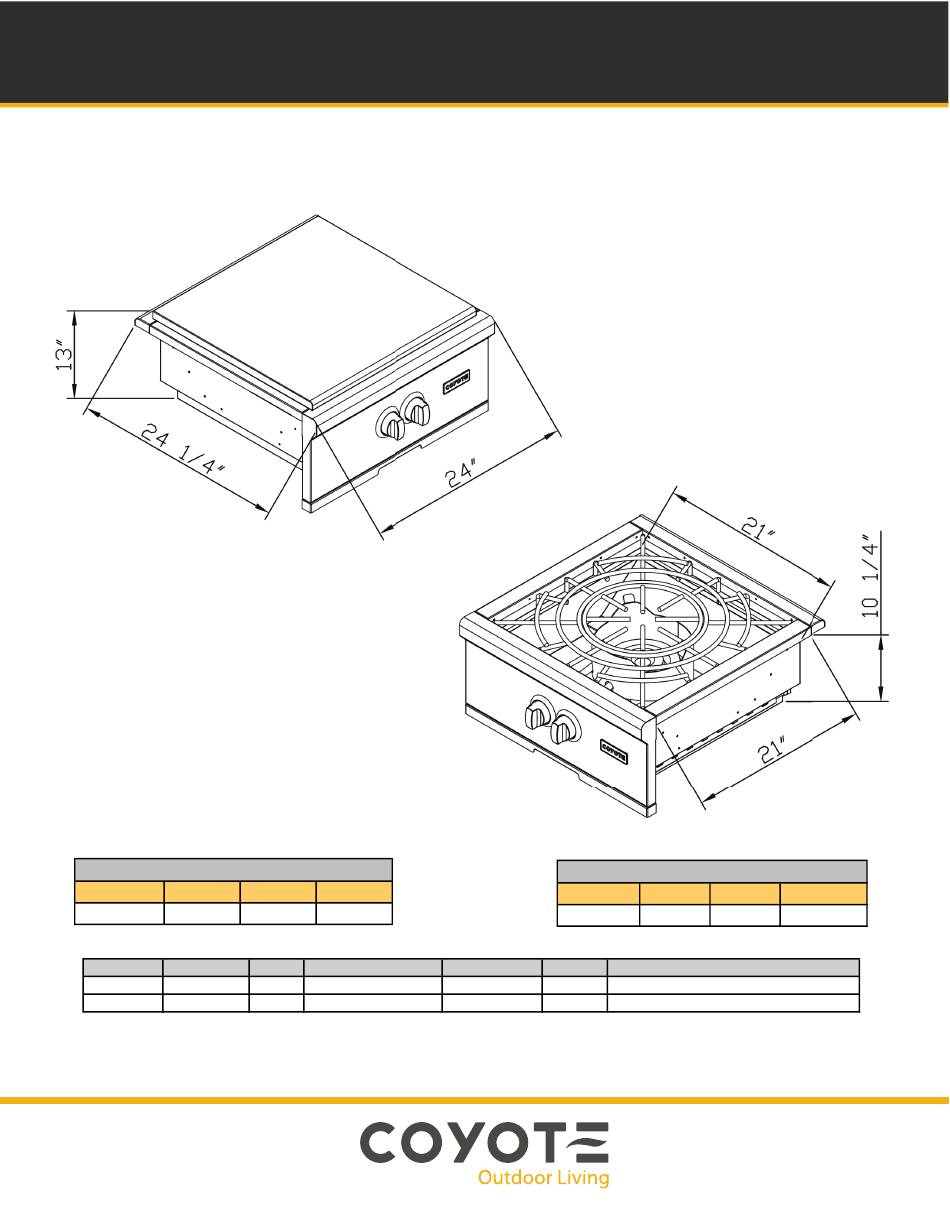

DIMENSIONAL RENDERINGS
Depth
24 1 /4"
24"
Regulator
20 lb Tank Regulator
1/2" Female Pipe
www.coyoteoutdoor.com
Cutout Dimensions for Island
Model No.
C1PB
WC Pressure
Max PSI
11"
.5 PSI
No Electrical Connections Required
4"
.5 PSI
No Electrical Connections Required
Height
Width
Depth
10 1 /4"
21"
21"
Electrical Requirements
