Document Type: Service Manual
Version: V1.0 04112018
SERVICE MANUAL

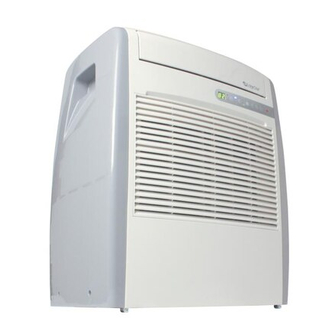

EdgeStar Small Room Portable Air Conditioner
with 71 Pint Dehumidifier
MODEL:
AP8000W
CAUTION: READ ALL SAFETY PRECAUTIONS IN THIS
MANUAL BEFORE SERVICING THE UNIT
EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP8000W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EdgeStar AP8000W

Summary of Contents for EdgeStar AP8000W

  • Page 1 71 Pint Dehumidifier MODEL: AP8000W CAUTION: READ ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE SERVICING THE UNIT EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754 support.edgestar.com • service@edgestar.com • edgestar.com *Warranty service should be performed by an authorized service representative only.

  • Page 2: Table Of Contents

    CONTENTS CONTENTS ............................1 SAFETY PRECAUTIONS ........................1 ELECTRICAL SAFETY ........................2 GENERAL SAFETY ......................... 3 1 SPECIFICATIONS ........................... 4 2 EXPLODED VIEW AND PARTS LIST ....................5 3 WIRING DIAGRAM ........................7 4 REFRIGERANT SYSTEM DIAGRAM ....................7 5 MODES AND OPERATING CONDITIONS ..................8 5.1 TERMS AND DEFINITIONS .....................

  • Page 3: Electrical Safety

    Electrical Safety  Do not exceed the power outlet ratings.  It is recommended that the unit be connected to its own circuit.  A standard electrical supply that is properly grounded in accordance with the National Electrical Code and all state and local codes and ordinances is required. ...

  • Page 4: General Safety

    General Safety  Always unplug an appliance from the power supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.  Do not allow children or pets to play on or in the appliance. ...

  • Page 5: Specifications

    1 Specifications Description of product Portable Air Conditioner Model AP8000W Voltage / Frequency AC 115V ~ 60Hz Input Power 860 W Current 7.9 A Cooling Capacity (SACC) 4500 BTU Cooling Capacity (ASHRAE) 8000 BTU Color White Dehumidifying Capacity 71 pints / Day...

  • Page 6: Exploded View And Parts List

    2 Exploded View and Parts List...
  • Page 7 PART NAME PART NAME BASE PAN TOP COVER PLATE CASTOR TOP COVER PLATE PLUG POWER SUPPLY CORD FAN BRACKET BRACKET FAN MOTOR BRACKET BLADE SHOCK ABSORBER DRAIN BUCKET COVER SIDE PANEL TANK LID SIDE PANEL FLOAT FRONT PANEL FLOAT SWITCH LOUVER DRAINAGE PAN FAN AIR DEFLECTOR...

  • Page 8: Wiring Diagram

    3 Wiring Diagram 4 Refrigerant System Diagram...

  • Page 9: Modes And Operating Conditions

    5 Modes and Operating Conditions 5.1 Terms and Definitions  TA: Ambient indoor temperature.  TS: Set temperature. 5.2 Cooling Mode (Blue Light)  The cooling temperature can be set from 61 to 89℉ (16 to 32℃.)  The timer function works in cooling mode. ...

  • Page 10: Dehumidify Mode (Amber Light)

    5.4 Dehumidify Mode (Amber Light)  In this mode, the air conditioner will operate as a dehumidifier. Because the conditioned space is closed or sealed, some degree of cooling will continue to occur.  If the room temperature is below 77ºF, the fan will always run on low speed while in dehumidify mode.

  • Page 11: Troubleshooting

    6 Troubleshooting Problem Possible Cause Solution Wall plug is disconnected. Insert plug firmly into proper wall outlet. House fuse blown or circuit breaker Replace fuse with time delay type or reset circuit tripped. breaker. Press the RESET button on the power cord. If power Power cord is tripped.
  • Page 12 Filter is dirty. Clean filter. The condenser coils are dirty. Carefully vacuum the coils clean. Unit continues to Water level switch is open or short Check water level switch connections or replace operate after water circuited. water level switch if defective. tray is full or water full Water level switch is stuck in Make sure water level switch is operating correctly...
  • Page 13 DATE REVISION NOTES 04/11/2018 INITIAL DOCUMENT EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754 support.edgestar.com • service@edgestar.com • edgestar.com *Warranty service should be performed by an authorized service representative only.
