REF.
PART NAME
A
Connection Panel
B
Left Panel
C
Right Panel
D
Front Top Rail
E
Front Bottom Rail
F
Back Top Rail
G
Back Bottom Rail
H
Back Panel
J
Back Middle Rail
DR1
Front panel
DR2
Side panel
DR3
Back panel
DR4
Bottom panel
DR5
Bottom support panel
a
3 " bolt
b
barrel nut
c
cams
d
cam bolts
e
1" screw
f
1-3/5" wood dowel
g
knob
h
1" screw
i
allen wrench
j
tip over restraint
a
b
f
e
i
j
QUANTITY
Read all instructions before assembling.Save
1
instructions for future use.Carefully remove and lay
1
out all parts.Familiarize yourself with all diagrams to
1
1
facilitate the assembly of your product.Check parts
1
and the enclosed hardware bag with the hardware
1
parts list to be sure all are included and quantities
1
are correct.Destroy cardboard and plastic bags
2
1
immediately.
5
Attention: In order to properly assemble the chest,
10
follow the assembly instructions carefully.Failure to
5
assemble in the manner recommended could make
5
the chest hazardous.
5
Warning:Never use this product if there are any loose
12
or missing fasteners,loose joints,broken parts,or torn
12
mesh/fabric.check before assembly and periodically
5
5
during use.Contact Dream On Me.for replacement
45
parts and instructional literature if needed.
6
10
10
1
2
d
c
g
h
PHILLIPS--HEAD SCREWDRIVER
REQUIRED FOR ASSEMBLY
----NOT INCLUDE
1

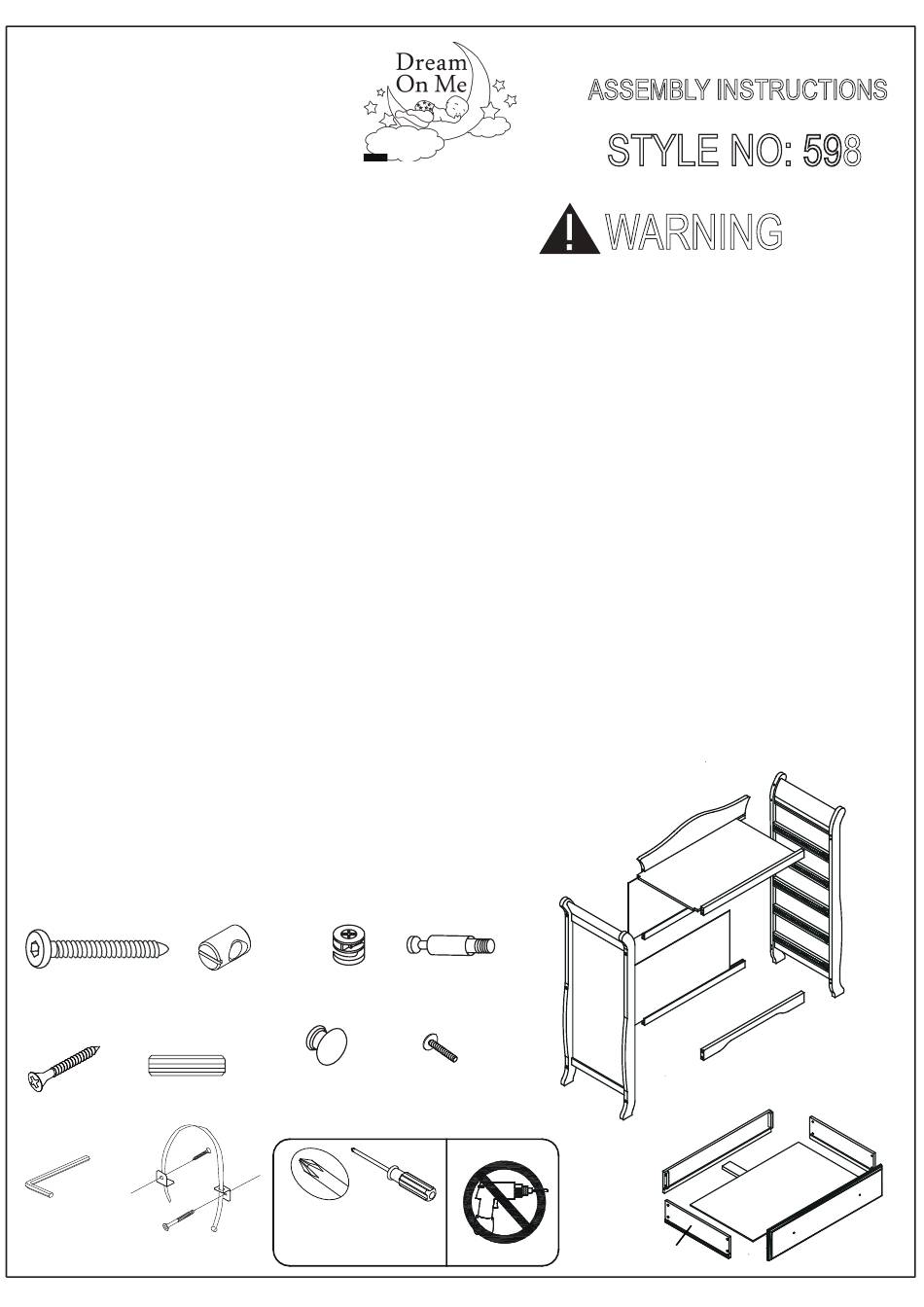

ASSEMBLY INSTRUCTIONS
STYLE NO: 598
WARNING
F
A
D
H
J
H
B
G
E
DR3
DR5
DR4
DR2.1
C
DR2.2
DR1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dream On Me 598
Summary of Contents for Dream On Me 598
- Page 1 3 ” bolt or missing fasteners,loose joints,broken parts,or torn barrel nut mesh/fabric.check before assembly and periodically cams cam bolts during use.Contact Dream On Me.for replacement 1” screw parts and instructional literature if needed. 1-3/5” wood dowel knob 1” screw allen wrench tip over restraint DR2.2...
- Page 2 STEP 1 Use allen wrench (i) to connect bolts. Connect front top rail (D),front bottom rail (E), back top panel (F),back bottom rail (G) and back middle rail (J) to right panel (C) by using 3” bolt (a),barrel nut (b) and 1-3/5” wood dowel (f). STEP 2 Lay down the assembled parts on the floor.
- Page 3 STEP 3 to the assembled the left panel (B) Assemble parts of STEP 2 use the same way as shown in STEP 1. STEP 4 Connect side panel (DR2) to front panel DR2.2 (DR1) by using 1” screw (e) . Connet bottom support panel (DR5) to front panel (DR1) by using cams (c) and cam bolts (d).
- Page 4 STEP 5 Slide bottom panel (DR4) painted side DR2.2 up , into grooves of front panel (DR1) and side panel (DR2) . DR2.1 STEP 6 DR2.1 DR2.2 Connect back panel (DR3) to side panel (DR2) and bottom support panel (DR5) by using 1”...
- Page 5 STEP 7 Connect the knob (g) to front panel (DR1) by using 1” screw (h) . STEP 8 Slide the drawers into rails on left&right panel (B&C) . NOTE: PLEASE PUT THE DRAWER WITH CLEAN STICKER AS THE TOP ONE .
-
Page 6: How To Lock
FURNITURE TIPPING DETERRENT HARDWARE HOW TO LOCK Tipping furniture may injure young children. Use of this tipping restraint hardware is highly recommended. When properly instated this hardware could provide protection against the unexpected tipping of furniture due to improper use. WARNING This hardware is only a deterrent.Adult supervision is the only proper deterrent to prevent improper use of any potentially hazardous product.
