Equipotential Bonding - TP-Link JetStream T1500G-10MPS Installation Manual

Note: The grounding bar and the ground cable are not provided with our product. If
needed, please self purchase them.
Connecting to the Ground via the Power Supply
■
If the device is installed in the normal environment, the device can be grounded via
the PE (Protecting Earth) cable of the AC power supply as shown in the following fig-
ure.
Note:
The figure is to illustrate the application and principle. The power plug you get
■
from the package and the socket in your situation will comply with the regulation
in your country, so they may differ from the figure above.
If you intend to connect the device to the ground via the PE (Protecting Earth)
■
cable of AC power cord, please make sure the PE (Protecting Earth) cable in the
electrical outlet is well grounded in advance.
3.3

Equipotential Bonding

Equipotential Bonding is the practice of intentionally electrically connecting all
earthed systems to the same grounding grid or connecting the grounding grids of
all the earthed systems together through the ground or overground metal so as to
create an earthed equipotential zone. When lightning occurs, the high voltage pro-
duced by lightning current in all systems will meanwhile exist in their ground cables,
and thus all ground cables have the same electrical potential and basically eliminate
the electric strikes between the systems.

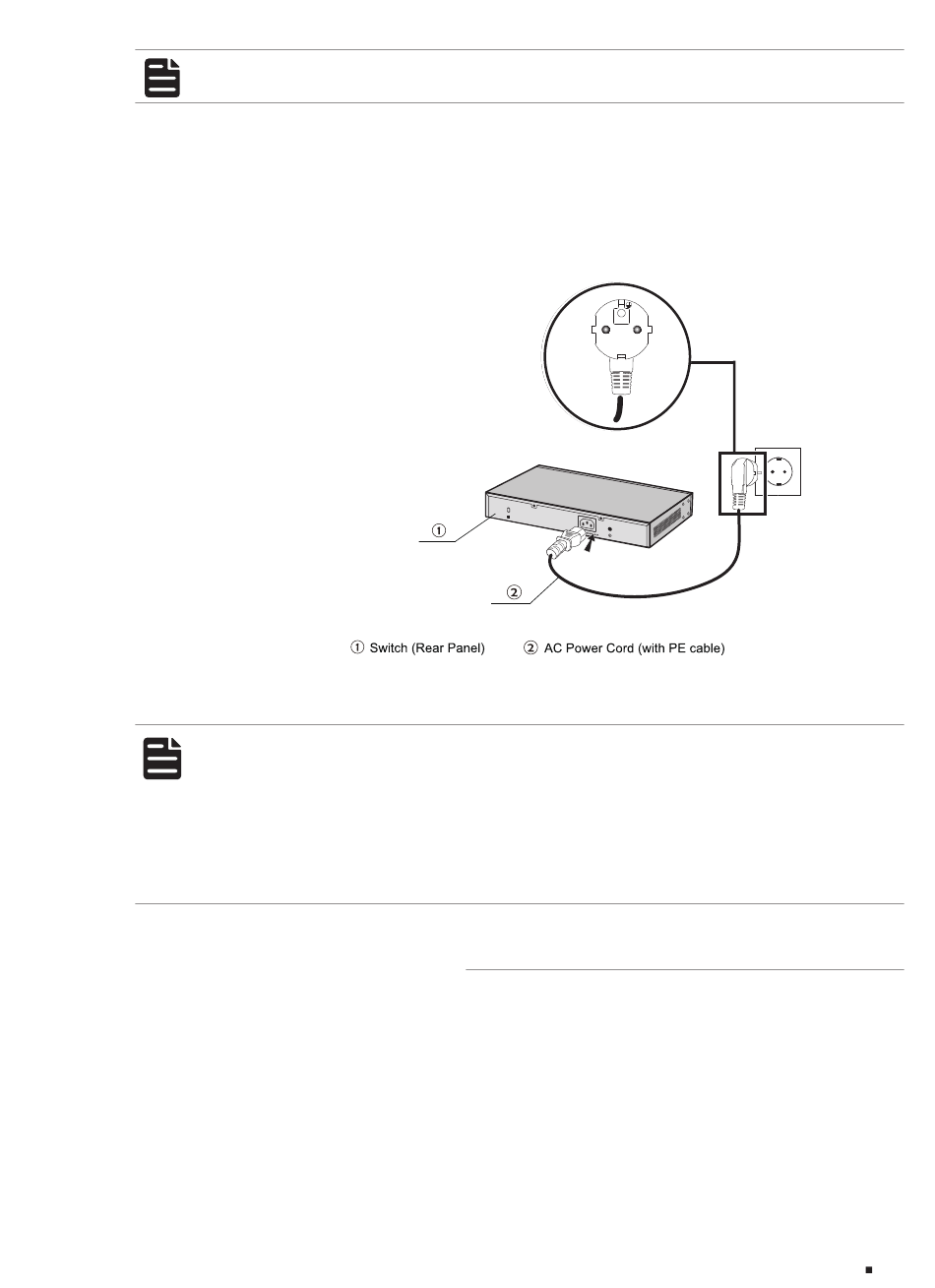

Figure 3-2 Connecting to the Ground
Smart PoE+ Switch
