Summary of Contents for Curtis iP1490

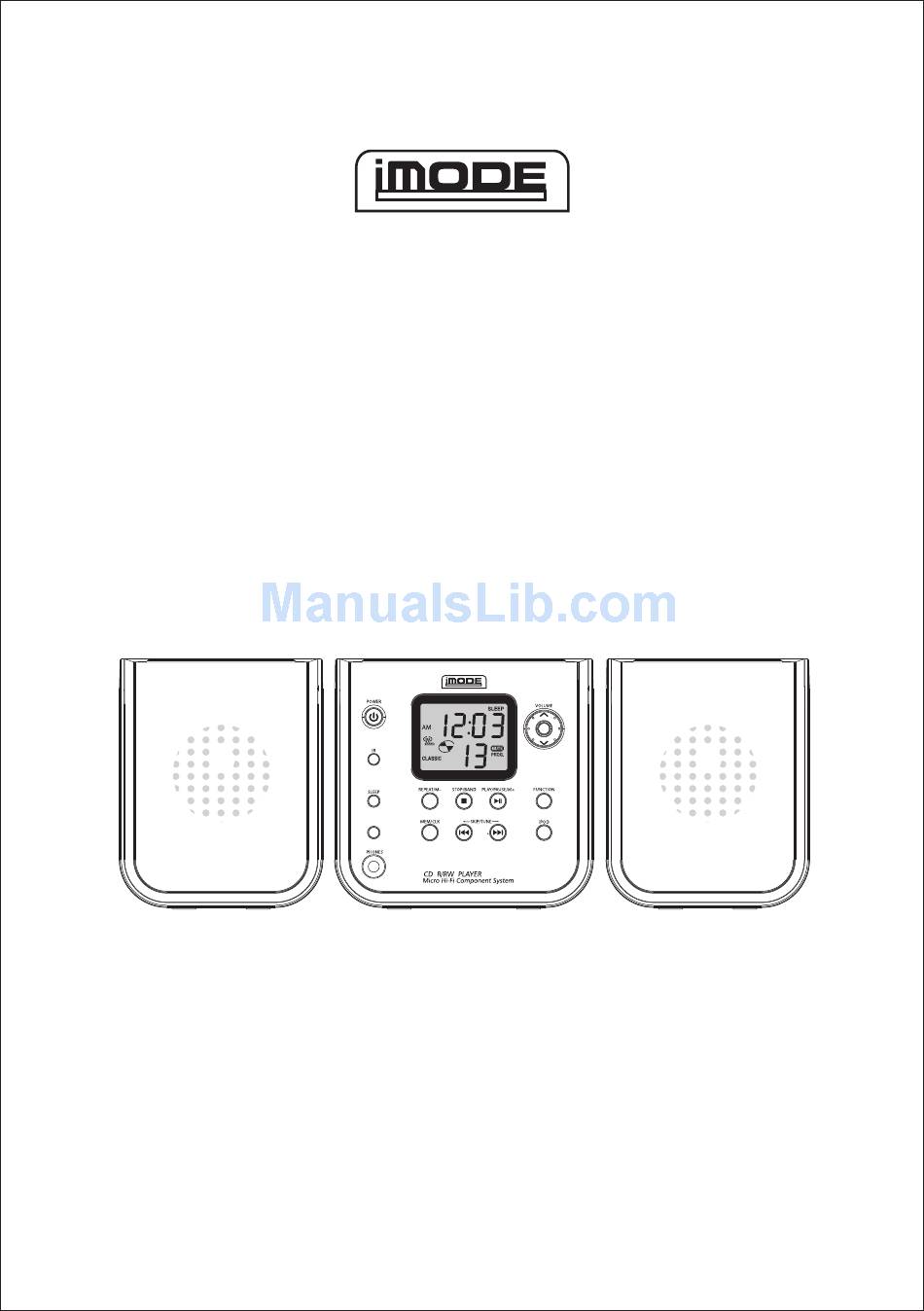

- Page 1 MODEL NO. iP1490 IPOD RADIO CD MICRO SYSTEM OWNER'S MANUAL PLEASE READ BEFORE OPERATING THIS EQUIPMENT...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVIC- ING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral trian- gle is intended to alert the user to the presence of uninsulated dan-... - Page 3 SAFETY INSTRUCTIONS Before using the unit, be sure to read all operat- ing instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
- Page 4 SAFETY INSTRUCTIONS voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product. 17. OUTDOOR ANTENNA GROUNDING If an outside antenna is connected to the prod- uct, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.
-
Page 5: Connecting The Speakers
Power Sources This portable audio system is designed to operate on either 120V AC, 60Hz house current. AC Operation Unwind the AC cord and extend it to its full length. Insert the small end of the AC cord into the AC socket on the rear of the unit. -
Page 6: Location Of Controls
LOCATION OF CONTROLS MAIN UNIT: 1. POWER BUTTON 2. IR WINDOW 3. SLEEP BUTTON 4. EQ BUTTON 5. HEADPHONE JACK 6. REPEAT/M– BUTTON 7. MEM./CLK BUTTON 8. STOP/BAND BUTTON 9. SKIP/TUNE DN BUTTON 10. PLAY/PAUSE/M+ BUTTON 8 10 9 11 11. -
Page 7: Function Button
LOCATION OF REMOTE CONTROLS REMOTE: 1. FUNCTION BUTTON 2. POWER BUTTON 3. STOP/BAND BUTTON 4. ALBUM UP BUTTON 5. MENU/PROG/MEM/ CLK SET BUTTON 6. ALBUM DN BUTTON 7. SKIP DN BUTTON 8. SHUFFLE BUTTON 9. REPEAT/M– BUTTON 10. SLEEP BUTTON 11. -
Page 8: Power Sources
BATTERIES NOTE: The button cell battery contains mercury, don't put in the trash. Recycle or dispose as hazardous waste. NOTE: You may need to remove a protective covering from the remote's battery compartment before using the remote control. POWER SOURCES (FOR REMOTE CONTROL) - Page 9 OPERATING INSTRUCTIONS Setting up your micro system Checking FM/AM Radio reception Your micro system has a built-in antenna for AM radio. To improve reception, you need to rotate your unit. Unwind the external FM wire antenna and extend it to its full length to improve FM reception.
- Page 10 OPERATING INSTRUCTIONS Using your radio Plug the AC Power cord into a power outlet. Press the POWER button on the main unit or remote control to turn the system "On". If necessary, press the FUNCTION button to select the Radio mode and the frequency will be shown in display.
- Page 11 OPERATING INSTRUCTIONS Programming radio station presets: You can program as many as 10 FM and 10 AM radio station presets. After you program a station, you can tune to the station by pressing one of the SKIP/TUNE Buttons. To program a radio station: Press the POWER Button to turn on your radio.
- Page 12 OPERATING INSTRUCTIONS To tune to a radio station preset: Press the POWER Button to turn on your radio. Press the FUNCTION button one or more times until TUNER appears on the display. Press the STOP/BAND Button to select AM or FM. Press the M–...
- Page 13 OPERATING INSTRUCTIONS To set up a CD program (program up to 20 tracks): Press the POWER Button to turn on your unit, then Press the FUNCTION Button one or more times until CD track "--" appears on the display. Insert a CD into the CD compartment. If the CD starts playing, press the STOP Button.
- Page 14 OPERATING INSTRUCTIONS To active Timer function: In power o ff mode, you depress the TIMER button 2 seconds, the "TIMER" appear on the display, that the unit will auto on at "TIMER on" time and will auto off at "TIMER off" time If you depress the TIMER button again, the TIMER function will be cancel.
- Page 15 OPERATING INSTRUCTIONS ® iPod Inserts Your unit comes with removable inserts* to ensure your iPod the top of the unit. Model iPod mini iPod (fourth generation) iPod with color display iPod nano iPod with video (fifth generation) To Place an Insert Select the insert for your iPod ®...
- Page 16 OPERATING INSTRUCTIONS Video Out You will need a television or other video device that has a composite video input. ® Securely dock the iPod Connect the yellow RCA cable (Not Included) into the rear video out jack on the unit. Connect the other end of the yellow RCA cable to the video device.
-
Page 17: Maintenance
OPERATING INSTRUCTIONS Stereo Headphone Jack You may connect stereo headphones (not included) to the Headphone jack on the front panel of this system for private listening without disturbing others. When headphones are connected the speakers are automatically shut off. IMPORTANT: Before you connect your headphones, set the VOLUME control of this system to a low level. - Page 18 OPERATING INSTRUCTIONS • This unit is designed to play only discs bearing the identification logo as shown here. Other discs may not conform to the CD standard and may not play properly. • Discs should be stored in their cases after each use to avoid damage. •...
-
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM No sound is heard. Power is not on. VOLUME Control is set to minimum. Mute is on. Station has not been No sound is heard. tuned properly. FM reception is weak. Wrong function is selected. All or part of the CD CD is inserted will not play. -
Page 20: Specification
TROUBLESHOOTING GUIDE PROBLEM ® iPod does not Using no or wrong iPod dock properly ® iPod didnít install properly. ® ® iPod does not iPod is not installed properly. respond to the unit ® iPod is locked up. ® ® iPod didnít iPod...
