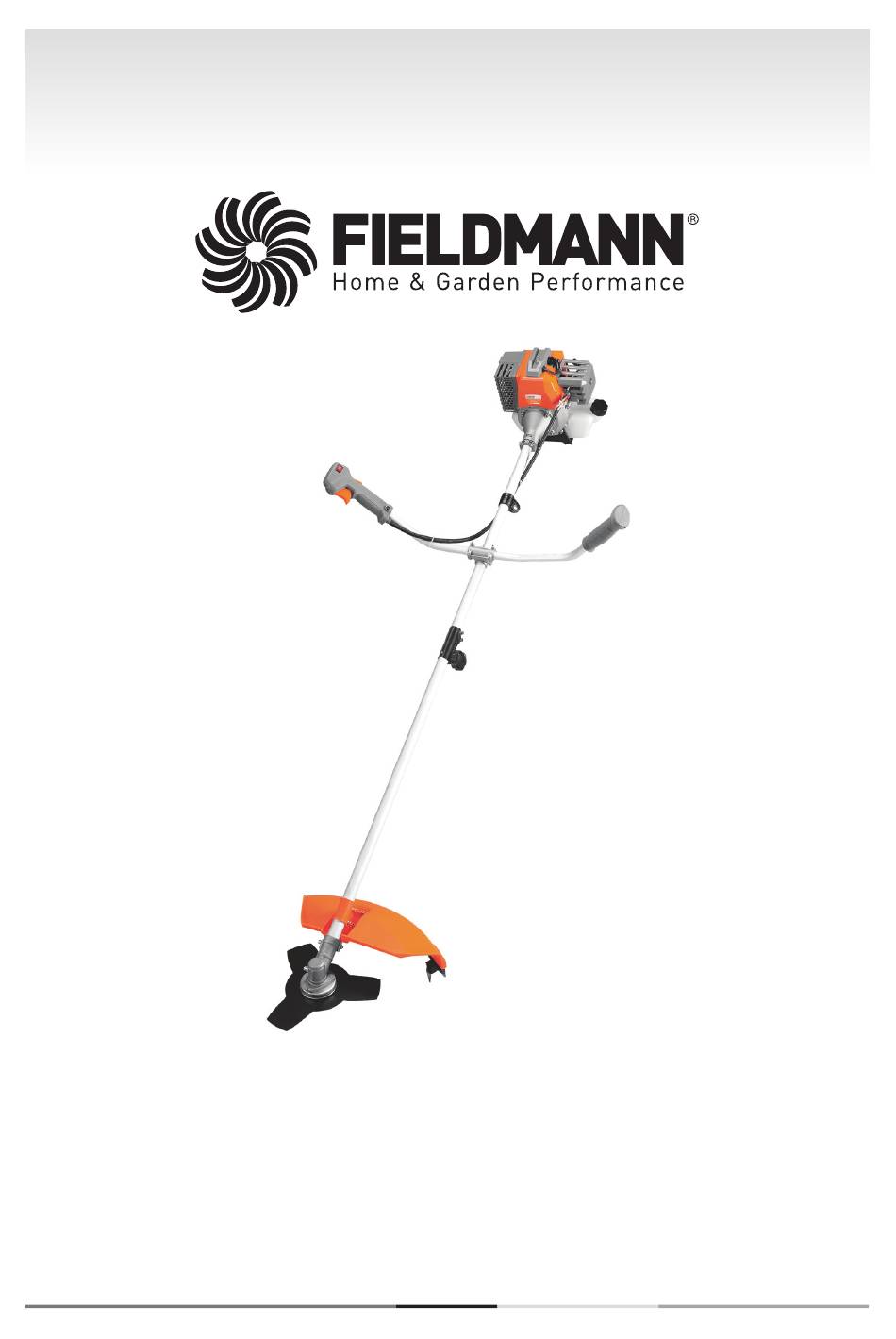

- Page 1 FZS 3020-B...
- Page 2 English ....................................3–24 Čeština .....................................25–46 Slovenčina ..................................47–68 Magyarul ..................................69–90 Polski ....................................91–112 Slovenščina ................................113–136 FZS 3020-B...
-
Page 3: Table Of Contents
Table of Contents Petrol brush cutter USER'S MANUAL Thank you for purchasing this petrol brush cutter. Before you start using it, please carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety information .......................... - Page 4 Table of Contents 10. MAINTENANCE AND STORAGE ..........................18 Maintaining the machine .............................18 Servicing ..................................18 Warranty does not cover: ............................18 Storage ....................................18 11. WHAT TO DO "WHEN"...............................19 12. DISPOSAL ..................................21 13. DECLARATION OF CONFORMITY ........................22 14. TECHNICAL SPECIFICATIONS ..........................23 FZS 3020-B...
-
Page 5: General Safety Instructions
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. -
Page 6: Explanation Of Instruction Labels On The Machine
2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Carefully read the manual before use While working use protective aids General danger warnings! Caution, recoil! Keep other persons (particularly children) and animals out of range, at least 15 m from the working area. FZS 3020-B... -
Page 7: Operating Instructions
Operating instructions 3. OPERATING INSTRUCTIONS Safety instructions Read carefully! Always wear a safety helmet, safety gloves, protective clothing (cut-resistant trousers) and safety footwear. Keep the machine out of children’s reach. Never run the engine if there is only petrol in the petrol tank. Never pour in fuel if the engine is running or if it is still hot. -
Page 8: Safety Instructions Cutting Tools
The cutting tool must be fi tted with an appropriate guard. ATTENTION! If instructions are not followed, there is a danger of a serious or even fatal Injury to persons! Acquaint all persons working with this machine with the operation of the machine and the safety instructions. FZS 3020-B... -

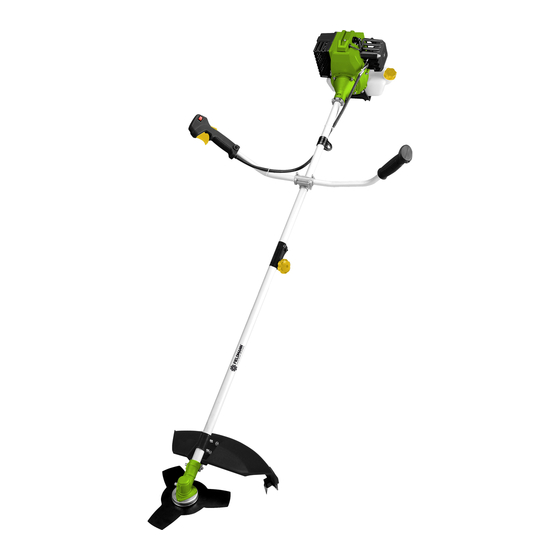

Page 9: Description Of The Machine
Description of the machine 4. DESCRIPTION OF THE MACHINE Metal three tooth blade / 8. Power switch 9. Throttle safety switch string trimmer head Trimmer line cutter 10. Engine Protective safety guard 11. Fuel tank cap Split shaft coupler 12. Fuel tank Handle mount 13. -
Page 10: Assembly
In this way, everybody can select the ideal comfortable working position. After selecting the ideal working position, tighten the screws. Fasten the control cable to the shaft using the supplied draw bands. Fig. 3 Bolt Fig. 5 Fig. 4 FZS 3020-B... -
Page 11: Installing The String Trimmer Head
Assembly Installing the string trimmer head Hex key 4 mm Lock the shaft in place by inserting the hex key Shaft (see fi g. 6). To achieve this, it is necessary to align the hole in the protective guard with the hole in the shaft and insert the hex key. -
Page 12: Installing The Metal Three Tooth Blade
For this type of two-stroke engine a mixture of lead-free petrol and two-stroke engine oil is used at a ratio of 25 : 1. ATTENTION! A fuel mix that is mixed at a ratio other than 25 : 1 may damage the engine. Make sure that this fuel mix is mixed correctly. FZS 3020-B... -
Page 13: Storing Fuel
Mixing the fuel mix | Preparing for operation | Starting the brush cutter When mixing petrol with two-stroke engine oil, use only petrol containing NO ETHANOL or METHANOL (types of alcohols). Use quality petrol with an octane number of 95 or higher. This will help prevent possible damage to the fuel system and other parts of the engine. -
Page 14: Procedures For Starting And Stopping The Engine
Choke control lever Fuel primer Starting a warm engine bulb 1. Set the power switch to the "START" position. Fig. 9 2. Pull on the handle of the starting cord until the engine starts up. DO NOT USE THE CHOKE! FZS 3020-B... -
Page 15: Controlling The Speed Of The String Trimmer Head / Metal Three Tooth Blade
Starting the brush cutter | Cutting ATTENTION! In the event that the fuel in the fuel tank was completely used up, after pouring in fuel, repeat the steps for STARTING A COLD ENGINE. Controlling the speed of the string trimmer head / metal three tooth blade To increase speed, fi... -
Page 16: Cutting With The Nylon String Trimmer Head
The protective guard on this tool cannot stop objects that ricochet off hard surfaces. WARNING Do not trim in places where there are wires and wire mesh. Use protective aids. Do not trim in locations where you cannot see what the trimmer is trimming. FZS 3020-B... -
Page 17: Cutting Using The Blade
Cutting CUTTING USING THE BLADE Cutting weeds This is cutting performed by a pendular movement of the blade in an arch shape. In this way you can quickly clear a large area of dense grass and weed. Brush cutting should be used for cutting large and tough weeds or woody vegetation. -
Page 18: Maintenance And Storage
Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZS 3020-B... -
Page 19: What To Do "When
What to do "when"... 11. WHAT TO DO “WHEN”... The engine will not start Possible cause Remedy 1. Check the fuel. There is no fuel in the fuel tank or Add fuel. carburettor. The fuel contains water. Incorrect ratio of the fuel mix. Drain the fuel tank and carburettor. - Page 20 Clean or replace the air fi lter insert. 4. Take the motor to Clogged air bleed valve. Replace or repair the faulty parts. a qualifi ed service centre Clogged fuel fi lter, carburettor defect, or to the vendor. starting defect, clogged valves, etc. FZS 3020-B...
-
Page 21: Disposal
Disposal 12. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The machine and its accessories are manufactured from various materials, e.g. metal and plastic. -
Page 22: Declaration Of Conformity
Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, tel.:323204111, hereby declares, that the Fieldmann FZS 3020-B Petrol Brush Cutter (year of manufacture is indicated on the rating label and is followed by the serial number of the machine, meets the directives COUNCIL DIRECTIVE:... -
Page 23: Technical Specifications
Technical specifi cations 14. TECHNICAL SPECIFICATIONS Model......................................FZS 3020-B Displacement ....................................32.5 cm Maximum engine power................................1. 1 5 kW Length of shaft ....................................1500 mm Type of motor ................................2-stroke air cooled Idling speed....................................3,000 rpm Recommended maximum speed without load .......................7000 rpm Trimmer line diameter ................................... - Page 24 Notes FZS 3020-B...
