Summary of Contents for Fieldmann FZS 5004-B

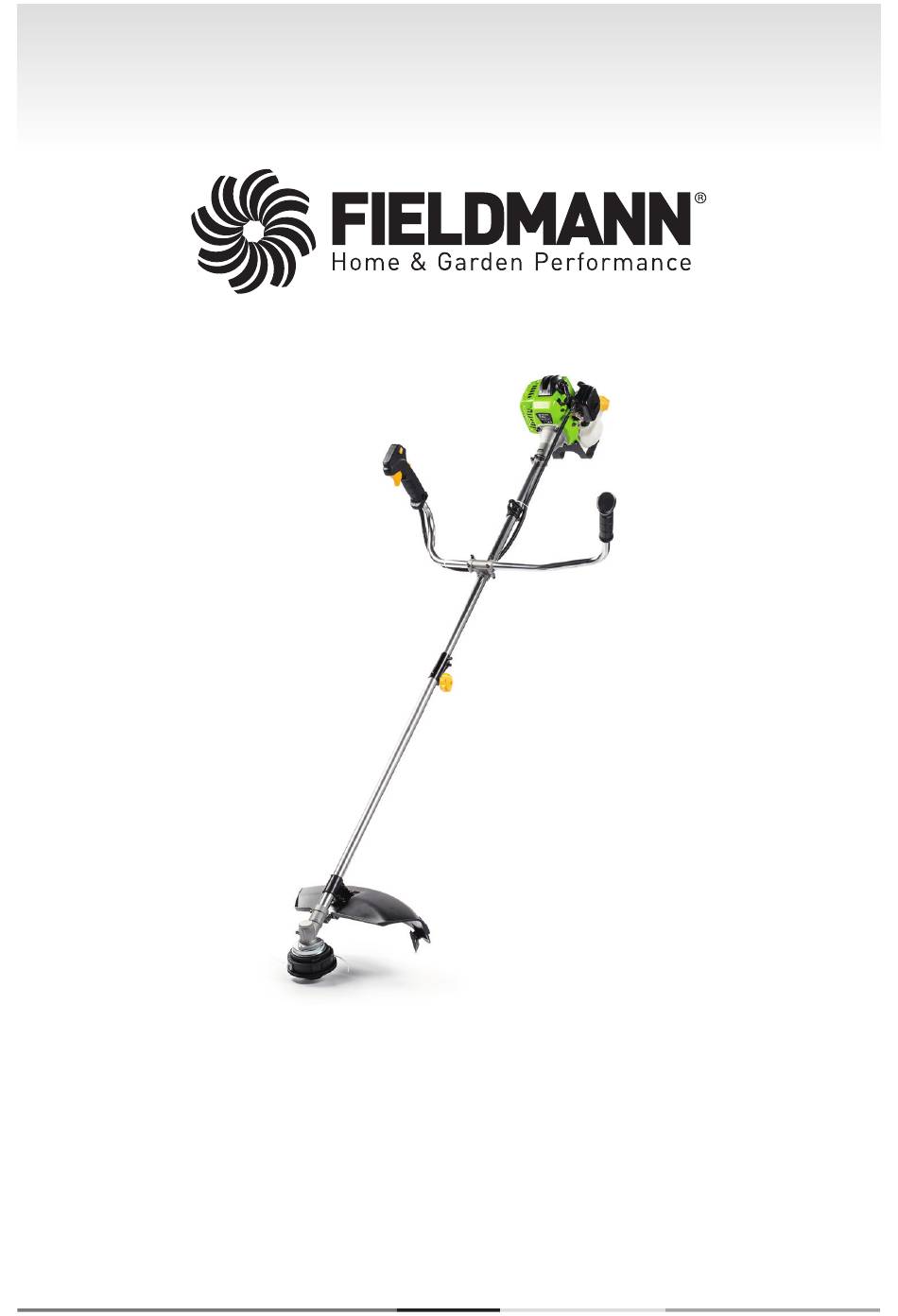

  • Page 1 FZS 5004-B...
  • Page 2 English ....................................3–24 Čeština .....................................25–46 Slovenčina ..................................47–68 Magyarul ..................................69–88 Polski ....................................89–108 Slovenščina ................................109–128 FZS 3020-B...

  • Page 3: Table Of Contents

    Table of Contents Petrol brush cutter USER'S MANUAL Thank you for purchasing this petrol brush cutter. Before you start using it, please carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety information ..........................
  • Page 4 Table of Contents 10. MAINTENANCE AND STORAGE ..........................18 Maintaining the machine .............................18 Servicing ..................................18 Warranty does not cover: ............................18 Storage ....................................18 11. WHAT TO DO "WHEN"...............................19 12. DISPOSAL ..................................21 13. DECLARATION OF CONFORMITY ........................22 14. TECHNICAL SPECIFICATIONS ..........................23 FZS 3020-B...

  • Page 5: General Safety Instructions

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions.

  • Page 6: Explanation Of Instruction Labels On The Machine

    Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Carefully read the manual before use While working use protective aids General danger warnings! Caution, recoil! Keep other persons (particularly children) and animals out of range, at least 15 m from the working area.

  • Page 7: Operating Instructions

    Operating instructions 3. OPERATING INSTRUCTIONS Safety instructions Read carefully! Always wear a safety helmet, safety gloves, protective clothing (cut-resistant trousers) and safety footwear. Keep the machine out of children’s reach. Never run the engine if there is only petrol in the petrol tank. Never pour in fuel if the engine is running or if it is still hot.

  • Page 8: Safety Instructions Cutting Tools

    Operating instructions Safety instructions Cutting tools When installing the cutting tool, check the condition of the blade. If it is damaged (cracked, bent, broken off, etc.), replace it. After installing the blade, check again that the hole in the blade is level with the arm of the blade tang. Spin the blade, check again that the blade has no tendency to rotate irregularly.

  • Page 9: Description Of The Machine

    Description of the machine 4. DESCRIPTION OF THE MACHINE 1. Metal three tooth blade / 8. Power switch semi-automatic string trimmer head 9. Throttle safety switch 2. Trimmer line cutter 10. Engine 3. Protective safety guard 11. Fuel tank cap 4.

  • Page 10: Assembly

    Assembly 5. ASSEMBLY Connect the shaft of the brush cutter (Fig. 2). Insert the bottom part of the shaft (Fig 2, point 1) into the coupling (Fig 2, point 2), which is a part of the top part of the shaft. The locking pin (Fig 2, point 3) must fit into the hole (Fig 2, point 4).

  • Page 11: Installing The String Trimmer Head

    Assembly Installing the string trimmer head Hex key 4 mm Lock the shaft in place by inserting the hex key Shaft (see fig. 6). To achieve this, it is necessary to align the hole in the protective guard with the hole in the shaft and insert the hex key.

  • Page 12: Installing The Metal Three Tooth Blade

    Assembly | Mixing the fuel mix Installing the metal three tooth blade Lock the shaft in place by inserting the included Hex key 4 mm 4mm hex key (see Fig. 7). To achieve this, it is Shaft necessary to align the hole in the protective guard with the hole in the shaft and insert the hex key.

  • Page 13: Storing Fuel

    Mixing the fuel mix | Preparing for operation | Starting the brush cutter When mixing petrol with two-stroke engine oil, use only petrol containing NO ETHANOL or METHANOL (types of alcohols). Use quality petrol with an octane number of 95 or higher. This will help prevent possible damage to the fuel system and other parts of the engine.

  • Page 14: Procedures For Starting And Stopping The Engine

    Starting the brush cutter ATTENTION: Hold the brush cutter firmly with both hands. Always stand so that your body is on the left of the shaft tube. Never hold the handle with crossed arms. These instructions also apply to left-handers. ATTENTION: Exposure to vibrations may damage the health of persons that suffer from circulatory or nerve system problems.

  • Page 15: Controlling The Speed Of The String Trimmer Head / Metal Three Tooth Blade

    Starting the brush cutter | Cutting ATTENTION! In the event that the fuel in the fuel tank was completely used up, after pouring in fuel, repeat the steps for STARTING A COLD ENGINE. Controlling the speed of the string trimmer head / metal three tooth blade To increase speed, first use the palm of your hand to push down the throttle safety switch and then use your finger to pull on the throttle trigger (see fig.

  • Page 16: Cutting With The Nylon String Trimmer Head

    Cutting CUTTING WITH THE NYLON STRING TRIMMER HEAD The string trimmer head rotates CLOCKWISE. The trimmer line is extended out semi-automatically. While trimming, simply gently tap the head on the ground, which will push down the button on the underside of the head and the string trimmer line will slide out.

  • Page 17: Cutting Using The Blade

    Cutting CUTTING USING THE BLADE Cutting weeds This is cutting performed by a pendular movement of the blade in an arch shape. In this way you can quickly clear a large area of dense grass and weed. Brush cutting should be used for cutting large and tough weeds or woody vegetation.

  • Page 18: Maintenance And Storage

    Maintenance and storage 10. MAINTENANCE AND STORAGE Maintaining the machine Before every use: – Check that all nuts and bolts are tightened. – Check that no fuel is leaking from the fuel tank. – Lubricate the gearbox with grease. After every 20 hours of operation (For this purpose we recommend you contact an authorised service centre): –...

  • Page 19: What To Do "When

    What to do "when"... 11. WHAT TO DO “WHEN”... The engine will not start Possible cause Remedy 1. Check the fuel. There is no fuel in the fuel tank or Add fuel. carburettor. The fuel contains water. Incorrect ratio of the fuel mix. Drain the fuel tank and carburettor.
  • Page 20 What to do "when"... The motor starts Possible cause Remedy and dies immediately 1. Check the fuel. Fuel ran out. Add fuel. The fuel contains water. Drain the fuel tank and carburettor. Fill the fuel tank with new fuel. Incorrect ratio of the fuel mix. 2.

  • Page 21: Disposal

    Disposal 12. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The machine and its accessories are manufactured from various materials, e.g. metal and plastic.

  • Page 22: Declaration Of Conformity

    Declaration of Conformity 13. DECLARATION OF CONFORMITY FZS 3020-B...

  • Page 23: Technical Specifications

    Technical specifications 14. TECHNICAL SPECIFICATIONS Model......................................FZS 5004-B Displacement ....................................52 cm Maximum engine power................................1.45 kW Type of motor ................................2-stroke air cooled Idling speed....................................3,000 rpm Recommended maximum speed without load .......................7500 rpm Trimmer line diameter ................................... 2.4 mm Spark plug ......................................L6 (LD)
