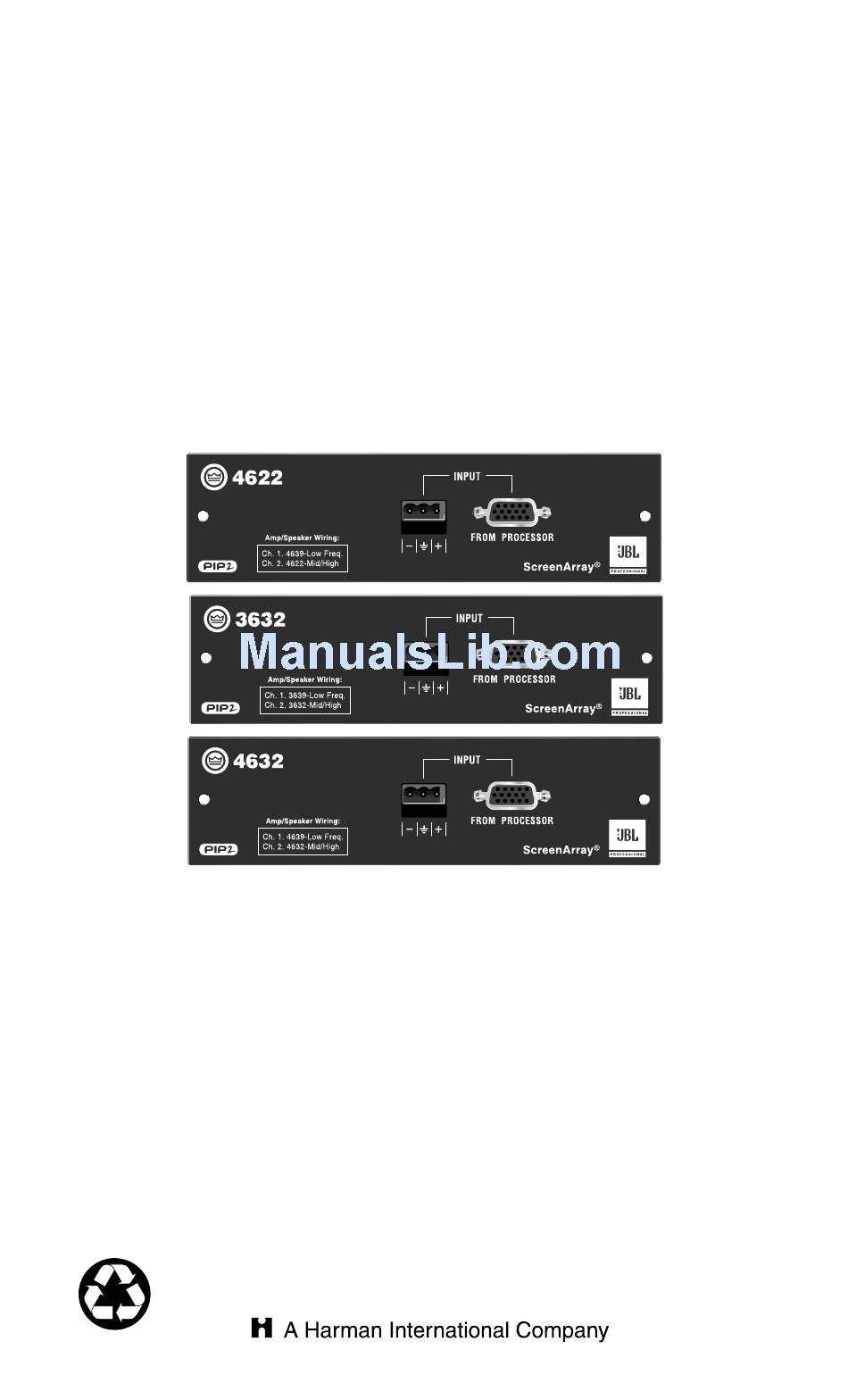

  • Page 1 ® PIP-4622, PIP-3632, PIP-4632 OPERATION MANUAL © 2003 by Crown Audio, Inc., P.O. Box 1000, Elkhart, IN 46515-1000 U.S.A. Telephone: 574-294-8000. Fax: 574-294-8329. Trademark Notice: PIP and PIP2 are trademarks; Crown and Amcron are registered trademarks of Crown International. Other trademarks are the property of their respective owners.
  • Page 2 ScreenArray PIP Modules ® Page 2 Operation Manual...
  • Page 3 Screen Array system, and the PIP- 4632 is designed for use with model 4632 Screen Array system. The ScreenArray PIP modules in- stall into the back of Crown PIP2- Operation Manual compatible amplifiers*, saving rack space and simplifying system wiring.

  • Page 4: Installation

    2 Installation 2.1 Prepare the Amplifier 1. Turn down the level controls (full counterclockwise) and turn off the amplifier. 2. Disconnect the amplifier’s power cord. 3. Remove the existing amplifier back panel (two screws). This may involve disconnecting the from a PIP2 input adapter. If a PIP2 input adapter is already present, remove the ribbon cables from the adapter.
  • Page 5 ScreenArray PIP Modules ® Important: Be careful when attaching the ribbon cable to the connector that the cable is properly seated before applying pressure to the connector. Forcing the cable onto the connector could cause the keying tabs, which ensure proper pin alignment, to break.
  • Page 6 2.3 Choice of Input Connector and Pad The HD15 connector on Screen Array PIPs provides input signal and amplifier output monitoring with popular cinema monitor products such as the USL CM680. Input and output sensitivity for the USL CM680 and similar products is 3Vrms. This relatively high sensitivity coupled with the gain found in ScreenArray PIPs limits headroom.
  • Page 7 ScreenArray PIP Modules ® Figure 2.2. Jumper Settings for 6.6 dB Attenuation and 0 dB Attenuation HD15 CONNECTOR 3Vrms OUT AT MAX. POWER REMOVABLE TERMINAL BLOCK CONNECTOR Figure 2.3. ScreenArray PIP Block Diagram Operation Manual ATTENUATOR ATTENUATOR 6.6 dB OR 0 dB DIFFERENTIAL TO SINGLE- ENDED CONVERTER...

  • Page 8: System Setup

    HD15 input. Note: The amplifier should be placed in Stereo (Dual) mode. From USL CM680 OPTIONAL INPUT PATHS From Cinema Processor Figure 3.2 Stereo Configuration Using a Crown PIP-compatible Amplifier Page 8 ScreenArray and the PIP-4622 Module PIP Modules ®...

  • Page 9: Specifications

    ScreenArray PIP Modules ® 3.2 Specifications Frequency Response: See Figure 3.3. Signal to Noise Ratio: 90 dB, A weighted. Input Impedance: 20 k ohms balanced, 10 k ohms unbalanced. Figure 3.3 PIP-4622 Frequency Response Operation Manual Connectors Input: Electronically balanced, 3-position removable terminal block.
  • Page 10 Note: The amplifier should be placed in Stereo (Dual) mode. From USL CM680 OPTIONAL INPUT PATHS From Cinema Processor Figure 4.2 Stereo Configuration Using a Crown PIP-compatible Amplifier Page 10 ScreenArray Channel 2 Output and the PIP-3632 Module PIP Modules ®...
  • Page 11 Frequency Response: See Figure 4.3. Signal to Noise Ratio: 90 dB, A weighted. Input Impedance: 20 k ohms balanced, 10 k ohms unbalanced. Figure 4.3 PIP-3632 Frequency Response Operation Manual Connectors Input: Electronically balanced, 3-position removable terminal block. Page 11...
  • Page 12 Note: The amplifier should be placed in Stereo (Dual) mode. From USL CM680 OPTIONAL INPUT PATHS From Cinema Processor Figure 5.2 Stereo Configuration Using a Crown PIP-compatible Amplifier Page 12 ScreenArray Channel 2 Output and the PIP-4632 Module PIP Modules ®...
  • Page 13 ScreenArray PIP Modules ® 5.2 Specifications Frequency Response: See Figure 5.3. Signal to Noise Ratio: 90 dB, A weighted. Input Impedance: 20 k ohms balanced, 10 k ohms unbalanced. Figure 5.3 PIP-4632 Frequency Response Operation Manual Connectors Input: Electronically balanced, 3-position removable terminal block.
  • Page 14 USL SW to top CTs 2000 Page 14 ScreenArray PIP Modules ® Dolby Cinema Processor USL CM680 Monitor/Crossover CTs 1200 with PIP-3632 CTs 1200 with PIP-3632 CTs 1200 with PIP-3632 CTs 2000 with PIP-USL CTs 2000 with PIP-USL CTs 2000...

  • Page 15: Worldwide Service

    Service must be done at the Crown factory. Contact your local distributor for more information. 6.2 US and Canada Service Service must be done at the Crown factory (see Sections 6.3 and 6.3.1). It is important that you have your copy of the bill of sale as your proof of purchase.
  • Page 16 If you don’t have the original carton, you may obtain a product service foam-in-place shipping pack from Crown Factory Service at the number listed below. For non-warranty service, you may also provide your own shipping pack, however we still recommend using a Crown supplied shipping container. Minimum recommended requirements for materials are as follows: 275 P.S.I.

  • Page 17: Warranty

    Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the “warranty period”) that the new Crown product is free of defects in materials and workmanship.
  • Page 18 ITEMS EXCLUDED FROM THIS CROWN WARRANTY This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts.
  • Page 19 Crown Factory Service Information Shipping Address: Crown Factory Service, 1718 W. Mishawaka Rd., Elkhart, IN U.S.A. 46517 Phone: 1-800-342-6939 or 1-574-294-8200 Fax: 1-574-294-8124 Owner’s Name: _________________________________________________ Shipping Address: ______________________________________________ Phone Number: ________________ Fax Number: ____________________ Email: __________________ Model: ____________ Serial Number: _____________________________...
