- Page 1 PHCZ6511 / KMG13169C / PHCG4.1ZpZtC INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
DEAR CUSTOMER, Outstanding user-friendliness and excellent efficiency make cooktops a perfect choice. Please read this manual thoroughly before you start to use the appliance to avoid any trouble. The cooktop’s safety and functionality was checked at the factory test stations prior to dispatch. Please read this manual carefully before you start to use this cooktop. - Page 3 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household gas hobs PHCZ6511 / KMG13169C PHCG4.1ZpZtC Model identifier 1106076...
-
Page 4: Environment
ENVIRONMENT UNPACKING DISPOSAL OF THE APPLIANCE Old appliances should not simply be di- During transportation, protective packa- sposed of with normal household waste, ging was used to protect the appliance but should be delivered to a collection and against any damage. After unpacking, recycling centre for electric and electronic please dispose of all elements of packa- equipment. -
Page 5: Safety Instructions
ENVIRONMENT HOW TO SAVE ENERGY Using energy in a responsible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: ■ Use appropriate cookware: flat and thick bottom pots and pans will reduce power consumption by up to one third. - Page 6 SAFETY INSTRUCTIONS overs cause smoking, and greasy spill-overs may ignite presenting a fire risk. • Execute caution when the food is boiling. Boil-overs may flood the burner. • Should a malfunction occur, stop using the appliance. Do not start to use your hob before a Gas Safe engineer has repaired it.
-
Page 7: Guide To The Cooktop

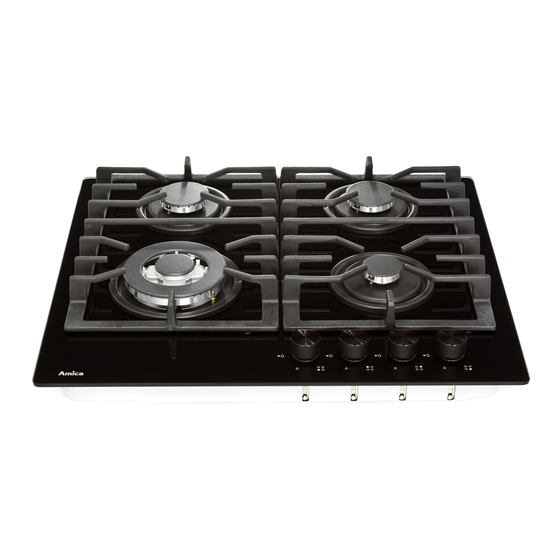

GUIDE TO THE COOKTOP PHCZ6511 / KMG13169C PHCG4.1ZpZtC 1,2,3 - surface burners 4 - surface burner knobs 5 - grid TECHNICAL DATA heigh 98 mm depth 520 mm width 600 mm weight of the cooker 12,5 kg The cooker is equipped with burners:... -
Page 8: Installation
GUIDE TO THE COOKTOP Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards. Repairs and service by unqualified persons could be dangerous and the manufacturer will not be held responsible. - Page 9 INSTALLATION Notes for the technician Instalator powinien: l The fitter should: l Bear a valid certificate of gas permit l Have studied the contents of the appliance’s type plate containing the suitable type of gas. Compare the data with the characteristics of the gas available in the network. l Check the following: •...
-
Page 10: Adjustment Of The Reduced Valve Flow
INSTALLATION NOTE The cooktops delivered by the supplier come with the burners which are suitable for burning the type of gas which is quoted in the type plate and in the guarantee certificate. The type plate is fitted at the bottom panel of the appliance. -
Page 11: Operation
OPERATION Flame selection At the burners adjusted correctly, the flames should be light blue, and the inner cone should be clearly visible. The size of flame depends on the position of the related burner control knob. Burner OFF Burner ON, large flame - Burner ON, small flame (saving mode) See also fig. - Page 12 OPERATION Using cooktops with control knob ignition (Zp) l Press the selected control knob and turn anti-clockwise into Burner ON large flame position. l Hold depressed until gas is on fire l Release the knob and set the required flame size. Using cooktops with leak protection (Zt) spark igniter protection...
-
Page 13: Cleaning And Routine Maintenance
CLEANING AND ROUTINE MAINTENANCE Daily cleaning and proper maintenance have crucial impact on the durability of your ceramic plate. Clean the ceramic plate observing the same rules as for glass. Never use abrasive or aggressive cleaning agents, scrubbing powders or scratching sponges. -
Page 14: Troubleshooting
TROUBLESHOOTING In each case, proceed as follows: l Turn the burners off l Disconnect power supply l Report for repair l The user can fix some minor malfunctions himself, according to the guidance given in the tables below. Please check the information below before contacting the service department. PROBLEM CAUSE REMEDIES... - Page 16 Amica Wronki S.A. ul.Mickiewicza 52 64-510 Wronki tel. 67 25 46 100 fax 67 25 40 320 www.amica.com.pl IO-TGC-0030/4 (04.2015)
