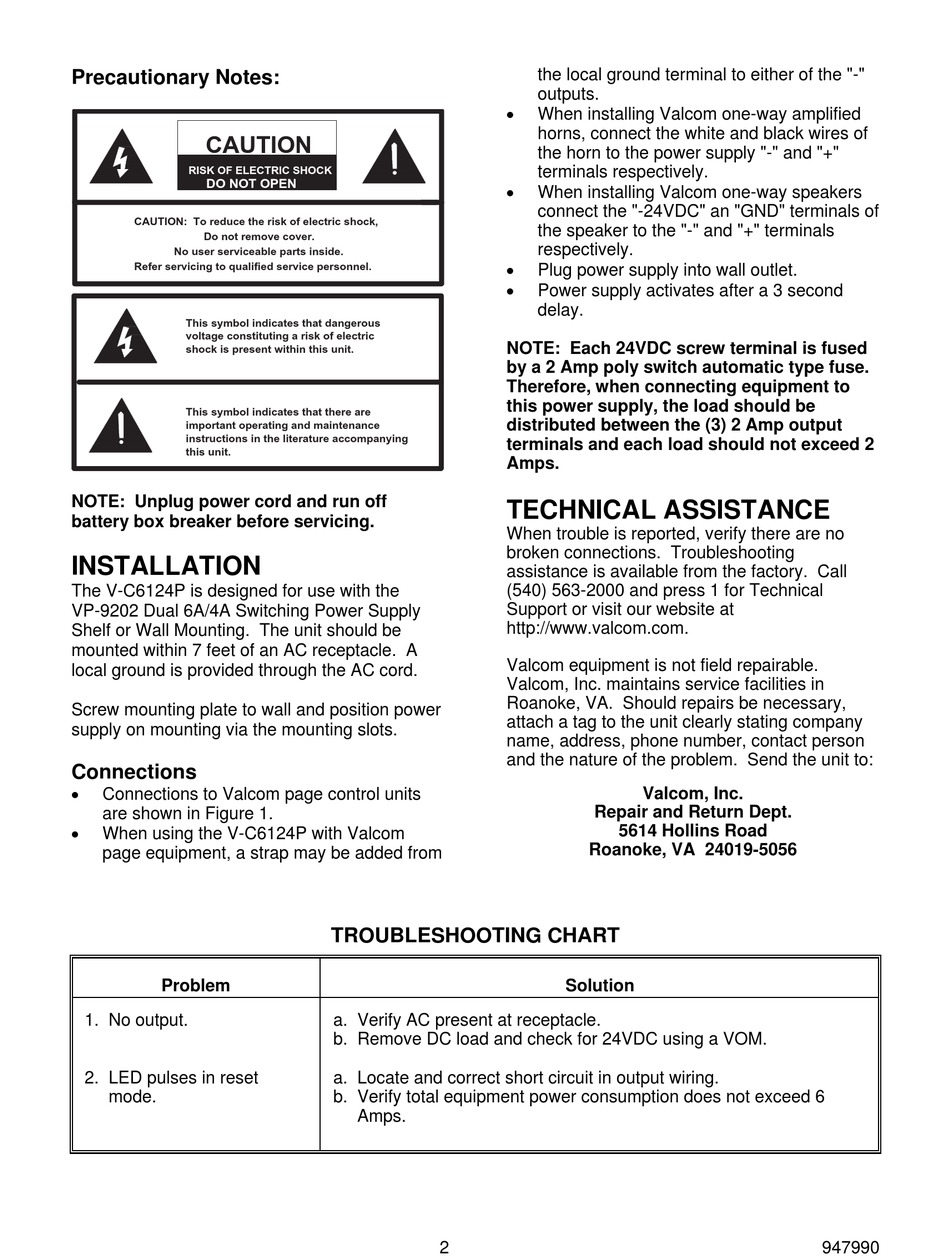

Valcom V-C6124P Manual page 2

Precautionary Notes:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
NOTE: Unplug power cord and run off
battery box breaker before servicing.
INSTALLATION
The V-C6124P is designed for use with the
VP-9202 Dual 6A/4A Switching Power Supply
Shelf or Wall Mounting. The unit should be
mounted within 7 feet of an AC receptacle. A
local ground is provided through the AC cord.
Screw mounting plate to wall and position power
supply on mounting via the mounting slots.
Connections

Connections to Valcom page control units
are shown in Figure 1.

When using the V-C6124P with Valcom
page equipment, a strap may be added from
Problem
1. No output.
2. LED pulses in reset
mode.




NOTE: Each 24VDC screw terminal is fused
by a 2 Amp poly switch automatic type fuse.
Therefore, when connecting equipment to
this power supply, the load should be
distributed between the (3) 2 Amp output
terminals and each load should not exceed 2
Amps.
TECHNICAL ASSISTANCE
When trouble is reported, verify there are no
broken connections. Troubleshooting
assistance is available from the factory. Call
(540) 563-2000 and press 1 for Technical
Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
TROUBLESHOOTING CHART
a. Verify AC present at receptacle.
b. Remove DC load and check for 24VDC using a VOM.
a. Locate and correct short circuit in output wiring.
b. Verify total equipment power consumption does not exceed 6
Amps.
2
the local ground terminal to either of the "-"
outputs.
When installing Valcom one-way amplified
horns, connect the white and black wires of
the horn to the power supply "-" and "+"
terminals respectively.
When installing Valcom one-way speakers
connect the "-24VDC" an "GND" terminals of
the speaker to the "-" and "+" terminals
respectively.
Plug power supply into wall outlet.
Power supply activates after a 3 second
delay.
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
Solution
