NOTES ABOUT HUM:
While the SPA1000 has been designed to minimize the possibility of hum in the subwoofer system, it is still possible that a hum
will occur in rare circumstances. Its safety grounding can create a path for small amounts of 60 Hz energy to travel through the
line-level audio system. While not dangerous, this energy can cause diffi culty with the subwoofer auto signal sensing circuit,
and at the very least will interfere with the quiet enjoyment of your system. The fi rst course of action should be trying to make
sure that all of the audio components are connected to either the same electrical outlet, or at least into the same circuit branch.
Next, cable TV systems are notoriously the culprit, so be sure to try disconnecting all coaxial feeds that are connected to the
system. If this solves the problem, install a coaxial line isolator and reconnect the system. In the very worst case, a line-level
audio isolator/transformer connected to the line-in of the subwoofer amplifi er will usually solve the problem.
SPECIFICATIONS:
Rated Power Output:
(0.92 % THD) 497 Watts* into 8 ohms, 950 Watts* into 4 ohms
*Based on one-third power duty cycle
Signal to Noise Ratio:
98 dB A-weighted
Effi ciency:
86%
Input Impedance:
12K ohms
Low Pass Adjustment:
30 Hz – 200 Hz
Phase Adjustment:
0° (NOR) or 180° (REV)
Parametric EQ:
Frequency:
18 Hz – 80 Hz
Bandwidth:
0.1 – 1 Q
Level:
-14.5dB – +6dB
Dimensions:
11-15/16" W x 11-15/16" H x 5-1/4" D
Enclosure Cutout:
10" x 10"
Power Requirements:
120/230 VAC, 50 Hz/60 Hz
Stand-by Power Rating: 120V 24W; 230V 18.4W
Weight:
17 lbs.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualifi ed personnel.
To reduce the risk of fi re and shock do not expose unit to rain or moisture. The unit should be connected to an earth grounded AC
electrical socket. The unit should be operated in a well ventilated area. Minimum clearance is 2 inches from the ventilation openings.
Note: Unit is set at the factory for 120V operation. Be sure to change the fuse (5A rating) before switching to 230V operation.
5-Year Limited Warranty
See daytonaudio.com for details
daytonaudio.com
tel + 937.743.8248
info@daytonaudio.com
SPA-10
705 Pleasant Valley Dr.
Springboro, OH 45066
USA
(4)
© 2009 Dayton Audio
®

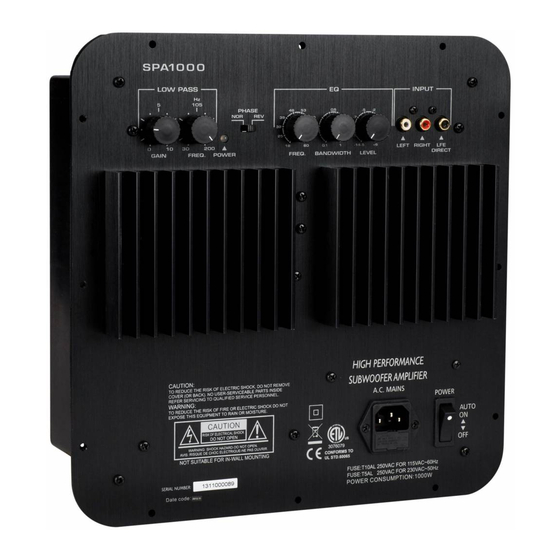

1000W SUBWOOFER
PLATE AMPLIFIER
Model: SPA1000 User Manual
