Summary of Contents for boytone BT-19DJM

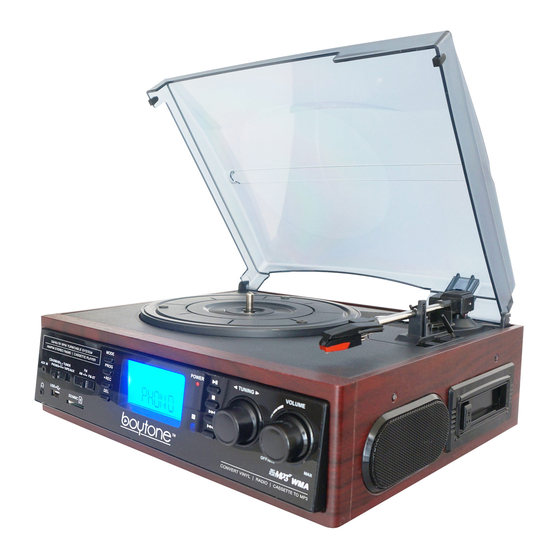

- Page 1 Turntable/Cassette Player With USB/SD and Radio Model Number BT-19DJM Operating Instructions Manual...
-
Page 2: Important Safety Instructions
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. IMPORTANT SAFETY INSTRUCTIONS Please read these instructions and keep them for future reference. -
Page 3: Unpacking And Setup
Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/or humid or moist areas. Do not attempt to clean this unit with chemical solvents as this might damage the finish. -
Page 4: Protect Your Furniture
PROTECT YOUR FURNITURE This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. -
Page 5: Back Panel
11) Delete button 21) Skip up button 12) USB socket 22) Stop button 13) SD/MMC card slot 23) Play/Pause button 14) LCD display screen 24) Cassette Player Slot. 15) Without this function 25) Volume knob 16) Without this function 26) Lift lever 17) Tuning knob 27) Tone arm 18) IR remote receiver... -
Page 6: Listening To Radio
OPERATING INSTRUCTIONS Listening to radio Turn the volume knob in a clockwise direction to turn the equipment on. Use the function selector to select TUNER mode. Use the radio band selector to select the desired band (AM, FM or FM-Stereo). Turn and hold the tuning knob for a few seconds to tune into a radio station. -
Page 7: Phono Operation
Phono Operation 1. Open the dust cover and turn the volume knob clockwise to turn the equipment on. 2. Use the function selector to select PHONO mode. 3. Set the speed selector to the appropriate position: 33, 45 or 78, depending on the record to be played. -
Page 8: Phono Encoding
Phono encoding 1. Set the function button to PHONO mode and then insert a memory device (USB drive, SD or MMC card). 2. Put your record onto the turntable and get it ready for playback. 3. Press the record REC button. It will take about 3 - 4 seconds to read the memory device, then the USB or SD icon will be flashing on the LC display. - Page 9 7. To stop playback, press the EJECT/FAST FORWARD button completely. Playback will be stopped and the cassette tape will be ejected. IMPORTANT! When using the cassette deck: Make sure to insert the cassette in the correct direction. To avoid damaging the cassette, we strongly recommend taking it out of the equipment after playing the cassette.
-
Page 10: Playback Controls
The USB Port and SD Card Slot Playback of music in MP3/WMA format via USB device or memory card The system is able to decode and playback all MP3/WMA files stored in the memory media connected to the USB port or SD/MMC card slot. 1. -
Page 11: Important Notes
Press this button once to play the next file, press and hold this button SKIP UP to fast forward through the files/tracks. Press this button once to play the previous file, press and hold this SKIP DOWN button to fast reverse through the files/tracks. TUNING KNOB Turn this knob to the right/left to search a folder backward or forward. -
Page 12: Copying A Folder
6. When all desired tracks have been programmed, press the PLAY/PAUSE button to play the tracks in the assigned order. 7. To cancel programming, press the STOP button twice. Copying of MP3 / WMA files The system allows you to copy files from USB to SD/MMC or vice versa. You can copy a single file/track, a folder of files/tracks, or all files/tracks on the storage medium. - Page 13 previously). When the system has recognised the device, press the stop button. 2. Press the record REC button: “ONE” will be flashing on the display. Press the SKIP UP or SKIP DOWN button to select “ALL” on the display. Press the record REC button again to confirm.
- Page 14 4. “DEL” will show on the display while the folder is being deleted until the deletion is complete. Deleting all files/tracks 1. Insert a USB storage device and SD card, then select USB/SD mode (as described previously). When the system has recognised the device, press the stop button.
-
Page 15: Troubleshooting Guide
device takes priority over cassette playback. NOTE: If you won't use the unit for a long time ,you had better take the CD out from the disk tray door . AUX IN encoding 1. Use the function selector to select TAPE/AUX mode and then insert a memory device (USB drive, SD or MMC card). -
Page 16: Problems With Sound
Problems with sound Clockwise rotate the power/volume knob to increase the volume. Make sure the unit’s power cord is connected to an appropriate electrical outlet. Make sure the wall socket is switched on. Make sure the function switch is set to your desired function: PHONO, USB/SD, TUNER, TAPE/AUX.
