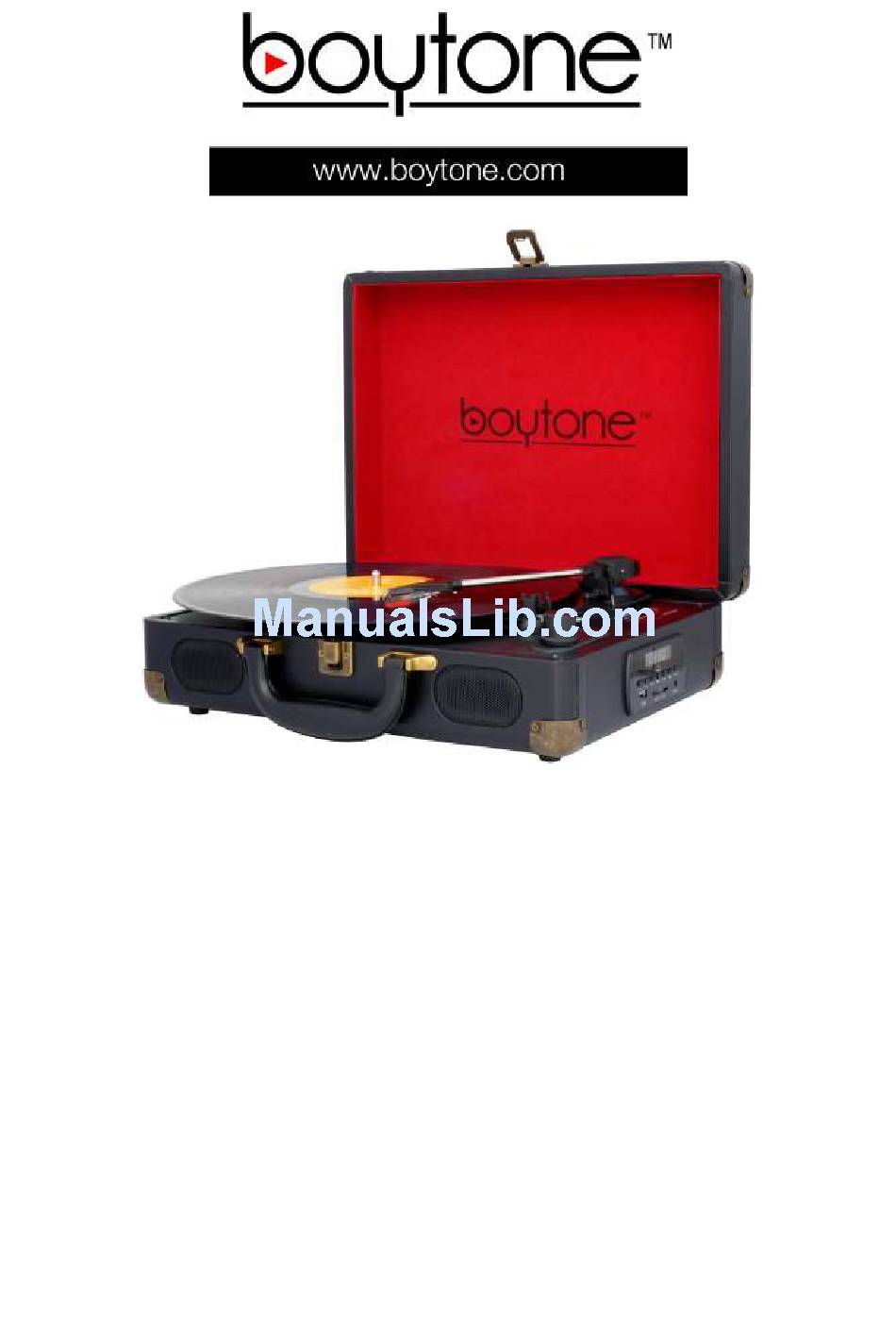

- Page 1 Suitcase Turntable with Rechargeable Battery USB/SD and FM Radio & Bluetooth Model Numbers: BT-101B INSTRUCTION MANUAL READ INSTRUCTIONS CAREFULLY BEFORE USE AND STORE IN A SAFE PLACE FOR FUTURE REFERENCE...
- Page 2 Features: 1. Function 33.3,45,45rpm Turntable LP player 2. Built-in Speaker (2x1W RMS) 3. Line Out ( RCA Jack ) 4. USB/SD playing and recording 5. FM radio 6. Aux in and Headphone 7. RCA out 8. Can built-in rechargeable lithium battery (Can be run continuously 3~4 hours) 9.
-
Page 3: Initial Setup
1. Lock catch Plastic dust cover Use this when playing 45rpm records with cut out centres. 3. Adapter - 4. Tone arm lift lever Turntable 6. Auto stop control Three speed for choice: 33.3, 45, 78 rpm. Speed selection - 8. -
Page 4: Main Connection
AUX input on your mixer or amplifier using an RCA cable (not supplied) Red plug into R/H channel input. White plug into L/H channel input. BOYTONE 101B *The first time this Record Player is used, plug it in to charge battery for at least 30 minutes. - Page 5 Phono encoding 1. Set the function button to PHONO mode and then insert a memory device (USB drive, SD or MMC card). 2. Put your record onto the turntable and get it ready for playback. 3. Press the record REC button. It will take about 3 - 4 seconds to read the memory device, then the USB or SD icon will be flashing on the LC display.
- Page 6 this step if only a USB drive or an SD/MMC card is inserted.) 4. The system will start the encoding mode after a few seconds. During encoding, the USB or SD icon will be flashing on the display. 5. To finish encoding, press the stop button. The display will show “END” and return to TAPE/AUX mode.
- Page 7 SD mode.) The system will start reading the storage medium automatically after mode selection and will display the total number of folders and MP3/WMA files. 4. The system will then start audio playback from the media storage device (USB or SD card) automatically. Playback controls PLAY/PAUSE Press this button once to stop playing, press it again to continue.
- Page 8 solution and format. We therefore cannot guarantee that this unit will support all USB and SD devices from every brand. • This system supports SD cards up to 8GB. • MP3 / WMA track format requirements: MP3 bit rate: 32 kbps~256 kbps; WMA bit rate: 32 kbps ~ 320 kbps.
- Page 9 2. Turn the tuning knob to select the desired folder for copying. 3. Press the record REC button: “ONE” will be flashing on the display. Press the SKIP UP or SKIP DOWN button to select “FOL” (folder) on the display. Press the record REC button again to confirm.
- Page 10 The system is able to erase files stored on the USB drive or SD card. You can delete a single file/track, a folder of files/tracks, or all files/tracks on the storage medium. Deleting a single file/track 1. Insert the USB storage device or SD card, then select USB/SD mode (as described previously).
-
Page 11: Maintenance
described previously). When the system has recognised the device, press the stop button. 2. Press the delete DEL button: “ONE” will be flashing on the display. Press the SKIP UP or SKIP DOWN button to select “ALL” on the display. Press the delete DEL button again to confirm. - Page 12 INSTALLING A NEW STYLUS CARTRIDGE -Refer to the figures 5 & 6 NOTES We advise you to clean your records with an anti-static cloth to gain maximum enjoyment from them and to make them last. We would also point out that for the same reason your stylus should be Replaced periodically (approximately every 250 hours) Dust the stylus from time to time using a very soft brush dipped in alcohol (brushing from back to front of the cartridge)
- Page 13 Replace the protective cap on the stylus. Put the rest clip into the pick-up arm.
