REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION
Perform steps 1, 2, 3 and 5 of the disassembly method to
remove the CD mechanism.
How to remove the pickup (See Fig. 5.)
1. Remove the screws (A1) x 2 pcs., to remove the shaft (A2)
x1 pc.
2. Remove the stop washer (A3) x1 pc., to remove the gear
(A4) x 1 pc.
3. Remove the pickup.
Pickup
Shaft
(A2) x1
– 5 –
QT-CD111/111C
(A1) x2
2.6 x6mm
CD
Mechanism
Stop
Washer
Gear (A3) x1
(A4) x1

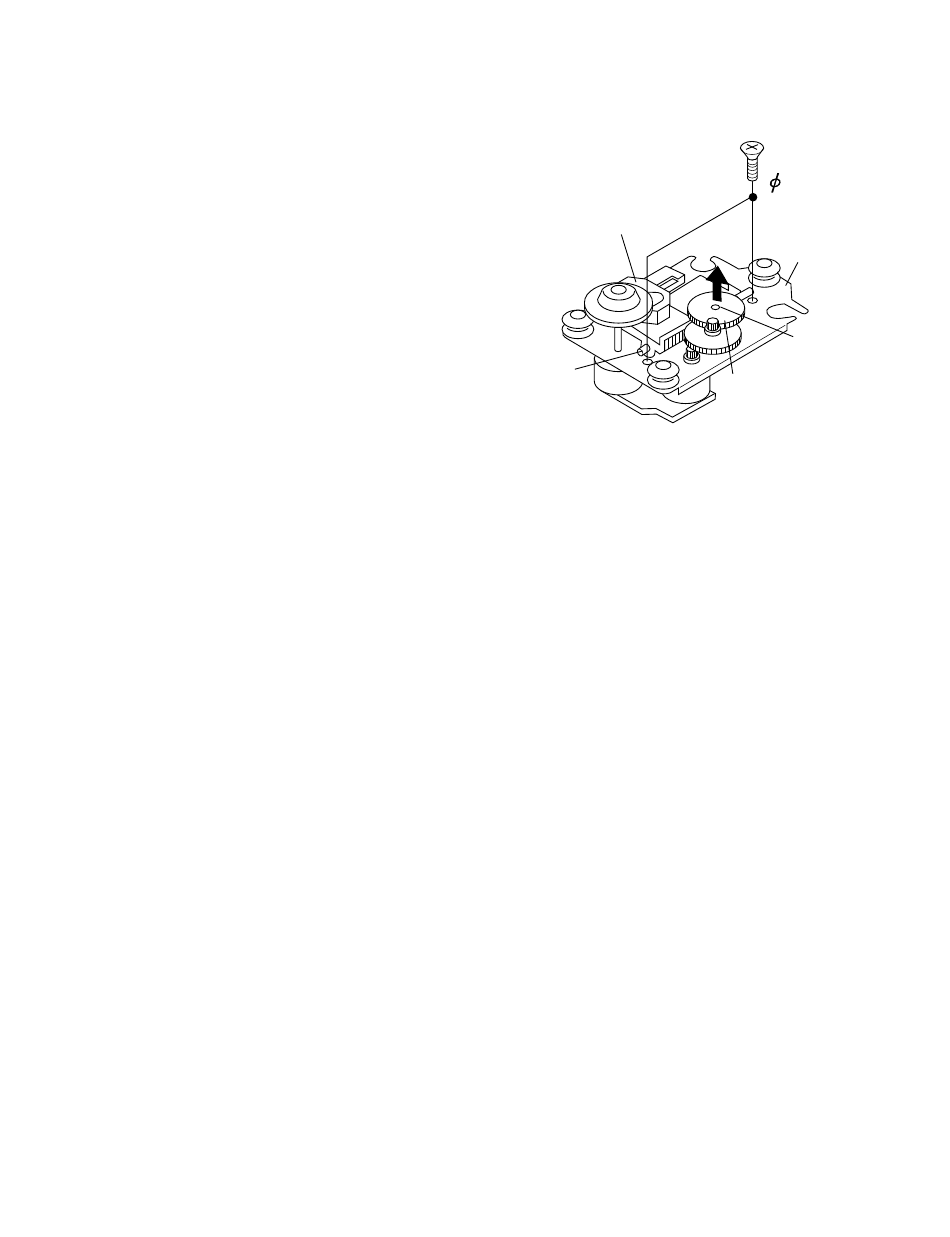

Figure 5
