SAVE THIS BOOK
This book is valuable. In addition to instructing you on
how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or accessory items when needed.
Keep it with your other important papers.
WARNING: Always leave glass doors fully opened or fully closed when operating this fireplace.
This firebox meets the construction and safety standards of H.U.D. for
application in mobile homes when installed according to these instructions.
DESA INTERNATIONAL
2701 INDUSTRIAL DRIVE
P.O. BOX 90024
BOWLING GREEN, KY 42101-9004
www.desatech.com

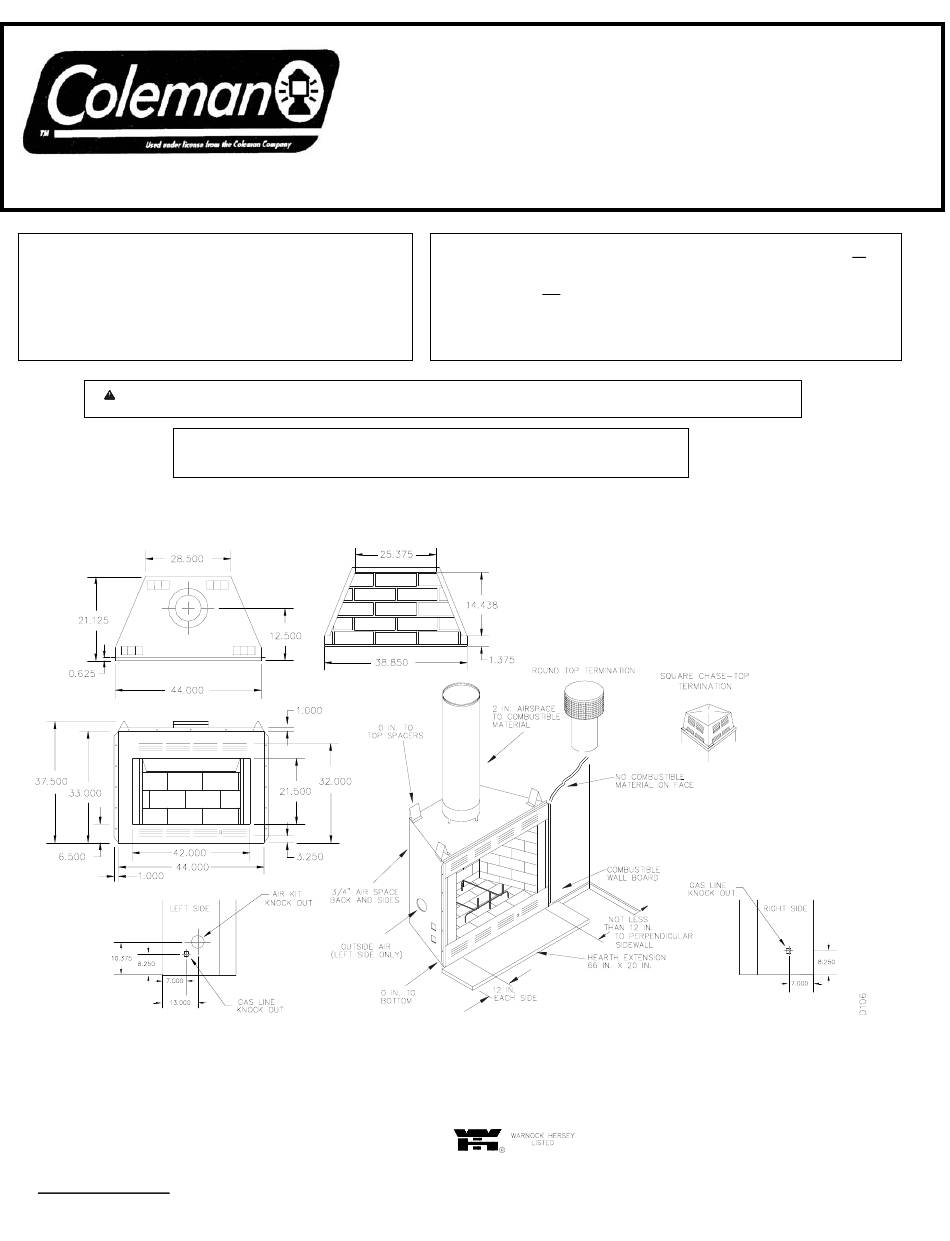

INSTALLATION INSTRUCTIONS
42" Circulating Firebox
Includes: Manual Variable Control Fan System, Combustion
Air Kit and Bi-Fold Doors with Brushed Brass Finish
This fireplace is approved for use as a wood burning fireplace or for
use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA
2-72 standards or for use with a vent-free gas log heater approved to
ANS Z21.11.2 standard. A DESA hood must be installed when
using a vent-free gas log heater (see Accessories, p. 12).
ALL DIMENSIONS IN THIS MANUAL ARE IN
INCHES UNLESS OTHERWISE SPECIFIED
C42MW
P/N 108919-01
REV D
6/02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coleman C42MW
Summary of Contents for Coleman C42MW
- Page 1 C42MW 42” Circulating Firebox Includes: Manual Variable Control Fan System, Combustion Air Kit and Bi-Fold Doors with Brushed Brass Finish INSTALLATION INSTRUCTIONS SAVE THIS BOOK This fireplace is approved for use as a wood burning fireplace or for This book is valuable. In addition to instructing you on use with a vented gas log approved to ANS Z21.60, Z21.84 or RGA...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ------------------------------------------------------------- PG. 2 SELECTING LOCATION ------------------------------------------------------------- PG. 2 MINIMUM CLEARANCES ------------------------------------------------------------- PG. 2 FRAMING AND INSTALLING ------------------------------------------------------------- PG. 3 HEARTH EXTENSION ------------------------------------------------------------- PG. 3 OUTSIDE AIR KIT INSTALLATION ------------------------------------------------------------- PG. 4 FAN KIT ASSEMBLY ------------------------------------------------------------- PG. 4 CHIMNEY PIPE ------------------------------------------------------------- PG. -
Page 3: Introduction
WARNING: Do not pack required air spaces with code the manufacturer recommends it. insulation or other materials. This Model fireplace C42MW meets the construction MINIMUM / MAXIMUM CHIMNEY HEIGHT and safety standards of HUD for application in mobile The minimum height of the chimney, measured from the base homes when installed according to these instructions. -
Page 4: Framing And Installing
FRAMING AND INSTALLING THE FIREPLACE STEP 1: Frame the opening for the fireplace using the dimensions shown in figures 1 & 2. STEP 2: If the fireplace is to be installed directly on carpeting, tile (other than ceramic), or any combustible material other than wood flooring, the fireplace must be installed upon a metal or wood panel extending the full width and depth of the fireplace. -
Page 5: Outside Air Kit Installation
OUTSIDE AIR KIT (MODEL AK-6) Slide all wiring connections in the electrical housing The installation of an outside air kit should be performed as shown in figure 6b. during the rough framing of the fireplace due to the nature of Secure the electrical cover plate with screws its location. -
Page 6: Firestop Thimble And Spacers
ASSEMBLY AND INSTALLATION OF THE DOUBLE An opening large enough to allow the insertion of the firestop WALL CHIMNEY SYSTEM thimble assembly will be required in the ceiling. Attach the Each double wall chimney section is consist of a galvanized firestop/thimble assembly to the ceiling/ceiling joist using outer pipe, a stainless steel inner flue pipe and a wire spacer. - Page 7 If the adapter is needed, secure it onto the firestop using holes provided (see figure 10). The row of holes on the sides of the thimble is provided to allow for pitch variances. Position the firestop assembly and thimble to desired angle and secure with screws provided.
-
Page 8: Flashing And Termination
Note: Storm collar is required but can be installed after the home is sited. PITCH SLOPE OPENING "A" MAX USE FLASHING (degrees) (inches) MODEL NO. FLAT V6F-8DM 0 - 6/12 26.6 19 - 1/8 V6F-8DM Figure 16 STORM COLLAR 6/12 - 12/12 45.0 24 -1/4 V12F-8DM... -
Page 9: Finishing Your Fireplace
OPERATING GUIDELINES AND MAINTENANCE INSTRUCTIONS GLASS DOORS Glass doors are standard with the C42MW fireplace. When the fireplace is in operation, doors must in FULLY OPENED or FULLY CLOSED position only or a fire hazard may be created (see figure 21). -
Page 10: Gas Line Installations
Figure 22 GAS LINE KNOCKOUT Figure 21 GLASS DOORS STEP 2: Remove gas line cover plate on either side of IMPORTANT: The glass must be allowed to warm slowly fireplace and pull out insulation (if any) from gas line conduit and evenly. -
Page 11: Damper Operation
IF YOU WISH TO INSTALL AN UNVENTED (VENT- FREE) GAS LOG SET, ONLY UNVENTED GAS LOG SETS WHICH HAVE BEEN FOUND TO COMPLY WITH THE STANDARD FOR UNVENTED ROOM HEATERS, ANSI Z21.11.2, ARE TO BE INSTALLED IN THIS FIREPLACE. NOTE: A DESA hood must be installed when using an unvented gas log set (see accessories on page 12). -
Page 12: Illustrated Parts
ILLUSTRATED PARTS For more information, visit www.desatech.com... - Page 13 QTY. 54002 WARRANTY, HOME OWNERS BOOK 108857-02 DOOR ASSEMBLY-LT 108307-01 PAN, INSULATION 108856-02 DOOR ASSEMBLY-RT 108305-01 TOP, FIREPLACE 56090 COLEMAN DECAL 108304-01 SURROUND, FIREPLACE 106574-01 INSTALL INSTRUCTION AK-6 108301-01 FLOOR, FIREBOX 55521 LABEL, CERT. WARNOCK-HERSEY 108303-01 SEPARATOR, AIR 107778-30 LABEL, CARTON...
- Page 14 REPLACEMENT PARTS ACCESSORY PARTS VENT KIT PART NUMBER SEE BELOW VENT KITS - USE FOR MOST COMMON MANUFACTURED (MOBILE) HOME INSTALLATIONS CONTENTS MW8K MW9K 8' vent kit 9' vent kit 36-8DM 36" Double Wall Pipe 24-8DM 24" Double Wall Pipe 18-8DM 18"...
-
Page 15: Part Number Reference Table
PART NUMBER REFERENCE TABLE* MODEL DESCRIPTION COLEMAN PART # DESA PART # TRIPLE FAN BLOWER KIT ----- EP-36 EMBER PROTECTOR 9736-5601 20093 AK-6 OUTSIDE AIR KIT FLOOR INSTALLATION 9736A-2206 90153 AK-6WAI OUTSIDE AIR KIT WALL INSTALLATION 9736-2306 90156 12-8DM DOUBLE WALL PIPE, 12" SECTION...
