CrimeStopper COOL TIMER RS-400 Supplementary Manual

COOL TIMER

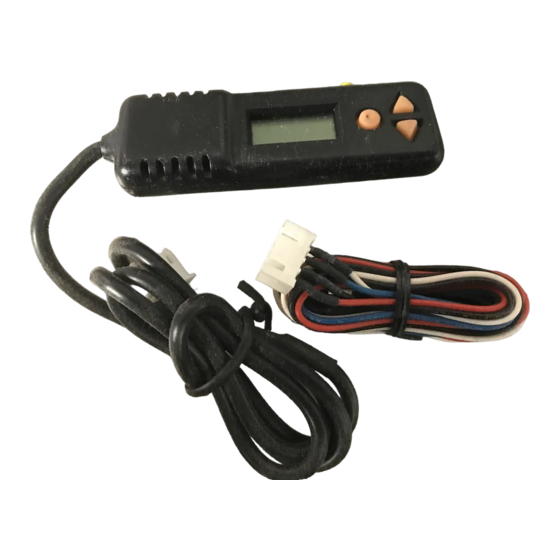

Programmable Temperature & Timed Remote Start Interface Module

Features:

User selectable temperature-controlled remote start allows the Cool Timer to start vehicle when a
pre-programmed temperature is reached.
temperature stays at or below pre-programmed level.
4 pre-programmed Celsius / Fahrenheit Levels
User selectable timed-start control allows the Cool Timer to start vehicle every 2, 4, 6, 8, or 24
Hours.
LCD panel provides in-car temperature and memory display settings.
Temperature readout provided in Degrees of Celsius or Fahrenheit.
Includes CoolGlow self-illuminated buttons.
Brake pedal reset circuitry.
Easy 4-wire hookup installs in minutes. Works with any remote start system that has a negative
start trigger input.
1. For temperature controlled self-starting, the Timed hourly start setting must also be used.
Temperature control will not work without also setting an hourly time interval.
2. The +12V Brake wire will reset the RS400 module's timer function. If this is not desired, you can
choose not to connect this wire or to add a toggle switch (not included) on the wire to selectively
use the reset function.
3. The RS400 will always display the current car temperature unless you are setting the temp or
hourly program.
Vehicle will start every 2, 4, 6, 8, or 24 hours if
FUNCTION
LCD
KEY
DISPLAY

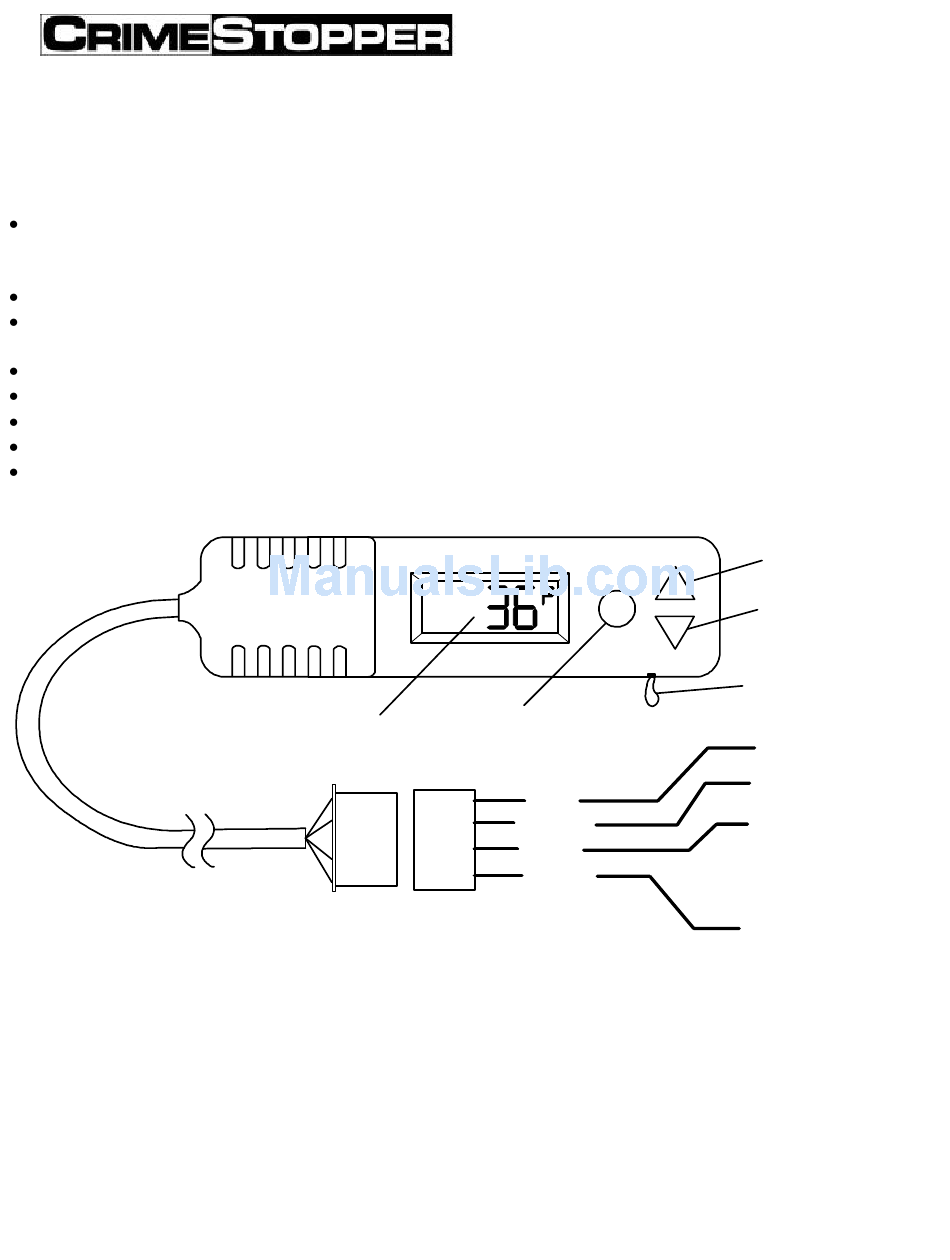

Import Notes:
RED
BLACK
BLUE
WHITE
INCREASE
DECREASE
LOOP for
F/C Degrees
+12 VDC
GROUND
+12V BRAKE
(To wire that shows
+12V when brake is
pressed.)
(-) START TRIGGER
(Connect to Remote
Starter's Negative Start
Trigger input)
