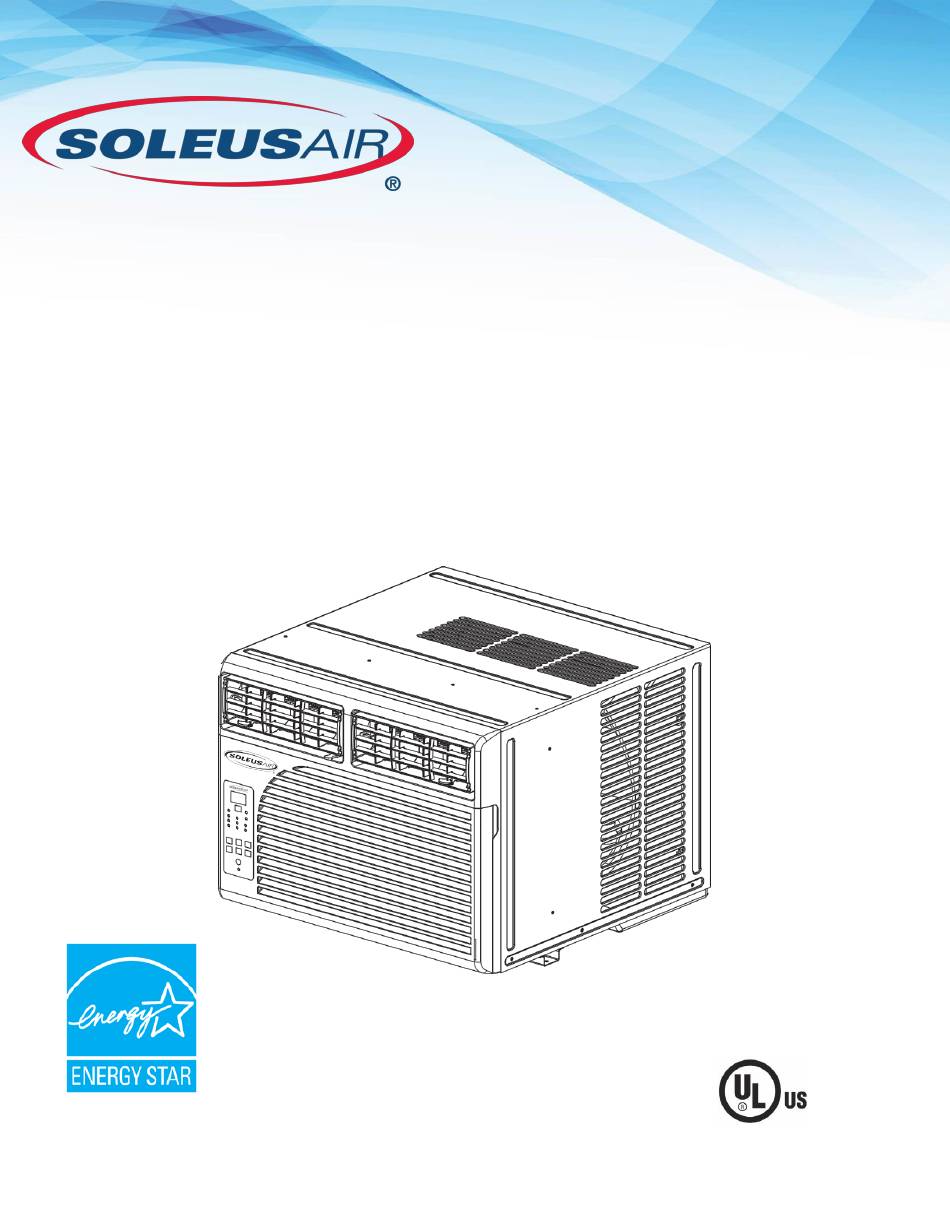

- Page 1 Models WM1-06E-01 6,400 BTU WM1-08E-01 8,500 BTU WM1-10E-01 10,200BTU WM1-12E2-01 WM1-12E-01 12,600BTU Electronic Window Air Conditioner Operating Instructions V170103...
-
Page 2: Purchase Information
PURCHASE INFORMATION Thank you for choosing a Soleus Air Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 3: Power Cord And Plug
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 4: Package Contents
PACKAGE CONTENTS Top Mounting Rail Air Conditioner 2 AAA Remote Control Batteries Owner's Manual Foam Seal Mounting Rail Weather Insulation Board Insert Strip Curtain Curtain Lock Long Screw Short Screw Sash Lock Part List: Sash Lock (2) Window Air Conditioner (1) ... -
Page 5: Specifications
57/64 R-410A Refrigerant Type R-410A R-410A NEMA 5-15P Plug Type NEMA 5-15P NEMA 5-15P Model WM1-10E-01 WM1-12E2-01 1/115/60 1/115/60 Power Supply (Ph/V/Hz) Rated Cooling Capacity (BTU/h) 10,200 12,600 1,000 Cooling Power Input (Watts) Rated Current Cooling (Amperage) 55/59 Noise Level dB(A) (L/H) -
Page 6: Electrical Safety
ELECTRICAL SAFETY Avoid fire hazard or electronic shock, WARNING: DO NOT use an extension cord or an adapter plug. DO NOT remove any prong from the power cord. DO NOT under any circumstances, cut, remove, or bypass the grounding prong!! Power supply cord with 3-prong grounding plug and current detection device DISCLAIMER... -
Page 7: Installation
Make sure the window is in good shape and able to firmly hold the needed screws. If not, make repairs prior to installing the unit. Model WM1-06E-01 WM1-08E-01 / WM1-10E-01 WM1-12E2-01 Unit Height 12 5/8” 14 3/8"... -
Page 8: Top Rail Installation
TOP RAIL INSTALLATION NOTE: Top Rail and the side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained. Attach the top rail onto the top of the outer case using four Short Screws. - Page 9 INSTALLATION Placing the Unit Inside a Normal Window Curtain & Weather Insulation Board Installa- tion 1. Set the unit in the window so that is centered. Place the unit so that front edge of the bottom rail is NOTE: The Weather Insulation Board adds an extra layer of against the back edge of the sill.
- Page 10 INSTALLATION IF AC is Blocked by a Storm Window Removing the Air Conditioner from the Window A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. 1. Turn the air conditioner off, and disconnect the power To adjust for this, attach a board or piece of wood to the cord.
-
Page 11: Control Panel Layout
CONTROL PANEL LAYOUT Electronic Control Panel & Remote 4. Timer Set: Use these buttons on the Control control panel and remote control to set Note: This control panel display always shows the the timer. Each press of the▲or▼ button room temperature in Fan Mode except when setting will increase or decrease the timer. -
Page 12: Remote Control
REMOTE CONTROL LCD Display MODE SLEEP ENERGY HIGH SAVER TIMER C/ F CHILD MYTEMP MODE LOCK Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries. - Page 13 OPERATING INSTRUCTIONS 1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer function will be cancelled. The set temperature will be saved. 2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Auto, Cool, Dry (Dehumidifier), and Fan.
- Page 14 USE THE AIR CONDITIONER 1. Freezing Conditions: This is a cooling only air 5. Fan Only Mode: Use Fan Only mode at High, conditioner. It is not designed for freezing outdoor Medium, or Low fan speed to provide air circula- conditions.
-
Page 15: Care And Cleaning
USE THE AIR CONDITONER CARE AND CLEANING Cabinet Cleaning Clean your air conditioner to keep it looking new To clean the air conditioner cabinet: and to minimize dust build up. Unplug the air conditioner to prevent shock or Air Filter Cleaning a fire hazard. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged Make sure the air conditioner plug is pushed completely into the outlet. Check the main fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and Humid weather. This is normal Water is dripping inside the room The air conditioner is not correctly For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 18: Limited Warranty
Two Year Components Limited Warranty Five Year Compressor Limited Warranty Soleus N.A. warrants the accompanying Soleus Air Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of TWO (2) years for components and FIVE (5) years for the compressor from the date of original retail purchase in the United States.
Need help?
Do you have a question about the WM1-12E2-01 and is the answer not in the manual?
Questions and answers
I'm looking for the air conditioner filter cover for my air. Conditioner model number wm1-12E-01 Filter cover
For the Soleus Air model WM1-12E2-01, the air filter cover can be found on the front of the unit. You can remove the filter by pulling down on the indents of the filter door on the front panel.
This answer is automatically generated
@Mr. Anderson I need the filter door for my air conditioner. Do you have and what is the price?
