Pro-Form PFEL55911.6 User Manual page 9

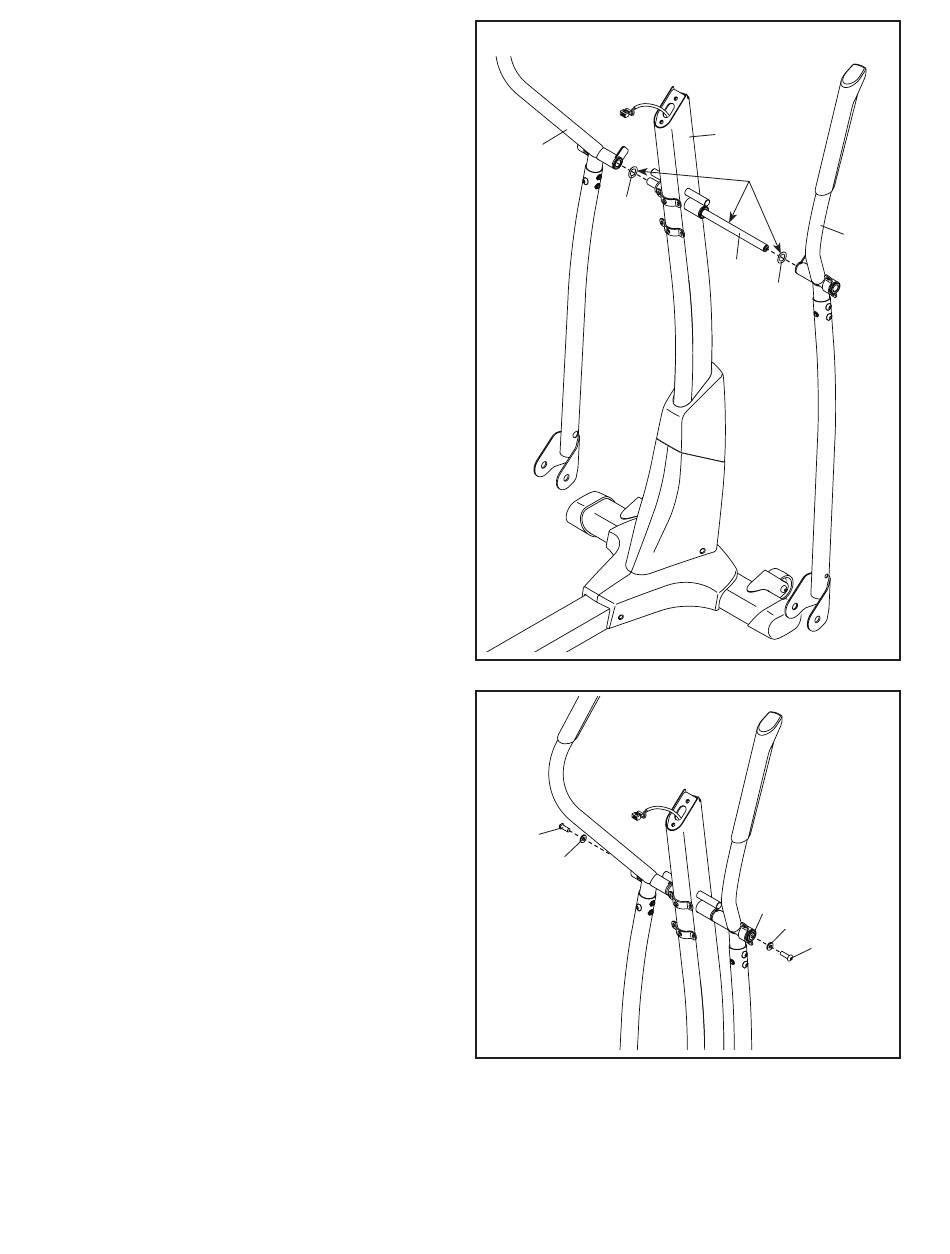

7. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Upright Axle (48) and to two Wave
Washers (118).
Insert the Upright Axle (48) into the Upright (5)
and center it. Slide a Wave Washer (118) onto
each end of the Upright Axle.
Then, slide the Right and Left Upper Body Arms
(8, 9) onto the Upright Axle (48).
8. At the same time, tighten an M8 x 16mm Screw
(102) with an M8 x 23mm x 1.5mm Washer (91)
into each end of the Upright Axle (48). Firmly
tighten the Screws.
