Summary of Contents for ACTi E44
-

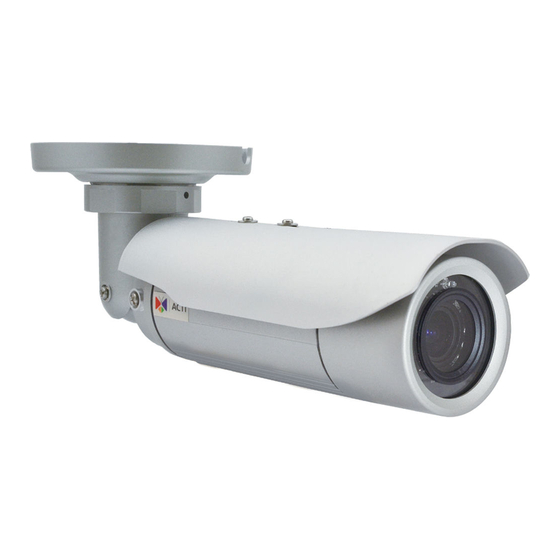

Page 1: Bullet Camera
Bullet Camera Hardware Manual E44, E45, E46 Ver. 2013/06/05... -
Page 2: Table Of Contents
Connecting Multiple Cameras ............22 Adjust Focal Length and Focus ............ 23 Accessing the Camera Configure the IP Addresses ............24 Using DHCP Server to Assign IP Addresses ........ 24 Using the Default Camera IP Address .......... 26 Access the Camera ................. 28 www.acti.com... -
Page 3: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 5: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 6: Introduction
Introduction List of Models This hardware manual contains the following models: 2MP Bullet with D/N, IR, Basic WDR, SLLS, Vari-focal lens 1MP Bullet with D/N, IR, Superior WDR, Vari-focal lens 3MP Bullet with D/N, IR, Superior WDR, Vari-focal lens www.acti.com... -
Page 7: Package Contents
Hardware Manual Package Contents Bullet Camera Sunshield Mounting Screw Kit Sunshield Screw Kit Waterproof Kit Drill Template Quick Installation Guide Warranty Card www.acti.com... -
Page 8: Physical Description
Hardware Manual Physical Description Side View Back View 1) Ethernet Connector Connects to the network and power source. See Basic Connections on page 21 for more instructions. www.acti.com... -
Page 9: Installation Procedure
3. Attach the camera to the surface using the three (3) supplied screws. 4. When installing the camera outdoors, attach the sunshield using the supplied screws and washers. 5. Adjust the camera installation angle and orientation, and then tighten the two (2) screws to fix its position. www.acti.com... - Page 10 If the camera will be installed outdoors and without a junction box to protect the cable connection from rain or dust, be sure to apply the waterproof installation, see Waterproof Cable Installation on page 11. www.acti.com...
-
Page 11: Waterproof Cable Installation
Full Waterproof: Waterproof cable connection with watertight flex conduit. The Waterproof Cable Kit that came with the camera contains the following items: Basic Waterproof Accessories 2-Sided Female Type Connector Full Waterproof Accessories The 2-Sided Female Type Connector is used in all types of cable connection. www.acti.com... -
Page 12: Basic Waterproof
NOTE: The above accessories come in two sets, one for the Ethernet cable of the camera and the other for the network. 2. Insert the clamping nut through the Ethernet cable of the camera. 3. Insert the rubber seal. www.acti.com... - Page 13 5. Do the same procedures on the Ethernet cable on the network side. Camera Side Network Side 6. Connect the Ethernet connector of the camera and the network to each side of the 2-sided female type connector. 2-Sided Female Type Connector Ethernet cable from the network Ethernet cable of the camera www.acti.com...
- Page 14 Hardware Manual 7. On the Ethernet cable on the camera side, attach the rubber seal to the main body. 8. Attach the main body to the 2-sided female type connector. 9. Attach the clamping nut to the main body. www.acti.com...
-
Page 15: Full Waterproof
2. Detach the parts of the main body, as follows: Clamping Nut Body Lock Nut Sealing Insert NOTE: The Lock Nut is designed for use with junction boxes and will not be used in this installation. Please set it aside. www.acti.com... - Page 16 Hardware Manual 3. Insert the clamping nut through the Ethernet cable of the camera. 4. Insert the rubber seal. 5. Insert the main body. www.acti.com...
- Page 17 6. Connect the Ethernet cable of the camera to the shorter end of the 2-sided female type connector, and then set the cable aside. Thicker-end for network Shorter-end for network 7. On the network side, insert the Ethernet cable through the flex conduit. 8. Insert the clamping nut through the flex conduit. www.acti.com...
- Page 18 9. Insert the sealing insert and attach it at the end of the flex conduit. 10. Insert the body through the Ethernet cable and attach the body to the clamping nut. 11. Insert the converter and attach it to the body. www.acti.com...
- Page 19 12. Insert the washer into the thicker side of the 2-sided female type connector. 13. Attach the network side converter to the 2-sided female type connector. 14. On the Ethernet cable on the camera side, attach the rubber seal to the main body. www.acti.com...
- Page 20 Hardware Manual 15. Attach the main body to the 2-sided female type connector. 16. Attach the clamping nut to the main body. The waterproof cable connection is complete. www.acti.com...
-
Page 21: Basic Connections
2. Connect the PoE injector to the network and an AC power source. 3. Connect a PC to the same network. Network Ethernet Cable Ethernet Cable (Data) Power Cable PoE Injector Ethernet Cable AC Power (Data + Power) Source Camera www.acti.com... -
Page 22: Connecting Multiple Cameras
2) Connect the PoE switch to a network and an AC power source. 3) Connect a PC to the same network. Network Ethernet Cable Ethernet Cable (Data) Power Cable PoE Switch AC Power Source Ethernet Cables (Data+Power) Cameras www.acti.com... -
Page 23: Adjust Focal Length And Focus
2. Based on the live view from the camera, adjust the focal length and focus of the target area. Focus Focal Length 3. When done, close the front cover. CAUTION: The front cover must be tightly closed to ensure water or dust does not go through any opening. www.acti.com... -
Page 24: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the E44 camera that we had just connected to the network. www.acti.com... - Page 25 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
-
Page 26: Using The Default Camera Ip Address
PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com... - Page 27 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 28: Access The Camera
– the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. www.acti.com... - Page 29 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
