- Page 1 SF6 P2 Instrument User Manual V1.2 Register your instrument online to receive your extended Warranty. Unrivalled Gas Detection. ionscience.com...
- Page 2 SF6 P2 Instrument User Manual V1.2 Register your instrument online for extended warranty Thank you for purchasing your Ion Science instrument. The standard warranty of your instrument can be extended to up to two years. To receive your extended warranty, you must register your instrument online within one month of purchase ( terms and conditions apply.)
-
Page 3: Declaration Of Conformity
SF6 P2 Instrument User Manual V1.2 Declaration of conformity Name und Adresse des Herstellers / Manufacture´s name and address / ISM Deutschland GmbH, Laubach 30, Die ISM Deutschland GmbH bescheinigt die Konformität für das Produkt the product / ISM Deutschland GmbH dérclare la... -
Page 4: Table Of Contents
SF6 P2 Instrument User Manual V1.2 Contents Declaration of conformity ............................. 2 Installation ................................4 Location .................................... 4 Wiring ....................................5 Network diagram................................6 Wiring details ................................... 7 Operation................................7 Auto-zero at startup ................................. 7 Measuring interval ................................7 Indicator lights .................................. 7 Lamp test and manual reset............................. -
Page 5: Installation

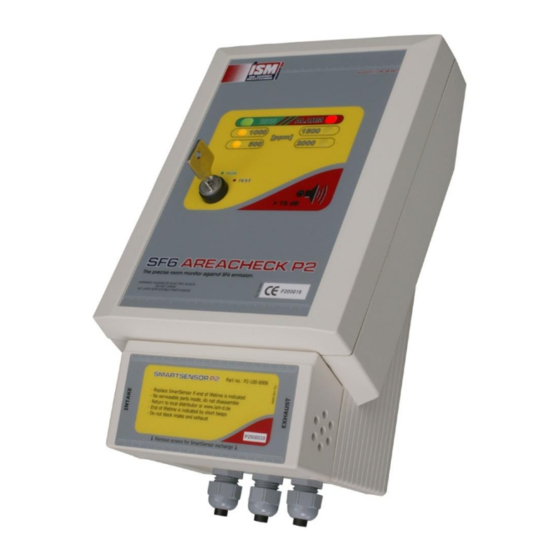

SF6 P2 Instrument User Manual V1.2 Installation Location SF6 AREACHECK P2 is designed for indoor wall mounting. Since SF6 tends to sink towards the ground in undisturbed air, we suggest to place it approx. 50 … 60 cm above ground level. -
Page 6: Wiring
SF6 P2 Instrument User Manual V1.2 Wiring Mains power connects to the orange clamp block, according to the designation printed on the PCB near each clamp. For an optional audible and/or visible alarm device, a voltage free switchover relay output is supplied. -
Page 7: Network Diagram
SF6 P2 Instrument User Manual V1.2 Network diagram Unrivalled Gas Detection. ionscience.com Page 6 of 16... -
Page 8: Wiring Details
SF6 P2 Instrument User Manual V1.2 Wiring details Operation Auto-zero at startup To precisely determine SF6 concentration, SF6 AREACHECK P2 requires a reference value representing clean air. This reference value is taken and stored whenever the instrument is powered up or reset. You should therefore make sure that power up takes place under clean air conditions. -
Page 9: Lamp Test And Manual Reset
SF6 P2 Instrument User Manual V1.2 Placement of LEDs: This light acts as a life sign to confirm the SF6 AREACHECK P2 is in operation. As long as no internal error condition is met, it will blink at all times. During the actual SF6 measurement (normally, this phase is very short), it will blink at a faster rate. -
Page 10: Configuration Via The Pc Interface
SF6 P2 Instrument User Manual V1.2 Configuration via the PC interface Connecting to the host computer Parameter modification in stand-alone operation is done exclusively through the host computer interface. This has the clear advantage that any unintended or unauthorised fiddling is discouraged. -
Page 11: Changing The Sensor Unit
SF6 P2 Instrument User Manual V1.2 Changing the sensor unit For changing the sensor unit, carry out the following Steps: • Power down the P2 (remove the fuse, observing the hints below) • Remove screws • Take off SmartSensor as indicated below •... -
Page 12: O2 Sensor
SF6 P2 Instrument User Manual V1.2 O2 sensor Functionality The optionally available O2 sensor continuously measures the O2 content in the ambient air, and reports it to the network controller if present. An alarm condition on both the measuring station and network controller is raised whenever the oxygen level is outside the allowed range of 16…25%. -
Page 13: Technical Data
SF6 P2 Instrument User Manual V1.2 Technical data ©® Detection principle SF6: NIC Range 0 ... 2000 ppmv SF 0 … 30% O Resolution : 500 ppm : 1% Mains power 100-240VAC, 50/60Hz Power consumption 18 VA Operating temperature range - 5°C ... -
Page 14: Notes
Service Ion Science is pleased to offer a number of service options on our SF6 P1 & P1:p product range that allow you to choose the instrument cover that best suits your needs. At Ion Science we recommend that all of our gas detection instruments be returned for service and factory calibration once every 12 months. -
Page 15: Contact Details
SF6 P2 Instrument User Manual V1.2 Contact details UK and Head Office USA Office ION Science Ltd ION Science Inc The Way, Fowlmere 4153 Bluebonnet Drive Cambridge Stafford SG8 7UJ TX 77477 Tel: +44 (0)1763 208503 Tel: +1 877 864 7710... -
Page 16: Manual Log
Disclaimer: Information in this [manual, document…] is subject to change without notice and does not represent a commitment on the part of Ion Science. No claims, promises or guarantees are made about the accuracy, completeness, or adequacy of the information contained herein.
