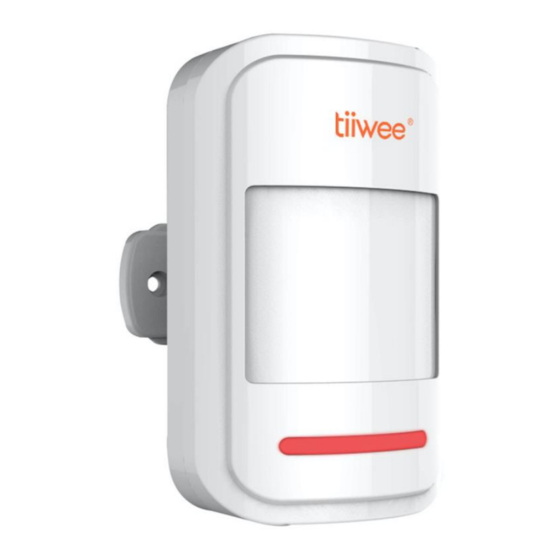

Tiiwee PIR Motion Sensor TWPIR02
User Manual
Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWPIR02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tiiwee TWPIR02

Summary of Contents for Tiiwee TWPIR02

  • Page 1 Tiiwee PIR Motion Sensor TWPIR02 User Manual Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 2 3 x batteries, 1.5V AAA-type, alkaline 1 x ball-joint mount 2 x screws 1 x instructions for use Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 3 Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 4 1. After the installation, turn the switch to ON. Now, walk or move in front of the PIR sensor at a distance between 3 and 6 meters. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 5 (front and back part) by using an appropriate device (screw driver i.e.). Now you can see the circuit board with the 2 switches. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 6 The factory settings are “5s” and “Led On”. This means that the sensor will respect a 5-seconds waiting time between 2 signals and that the LED Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 7 PIR is lower than 2.4V unless its light has been switched off by setting the internal switches. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 8 Wireless Distance: 100m ( Open Area ) Wireless Frequency: 433MHz Housing Material: ABS Working Humidity: <80% Detector Size: 106x67x45mm Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 9 1 x Tiiwee PIR Bewegungsmelder TWPIR02 für das Tiiwee Home Alarm System 3 x Batterien, 1.5V AAA, alkalisch 1 x Kugelgelenk-Montageplatte 2 x Schrauben 1 x Gebrauchsanleitung Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 10 PIR Bewegungsmelder im gleichen Bereich installiert haben, achten Sie bitte auf deren Ausrichtung, um Interferenzen und Falschalarme zu vermeiden. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 11 Person erfasst wird und nicht eine Vorbeigehende. Test 1. Schalten Sie den Bewegungsmelder auf "On". Begeben Sie sich nun vor den Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.

  • Page 12: Erweiterte Einstellungen

    Der Tiiwee PIR Bewegungsmelder ist mit zusätzlichen Funktionen ausgestattet. Dies erlaubt Ihnen, den Melder auf Ihre Bedürfnisse einzustellen. Um zu diesen Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 13 Batteriestrom. Diese Einstellung kann genutzt werden, wenn der Melder einen lauten Alarm an der Alarmeinheit auslösen soll. Im Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 14 4. Beide Schalter in der "OFF"-Position (wie im Bild 2 zusehen). Es besteht eine 5 Minuten Wartezeit zwischen 2 Bewegungswahrnehmungen. Das LED Kontrolllicht ist ausgeschaltet. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 15 Stromadaptor ist nicht im Lieferumfang enthalten. Standby Stromaufnahme: <50uA Arbeitsstrom:<20mA Detektionsbereich: 4-8 m/110 Grad Winkel Reichweite: 100m ( Open Area ) Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 16 Transmission Frequenz: 433MHz Material: ABS Umgebungsluftfeuchtigkeit: <80% Grössenangaben: 106x67x45mm Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 17 3 batterie, 1.5V tipo AAA, alcaline 1 attacco a sfera 2 viti 1 manuale d’istruzioni per l'uso Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 18 è elevato. Se ci sono due rilevatori nella stessa gamma di rilevazione, si prega di regolarne la posizione per evitare interferenze e falsi allarmi. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 19 1. Dopo l'installazione, porre l'interruttore su ON. Ora, camminare o muoversi davanti al sensore PIR ad una distanza compresa tra i 3 e i 6 Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 20 (ad esempio, un cacciavite). Ora si può vedere la scheda con i 2 interruttori. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 21 Questa modalità non è tuttavia consigliata quando è stata selezionata un'impostazione audio Suoneria sull'Unità di Allarme. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 22 LED non lampeggerà. Funzione di Promemoria per Scarsa Energia: La spia si accende Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 23 Corrente Standby: <50uA Corrente Funzionamento:<20mA Gamma Rilevamento: 4-8 m/110 gradi d’angolo Distanza Wireless: 100 metri (spazio aperto) Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 24 Frequenza Wireless: 433MHz Materiale dell’Involucro: ABS Umidità di Funzionamento: <80% Dimensioni Rivelatore: 106x67x45mm Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 25 3 x piles alcalines 1,5V de type AAA 1 x fixation à rotule 2 x vis 1 x mode d'emploi Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 26 éviter les interférences et les fausses alarmes. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 27 1. Après l'installation, mettez l'interrupteur sur ON. Maintenant, marchez ou déplacez-vous devant le capteur PIR à une distance comprise entre 3 Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 28 2 parties (partie avant et arrière) à l'aide d'un dispositif approprié (visseuse par exemple). Maintenant vous pouvez voir le circuit imprimé Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 29 Ce mode n'est toutefois pas conseillé lorsque vous avez sélectionné un réglage du son Carillon sur votre unité d'alarme. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 30 PIR est inférieure à 2,4V, sauf si la lumière a été éteinte en réglant les commutateurs internes. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 31 Distance sans fil : 100m (zone ouverte) Fréquence sans fil : 433MHz Matériau du boîtier : ABS Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 32 Humidité de travail : <80%. Taille du détecteur : 106x67x45mm Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 33 3 x pilas, 1.5 V tipo AAA, alcalinas 1 x montaje de rótula 2 x tornillos 1 x instrucciones de uso Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 34 Si hay dos detectores en el mismo rango de detección, ajuste la posición para evitar interferencias y falsas alarmas. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 35 ángulo de 90 grados con respecto a la dirección de marcha de una persona. Prueba Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 36 Youtube. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 37 LED siempre parpadeará si se detecta movimiento. Estas son las configuraciones más comúnmente usadas. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 38 PIR sea inferior a 2,4 V, a menos que se haya apagado la luz mediante el ajuste de los interruptores internos. Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
  • Page 39 Distancia inalámbrica: 100 m (área abierta) Frecuencia inalámbrica: 433MHz Material de la carcasa: ABS Humedad de trabajo: <80% Tamaño del detector: 106x67x45mm Copyright © 2019 Tiiwee. All rights reserved. This manual or any portion thereof may not be reproduced or used in any manner whatsoever.
