Product Overview - Receiver - LEGRAND C2G Manual

HDMI HDBASET + USB-B AND RS232 OVER CAT EXTENDER SINGLE GANG WALL PLATE
TRANSMITTER TO BOX RECEIVER - 4K 60HZ
Product Overview

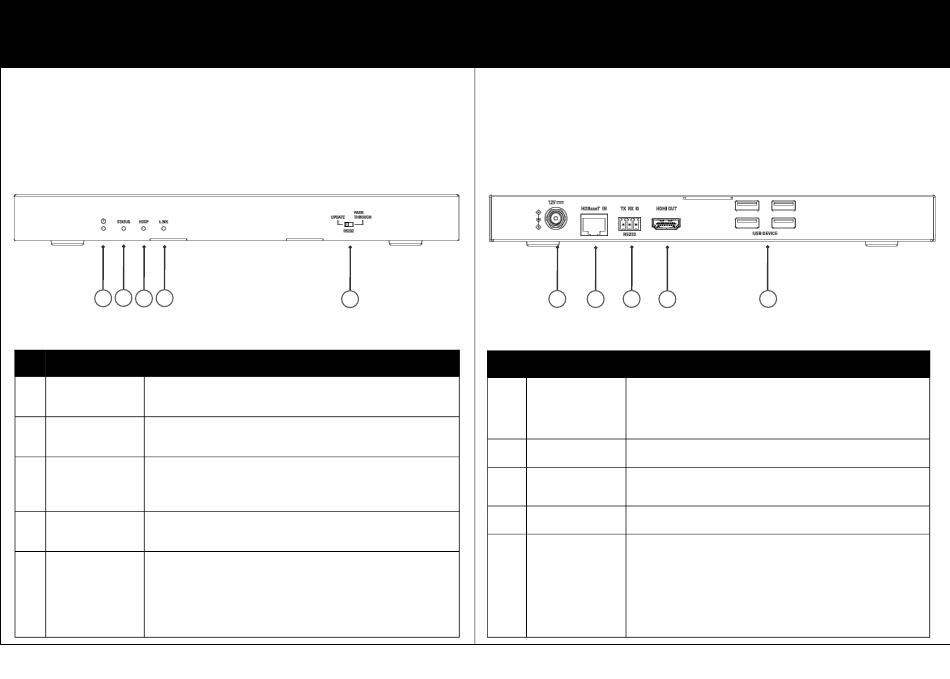

Front Panel
2 4
1 3
F P D
RONT ANEL ESCRIPTION
On: Power is applied to the device.
1 Power LED
Off: No power is applied to the device.
Blinking: The device is working properly.
2 Status LED
Off: The device is not working properly.
On: HDCP protected content is being transmitted.
3 HDCP LED Blinking: Non-HDCP protected content is being transmitted.
Off: No content is being transmitted.
On: HDBT link is normal.
4 Link LED
Off/Blinking: No HDBT link or link error.
Set the function of RS232 port.
RS232 Pass-through: RS232 port is used to RS232 command pass-
5
DIP Switch through over HDBT.
Update: RS232 port is used to upgrade Valens firmware.
Receiver
5
Rear Panel
6 8
7
R P D
EAR ANEL ESCRIPTION
Connect to the power adapter provided. With one-Way PoH
6 DC 12V function supported, one power adapter is needed to connect
to the receiver to power both units.
7 HDBT IN Connect to the transmitter via a Cat 5e/6/6a/7 cable.
Connect to a RS232 enabled device for RS232 pass-through
RS232
8
or firmware upgrade.
HDMI OUT Connect to an HDMI display device.
9
Connect to USB devices (e.g. keyboard, mouse, USB
camera, USB flash drive, etc.).
USB Device
10
Note: USB ports support the USB 2.0 standard with a
maximum of 5V/500mA. Before connecting a USB 3.0
device, confirm its compatibility with USB 2.0.
3
Receiver
10
9
