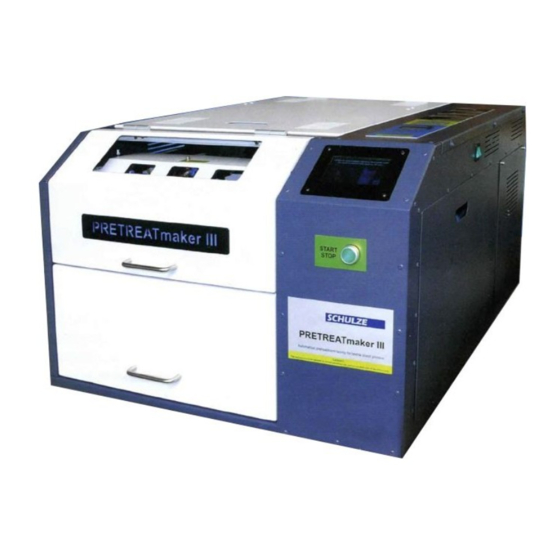

PRETREATmaker III
Initial Setup
1. Do not install the nozzles until the very end of the initial setup listed below.
2. Place Deposit Tank (waste tank) on floor behind machine. Attached the hose provided.
Trim the hose so it has no loops or kinks in the hose.
3. Fill the Bottle Distilled Water tank with 1 gallon of distilled water (This is located on the
right hand side of the unit behind the removable door)
4. Put two parts distilled water and one part pretreat in the Precoating tank and swirl
around to fully mix for approximately 1 minute. You may wish to take a paper towel and
cover the breather hole at the back of the tank when doing this to minimize any liquid
coming out of the tank.
5. On the LCD Panel turn on all 4 nozzle zones. Attach the black hose (precoating hose) to
the Distilled Water tank. Press and hold the Precoating button until the distilled water fills
all 4 lines. This needs to be done to remove any air bubbles or containments from the
lines.
6. To load the pretreat reconnect the black line to the precoating tank and pressing the pre-
coating button until the line is full of white solution. This normally will take about 30
seconds for the line to become filled.
7. Insert nozzles into the yellow quick exchange caps placing the rubber washer over the
nozzle. Connect each of the quick exchange/rubber washer/nozzle assemblies onto the
bottom of the black spray valves. They get secured by turning 90 degrees to lock into
place.
Calibration
1. Ensure that the unit is setup in inches by going to maintenance and touching the
American flag if the unit is not currently setup in this manner.
2. Setup conditions as follows. These are a starting points and adjustments may be
necessary. Adjust the pressure and/or volume until you achieve correct gram value.
Condition Volume
F1 (Dark) 1
F2 1
(Med)
F3 (Light) 2
GT DIGITAL GARMENT PRINTERS
1-877-4BROTHER or Enter a
Pressure Passes
125% (+25%) Bidirectional
90% (-10%) Bidirectional
125% (+25%) Unidirectional
Support Ticket
Begin Length
11 13
11 13
11 13
