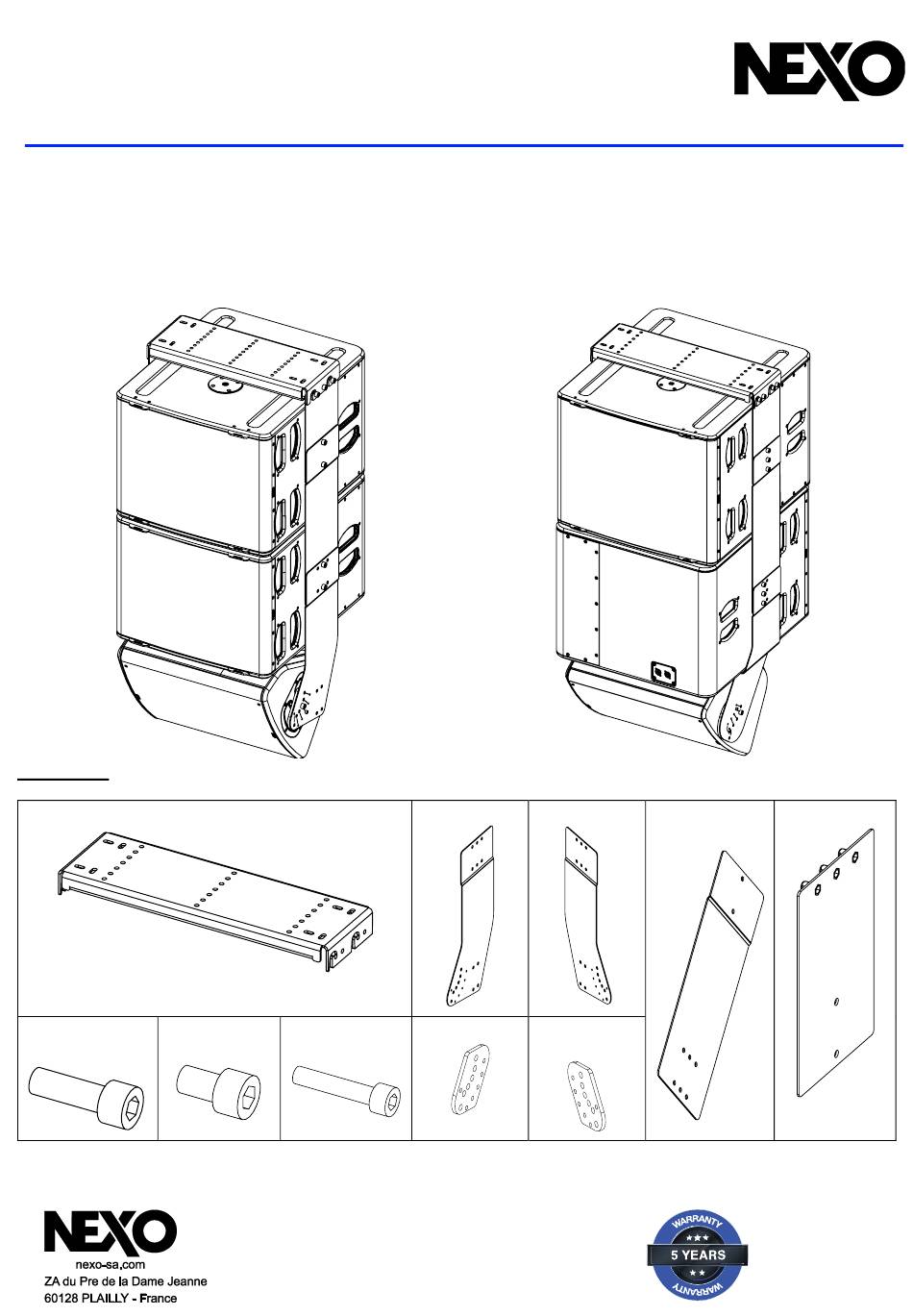

2PNI-P12TO2L15
DP5816 - 01 - DI
P12 Under 2xL15 Rigging System
Contents:
X1
Ceiling Plate
X8
X8
M10x30
Weight: 22.5 kg / 49.5 lb
X2
M10x16
M6x30
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
X1
X1
Left Plate
Right Plate
X1
X1
Left spacer
Right
spacer
X2
X2
L15 Plate
Main Plate
PAGE 1 OF 4
Advertisement
Related Manuals for Nexo 2PNI-P12TO2L15
Summary of Contents for Nexo 2PNI-P12TO2L15
- Page 1 2PNI-P12TO2L15 DP5816 - 01 - DI P12 Under 2xL15 Rigging System Contents: Ceiling Plate Left Plate Right Plate L15 Plate Main Plate M10x30 M10x16 M6x30 Left spacer Right spacer Weight: 22.5 kg / 49.5 lb - Read t his docum ent before using.
- Page 2 Dimensions: For fixation, you have the choice between M8 and M10 (Fasteners not provided) WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Implementation of L15 Prepare the Main plates by screwing the M10x30 screws on the holes (see picture below), do not tighten completely and leave at least 6mm.
- Page 3 Assembly on the ceiling plate Place the assembly below the ceiling plate. Tighten the screws. Secure with the 2 provided M10x30 screws. Implementation of P12 Place the adhesive left Place the adhesive right rubber Place P12 between the plates, position at the chosen angle, rubber pad on the left plate.
- Page 4 -35° -45° -55° • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
