Before You Begin
This Quick Installation Guide gives you step-by-
step instructions for setting up your DWM-313
4G LTE M2M Router. The model you have
purchased may appear slightly different from
the one shown in the illustrations. For more
detailed information about the router, please
refer to the User Manual.

Package Contents

This DWM-313 package should include the
following items:
• DWM-313 4G LTE M2M Router
• AC adapter with 5.5 mm DC connector
• RJ-45 cable
• 2 x external LTE antennas
• 1 x external Wi-Fi antenna
• Quick Installation Guide
• RS-232 cable (optional)
• Warranty Card
If any of the above items are damaged or
missing, please contact your local D-Link reseller.
Note: Using a power supply with a different
voltage than the one recommended for the
device will cause damage and void the warranty
for this product.

System Requirements

• Microsoft Windows®, or a Linux-based
operating system
• An available Ethernet port
• Microsoft Edge, Firefox 60.0, or Chrome
68.0.3440.106
Quick Installation Guide

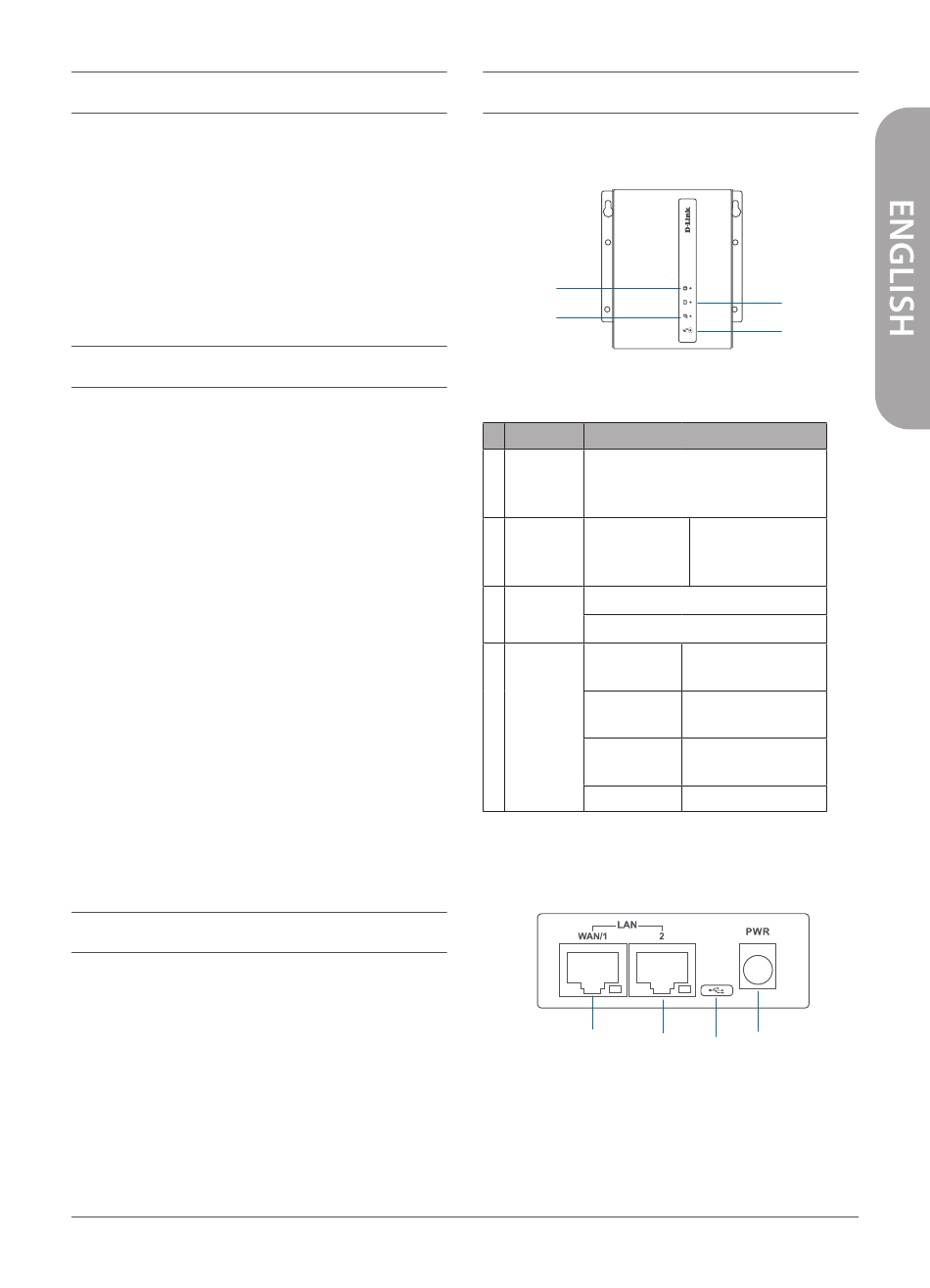

Hardware Overview

Top Panel LED Indicators
1
3
Figure 1: Top Panel LED Indicators
# LED
A green light indicates that a WAN
1 Internet
Ethernet or LTE connection is
established.
Flashing Blue Data packets
2 RS-232
OFF: Wi-Fi radio is disabled.
3 Wi-Fi
ON: Wi-Fi radio is enabled.
Blue
Amber
Signal
4
Strength
Red
Flashing Red No signal.
Table 1: Top Panel LED Descriptions
Front Panel Interface Connectors
1 2
Figure 2: Front Panel Interface Connectors
2
4
Description
transmitted via
serial port.
Signal strength is at
51-100%.
Signal strength is at
25-50%.
Signal strength is
<25%.
3 4
1
