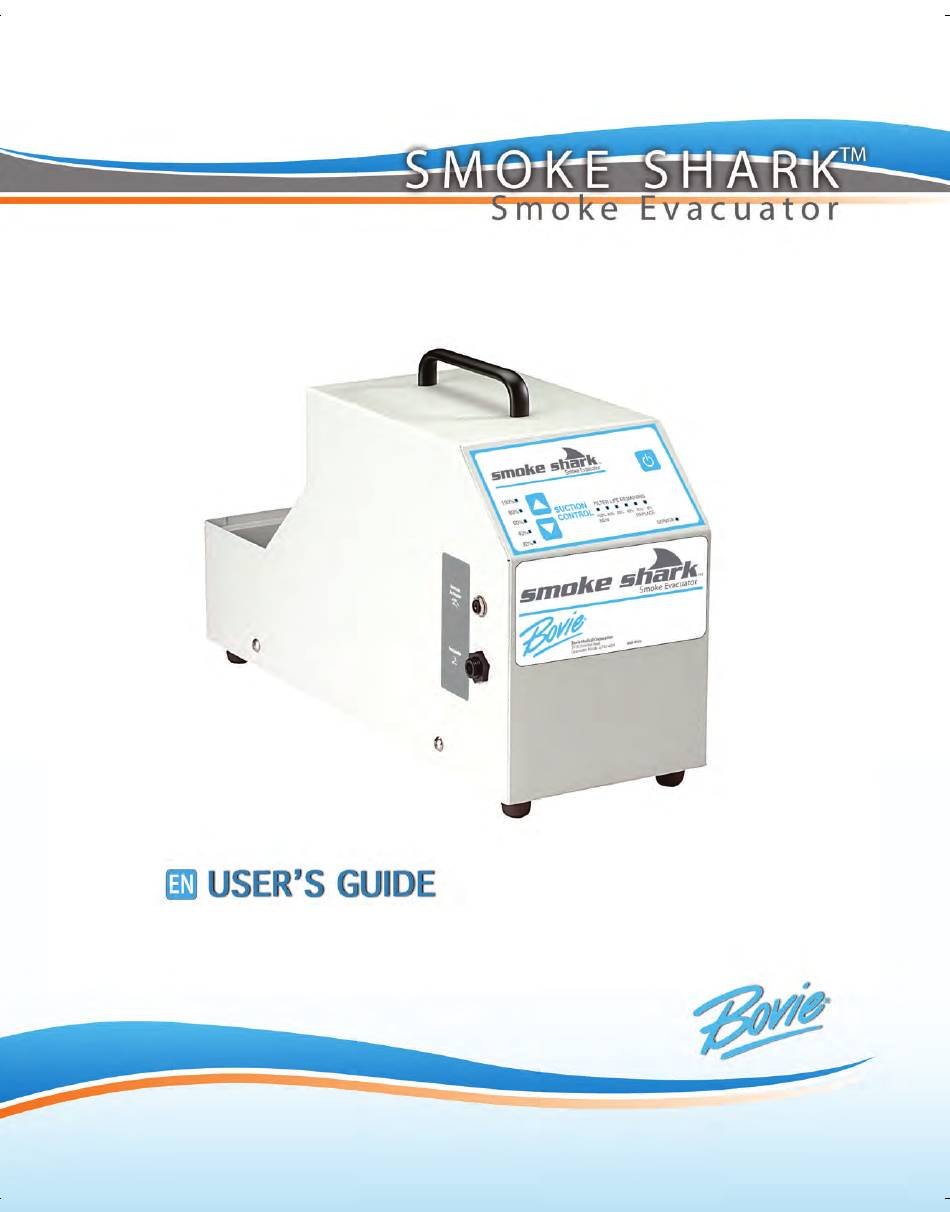

- Page 2 USER’S GUIDE User’s Guide • Bovie Smoke Shark ™ Surgical Smoke Evacuator...
-
Page 3: Table Of Contents
General Maintenance Information: ..............10 Cleaning: ......................10 Periodic Inspection: ....................10 Troubleshooting the System: ................10 Customer Service ......................11 Equipment Return: .....................11 Ordering Information: ..................11 Bovie® Accessories: ..................11 Specifications: ....................11 Shipment of Order: .....................11 Return of Material: .....................11 Exceptions: ......................11 Limited Warranty .......................12 Warranty: ......................12 Consequential Damages/Limits of Liability: ............12... -
Page 4: Introduction

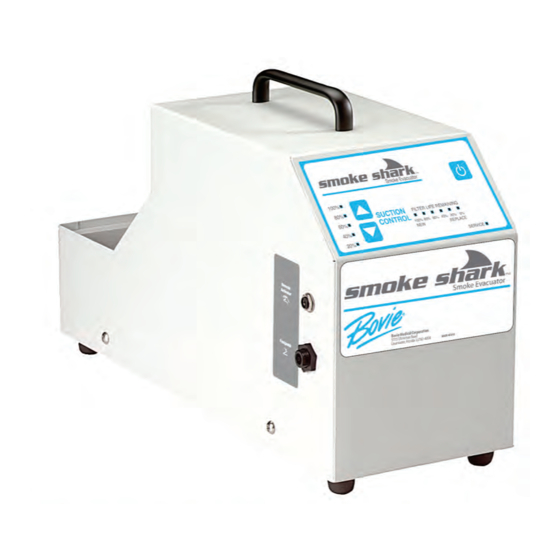

INTRODUCTION The Bovie® Smoke Evacuator System (SE01) is designed to remove smoke and noxious odors produced by surgical smoke during laser and electrosurgical procedures. The smoke evacuator system has been designed with a high-suction, high-flow rate centrifugal action pump. The ultra-quiet motor is used to draw the surgical smoke from the surgical site through the vacuum tubing and into the SF18 filter where the surgical smoke is processed by a series of filters. -
Page 5: Operational Information
7. The smoke evacuator system has a classification under the UL2601-1, Clause 5.6 according to the mode of oper- ation: Continuous Operation. 8. The fuses on the circuit board are to be serviced by an authorized Bovie Medical Corporation technician. The smoke evacuator system and all filters and accessories are not intended for contact with patients. -
Page 6: Cautions And Warnings
Care must be exercised in the installation of hoses, adapters and suction canisters. Failure to follow the procedures outlined in this manual may result in overheating of the motor and may void the unit warranty. User’s Guide • Bovie Smoke Shark ™ Surgical Smoke Evacuator... -
Page 7: Operating Instructions
Each time either arrow button is pressed the suction will increase or decrease by 10%. When two lights are lit on the flow suction indica- tor, the actual air flow is the value between the two illuminated percentages. Bovie Medical Corporation... -
Page 8: Footswitch/Remote Switch Activator (Membrane Control Panel)
SF18 filter or the smoke evacuator system, fluid collection devices must be installed with the vacuum hose assembly. Failure to install a fluid collection device may cause filter blockage and/or electrical damage. User’s Guide • Bovie Smoke Shark ™ Surgical Smoke Evacuator... -
Page 9: Filter Removal Instructions
Releasing either the CUT or COAG button on the Smoke Evacuating Pencil (If Remote Activator is connected). 9. Replace the SF18 filter when the Filter Life Remaining Scale FLASHES RED (0% Life Remaining). Failure to change the filter will affect the performance of the system. Bovie Medical Corporation... -
Page 10: Specifications For Smoke Evacuator System
Service Required Voltage available 100/120/220/240 volts frequency 50/60 Hz H x W x D 10 x 6.5 x l8 inches 25.4 x 16.5 x 45.7 cm Weight, lbs. (kg) 14.8 (6.7) User’s Guide • Bovie Smoke Shark ™ Surgical Smoke Evacuator... -
Page 11: Maintenance
5. Main power switch in OFF 4. Check main power switch on rear position or side of system to ensure that it is 6. Filter life expired or invalid filter in the ON (|) position. installed. Figure 2 - Troubleshooting Tables Bovie Medical Corporation... -
Page 12: Customer Service
Bovie Medical Corporation’s responsibility ceases with the safe delivery to the carrier at our dock. If the merchandise is damaged in transit, a claim must be made to the carrier involved, Bovie Medical Corporation will assist customers in pursuing these claims. -
Page 13: Limited Warranty
LIMITED WARRANTY For a period of two (2) years following the date of delivery, Bovie Medical Corporation warrants the smoke evacuator system against any defects in material or workmanship. This warranty is void if the product is used in a manner or for purposes other than intended. -
Page 14: Symbol Key
CAUTION: Electric shock hazard. Do not remove cover. Refer servicing to qualified service personnel. Before connecting, read instructions. Type CF equipment. IPX1 Protect against dripping water. Alternating current. Footswitch accessory Remote Switch Activator accessory User’s Guide • Bovie Smoke Shark ™ Surgical Smoke Evacuator... - Page 15 Bovie Medical Corporation...
- Page 16 2012-07-27...
