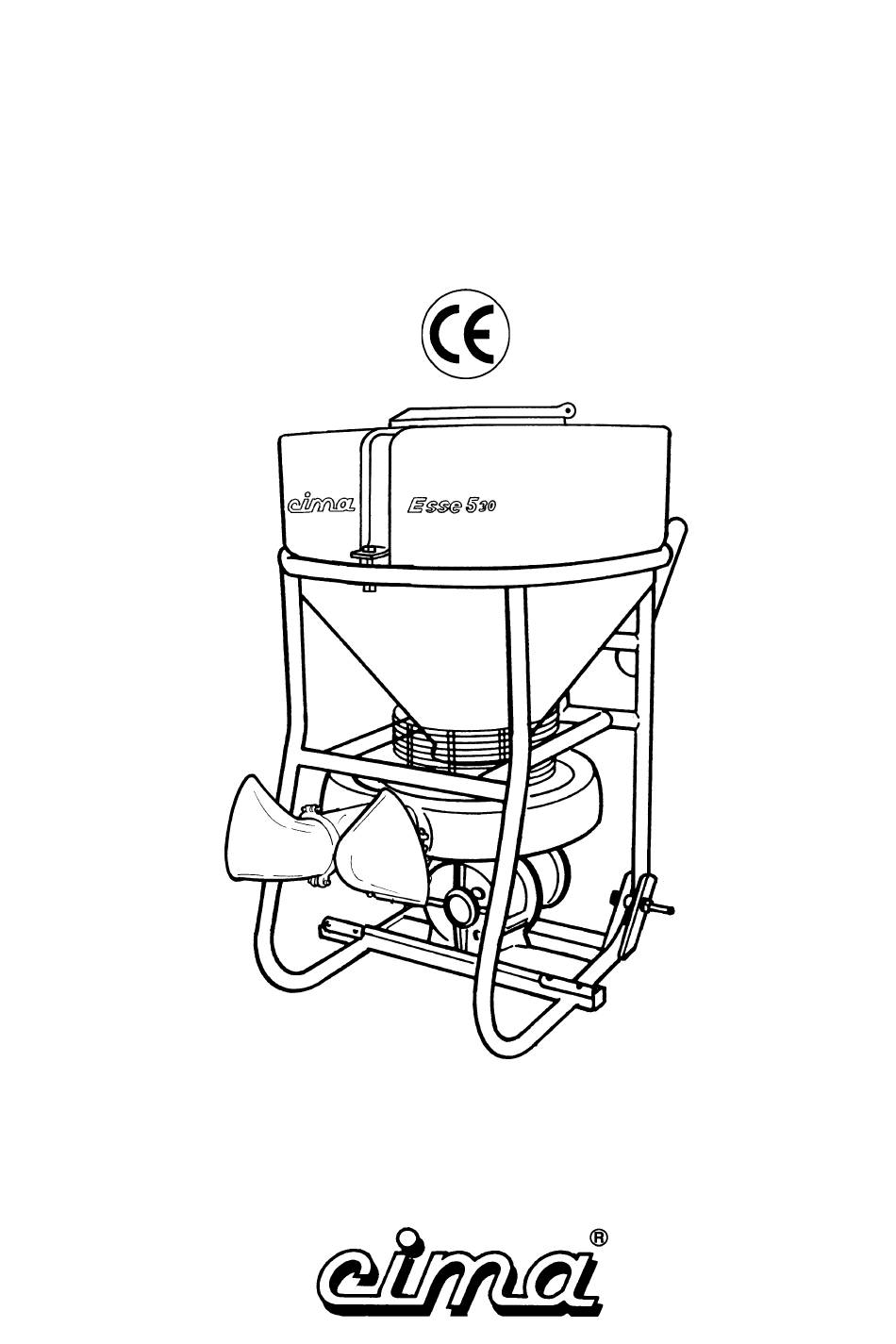

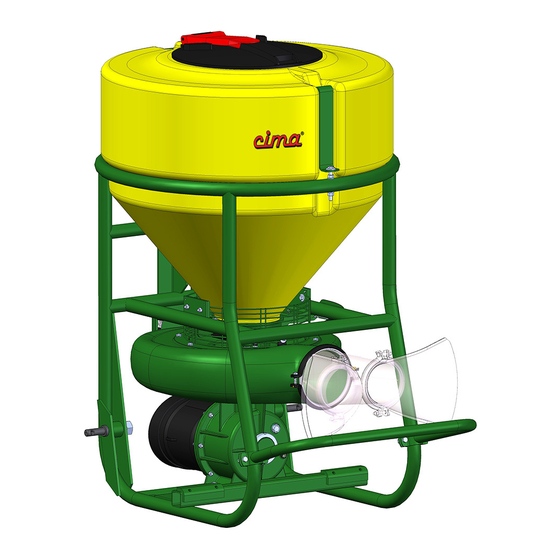

- Page 1 3-POINT MOUNTED DUSTER UMS53001 INSTRUCTIONS FOR USE AND MAINTENANCE S.p.A.
- Page 2 Publication NO. UM. S420, MARCH 1996 S.p.A. 27047 S. MARIA DELLA VERSA - PV - ITALIA Via Sicilia, 2- Tel.: 0385/278223 a.s. - Fax: 0385/798184 All rights reserved. Reproduction, even partial, without the written authorization of Cima S.p.A. is forbidden.
- Page 3 ! Our first goal, is to get our Customers happy for having met us! The “Spare parts catalogue” of this duster is available in the “restricted area” on website www.cima.it. In order to accede, use: User name: duster Password: 546236NQ...
- Page 4 3-POINT MOUNTED DUSTER Serial No.: .............. INSTRUCTIONS FOR USE AND MAINTENANCE S.p.A. 27047 S. MARIA DELLA VERSA - PV - ITALIA Via Sicilia, 2 - Tel.: 0385/278223 a.s. - Fax: 0385/798184...
- Page 5 LIST OF VALID PAGES This publication is composed of 27 pages divided in the following manner: PAGE NO. REVISION ISSUE DATE from I to IV March 1996 from 1 to 23 March 1996 REGISTRATIONS OF ADDITIONS AND CHANGES REVISION DESCRIPTION First Edition, March 1996 ESSE 5 3-1996...
-
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........................1 IDENTIFICATION OF THE PUBLICATION ..................1 PUBLICATIONS ATTACHED ......................1 PURPOSE OF THE PUBLICATION ....................1 REGULATION REFERENCES ......................1 USE OF THE MANUAL ........................1 UPDATES ............................2 GLOSSARY ............................. 2 TERMINOLOGY ..........................2 ABBREVIATIONS .......................... - Page 7 OPERATIONS PRIOR TO TREATMENT ..................15 OPERATIONS IN PREPARATION FOR TREATMENT ..............16 TREATMENT ..........................16 END OF TREATMENT - STORAGE ....................17 9.4.1 Daily ............................... 17 9.4.2 End of Seasonal Cycle ........................17 LIFTING AND TRANSPORT ......................17 MAINTENANCE OPERATIONS ....................18 11.1 GREASING ............................
-
Page 9: Introduction
INTRODUCTION 1.1 - IDENTIFICATION OF THE PUBLICATION The manual "INSTRUCTIONS FOR USE AND MAINTENANCE" is an official document issued by C.I.M.A.S.p.A. and is considered an additional part of the duster. The manual displays a publication number on the third cover page which allows for identification, tracing and reference. -
Page 10: Updates
In the course of the text, we have used some symbols to highlight and visually distinguish the importance of the different kinds of information. Graphic representation and meaning of the symbols: Means important supplementary information. The non-observance of the instruction given herein may cause damage to the duster which can be irreparable. -
Page 11: Abbreviations
2.2 - ABBREVIATIONS CV ................................horsepower dB(A) ................................decibels g/1' ............................revolutions per minute kg ................................kilograms km ................................kilometers km/h ............................kilometers per hour kW ................................kilowatts L qA ............................equivalent sound level lt ..................................liters m ..................................meters /h .......................... - Page 12 THE 5-FIGURE NUMBERS ARE THE CODES TO BE USED FOR REQUESTING DECALS. Front view Rear view UMS53002 UMS53003 95001 95005 95011 LASCIARE LA FRIZIONE DOLCEMENTE DECLUTCH GENTLY KUPPLUNG LANGSAM KOMMEN LASSEN DEBRAYER DOUCEMENT SOLTAR EL EMBRAGUE SUAVEMENTE 95053 95059 95006 95010 95068 Positions of the safety, use and maintenance decals...
-
Page 13: General Information
GENERAL INFORMATION 3.1 - IDENTIFICATION OF THE MACHINE UMAP001 Identification nameplate UMS53011 3.2 - TECHNICAL ASSISTANCE C.I.M.A. S.p.A. is at its customers' full disposal for any kind of intervention. The names and addresses of its assistance centers, in Italy and abroad, may be requested at: C.I.M.A. -
Page 14: Safety Devices
— use only transmission joints with protection devices, accompanied by EEC statement of conformity. Carry out the assembly only if the power take-off of the tractor and duster is equipped with a counter guard. — check that the protection device of the transmission joint is fastened with the appropriate anti-rotation chains; —... -
Page 15: Handling Of Phytopharmaceuticals
3.5 - HANDLING OF PHYTOPHARMACEUTICALS The operator may be contaminated either by contact with or inhalation of the products and mixtures to be distributed. The environment may be polluted by the spillage of the products, the careless conservation of empty or unwashed packages, and by pouring the products into the water system. -
Page 16: Personal Protection Means
3.5. - Personal protection means The toxicity of phytopharmceuticals compels the people using them to wear adequately protective clothing and accessories to avoid the risks of contamination by contact or inhalation. During the filling operation, use protective glasses, masks and gloves. The operators must wear: —... -
Page 17: Structural Analysis Of The Machine
STRUCTURAL ANALYSIS OF THE MACHINE The picture shows the position of the duster. TANK TANK OUTLET BOTTOM UMS53004 GUARD PROTECTION SCREEN GREASER SIGHT PLUG SERVICE PLUG UMS53005 FRAME PdP PROTECTION COUNTER-GUARD MULTIPLIER OIL DE- SCHARGE PLUG Transported duster, main components ESSE 5 3-1996... -
Page 18: Tank
4.1 - TANK — Tanks and lids are in polyethylene. — Rubber closing tab. — S420: lt 200 - S430: lt 300. - Before opening the lid, stop the tractor and take the key out of the control panel. - Check that the lid is closed before starting the tractor again. 4.2 - TANK BOTTOM —... -
Page 19: Technical Data
4.7 - TECHNICAL DATA - Dimensions and weights without head — LENGTH in mm....................ESSE 520 1235-ESSE 530 1235 — WIDTH in mm....................ESSE 520 935-ESSE 530 — HEIGHT in mm.....................ESSE 520 1440-ESSE 530 1590 — NO-LOAD WEIGHT without head kg...............ESSE 520 136-ESSE 530 138 —... -
Page 20: Drive Joint Assembly
Stop the tractor and take the key out of the control panel. 4. Insert the machine gudgeons in the articulated wheels and lock them with the release pins. 5. Take the tension rod off of the tractor’s 3rd point and mount it on the machine, locking it with the release pin. 6. -
Page 21: Distribution Devices
DETERMINING LENGTH Line the PdP up perfectly on the same axis and measure the distance “D” between their grooves. The length “L” of UMS4010 the drive joint to be used, measured between the two stop keys and with transmision closed, should be 25 mm shorter than the distance “D”... -
Page 22: Loading Procedures
LOADING PROCEDURES IT IS ALWAYS NECESSARY TO USE PERSONAL PROTECTION MEANS: OVERALLS, GLASSES AND MASKS. 7.1 - WITH A NEW DUSTER OR AT THE BEGINNING OF EACH TREATMENT 1. Before filling the tank, loosen the fastening handle on the adjustment. Bring the square indicator-tab to number 6 and block it again. -
Page 23: Constant Delivery Control
CONSTANT DELIVERY CONTROL The products to be used with the duster have physical characteristics that can be stongly modified by the temperature and humidity conditions at the moment of treatment. Therefore, it is not possible to obtain and set reliable delivery amounts corresponding to the various opening indexes of the delivery holes on the tank bottom. -
Page 24: Operations In Preparation For Treatment
9.2 - OPERATIONS IN PREPARATION FOR TREATMENT. THE LOADING SHOULD BE DONE WITH THE MACHINE ON A FLAT SURFACE THE OPERATOR MUST: Stop the tractor and take the key out of the control panel before lifting the lid. Check that the lid is closed well before re-starting the tractor. -
Page 25: End Of Treatment - Storage
The multiplier should work with the power take-off at 450 rpm. This limit must never be exceeded during the use of the machine. a. Use personal protection identical to that advised for the mixture, preparation and loading, if the tractor does not have a pressurized cab with aeration filters. -
Page 26: Maintenance Operations
• It is necessary to duplicate the license plate and the rear lights of the tractor if they are covered by the machine. The operator must respect the laws for the use of the machine existing in the country where it is working. -
Page 27: Greasing
11.1 - GREASING At the beginning of the treatment season and after every 50 hours work, grease the felt seal with EP type NGL2 class grease. UMS53002 - Accurately clean the greaser before use: dirt could be introduced together with grease. - In case of intensive use of the machine, increase the lubrication periods. -
Page 28: Trouble Shooting
OR ON ITS OPERATION. THIS WOULD MEAN THE IMMEDIATE LOSS OF THE EXISTING RIGHTS OF WARRANTY AND WOULD FREE CIMA S.p.A. OF ANY CONSEQUENT RESPONSABILITY. ALL INTERVENTIONS THAT THE MACHINE MAY REQUIRE SHOULD BE CARRIED OUT BY A CIMA AFTER-SALE SERVICE CENTER. -
Page 29: Diagram Of The Duster
DIAGRAM OF THE DUSTER DELIVERY POWDER HOLES MIXER TANK ADJUSTMENT SHUTTER UMS52010 OUTLET DELIVERY ADJUSTMENT CONTROL UMS53001 AERIAL NOISE L qA: Observed equivalent average sound level, expressed in dB(A)= 98,9 0,2 ESSE 5 3-1996... -
Page 30: Warranty
OR ON ITS OPERATION. THIS WOULD MEAN THE IMMEDIATE LOSS OF THE EXISTING RIGHTS OF WARRANTY AND WOULD FREE CIMA S.p.A. OF ANY CONSEQUENT RESPONSABILITY. The machines are guaranteed for 12 months from the date of delivery. During this time, the parts that are not normally subject to wear and that are found defective will be replaced free of charge, except for transport and workmanship costs. -
Page 31: Enclosed: Statement Of Conformity
ENCLOSED: STATEMENT OF CONFORMITY ESSE 5 3-1996... - Page 33 S.p.A. 27047 S.MARIA DELLA VERSA - PV - ITALIA Via Sicilia,2 - Tel. 0385/278223 r.a. - Fax 0385/798184...
