- Page 1 WheelWitness HD PRO Mark II Dual HD Dash Camera User Manual The information in this manual is subject to change without notice.
- Page 2 Failure to comply with safety warnings and regulations can result in serious injury or death. Wheel Witness Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Wheel Witness is NOT responsible for any damages resulting from the user's misuse of the camera.
- Page 3 cause the device to malfunction. Use only the manufacturer-approved power cable specifically designed for your device. Using an incompatible cable can cause serious personal injury or damage to your device. WheelWitness cannot be responsible for the user's safety when using accessories or supplies that are not approved by WheelWitness.
- Page 4 Caution Failure to comply with safety precautions and regulations can result in property damage, serious injury or death. Do not expose the device to heavy smoke or fumes. Doing so may damage the outside of the device or cause it to malfunction. If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and contact a WheelWitness authorized repair...
- Page 5 low-temperature burn symptoms, such as red spots or areas of darker pigmentation. Install mobile devices and equipment with caution. Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted. Avoid placing your device and accessories in or near an airbag deployment area.
-
Page 6: Table Of Contents
Table of Contents About HD PRO Mark II Camera ............8 HD PRO Mark II Layout ..............9 Setting Up for First Time Use ............10 SD Card Requirements .............10 Stealth Hardwiring ..............13 Display Icons (Record Mode) ..........14 Event Triggering ..............16 Snapshot .................16 Menu Operation ................17 Video Menu - Page 1 ..............18 Resolution ................18... - Page 7 Date / Time ...................24 Driver ID Setting (License Plate) ............25 Beep Sound ................25 Language ..................26 Setup Menu - Page 2 ..............26 Time Zone (for GPS optional) ............27 Speed Setting ..................27 Frequency (60HZ - USA) ..............28 Format ................28 Setup Menu - Page 3 ..............29 Default Setting ................
-
Page 8: About Hd Pro Mark Ii Camera

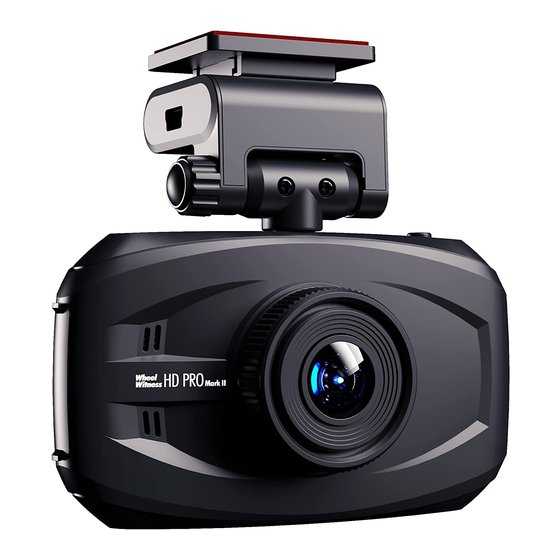

About HD PRO Mark II Camera The HD Pro Mark II is designed to automatically turn ON when it receives power to the DC IN port. It also automatically shuts down and records for a second when the power is shut off (to avoid any sudden power cuts and possibly corrupting data). -
Page 9: Hd Pro Mark Ii Layout
HD PRO Mark II Layout... -
Page 10: Setting Up For First Time Use
Setting Up for First Time Use Optimal installation location and wire routing. Card Requirements Resolution and bit rate of video files required a good quality SD card. The camera requires a minimum Class 10 SD Card. We recommend using a "high endurance micro sd card". Regular SD cards (such as Sandisk Ultra are NOT supported and may cause issues). - Page 11 1. Install the memory Card Into the card (If you have trouble use a penny to push it in.) Memory card not included. 2. Remove the protection tape from the Fixed Plate and install the Plate on the Windshield Glass. (We recommend cleaning the installation area with rubbing alcohol).
- Page 12 3. Slide the camera to the fixed plate and adjust the vertical and horizontal positions. 4. Connect the power cord to the DC IN. Camera power socket 5. Connect the power cord into the cigarette lighter, Socket in your car.
-
Page 13: Stealth Hardwiring
Stealth Hardwiring If you would like a stealth install that you never have to worry about, we sell a hardwire kit. You can use it to tap into your "Accessory" wire and the camera turns on and off with the vehicle. You never have to remember to turn it on. -
Page 14: Display Icons (Record Mode)
Display Icons (Record Mode) 1. Wi-Fi Status. 2. Recording. 3. Video file lock ("Event" function), icon will be active when Event is triggered. 4. Recording time 5. GPS Status (turns green with optional GPS Module only) 6. Function button. Display switch - Front/Rear, Front only, Rear only. (Without optional rear camera rear display mode - black screen). - Page 15 9. External Power Status. 10. Function button. Snapshot. Down in Stop mode. 11. Memory Card (x-no card, or defective card). 12. SSID name and Password. 13. Function button. Save current file (Event). Menu in Stop mode. 14. Exposure Value, "+" brighter, "-"dimmer. 15.
-
Page 16: Event Triggering
Event Triggering In case of emergency or for some other reason when you want to save the recorded moment, simply press the "MENU" button (#1) while camera is recording. The camera displays a KEY symbol on the LCD Display and it will save the previous 10 seconds before the press and 20 seconds after. -
Page 17: Menu Operation
Menu Operation Press "MENU" function button in STOP position](no RED Recording symbol on the display) to activate the Main / menu. Use "CURSOR LEFT" and "CURSOR RIGHT" function buttons to highlight the desired symbol and press "ENTER" function button to open desired menu. -
Page 18: Video Menu
Video Menu - Page 1 Resolution... -
Page 19: Loop Recording
Loop Recording The camera splits the recordings into segmented files for easy transfer/use. Wide Dynamic Range Improves image quality under high-contrast lighting conditions. -
Page 20: Ev Exposure
EV Exposure Exposure Compensation Value (set between +2.0 to -2.0). Video Menu - Page 2... -
Page 21: Motion Detector
Motion Detector Detect Motion in view (set to OFF when moving) Record Audio Turns the Microphone On/Off. -
Page 22: Date Stamp
Date Stamp The current date and time will be "stamped" into the video. G - Sensor Detect sudden change in XYZ axis which will trigger EVENT SAVE. (If too many false alarm whiled riving, please set to OFF) -
Page 23: Video Menu
Video Menu - Page 3 Video Codec A video codec is a software that compresses and decompresses digital video. We recommend H264 for best compatibility. -
Page 24: Setup Menu
Setup Menu - Page 1 Date / Time... -
Page 25: Driver Id Setting (License Plate)
Driver ID Setting (License Plate) You can provide your license plate number or Driver ID here. This number will be stamped into the video at the bottom right corner along with the time and date. Beep Sound Beep Confirmation Sound. -
Page 26: Language
Language Select menu Language Setup Menu - Page 2... -
Page 27: Time Zone (For Gps Optional)
Time Zone (for GPS optional) Set the correct Time Zone (important for GPS accuracy). Speed Setting [unit: M/H] / [unit: KM/H]... -
Page 28: Frequency (60Hz - Usa)
Frequency (60HZ - USA) Light Frequency (anti flickering). 60Hz (USA Standard) 50Hz (European). Format Delete ALL data on memory card! Protected files will also be deleted... -
Page 29: Setup Menu
Setup Menu - Page 3 Default Setting Restore Camera to Default Settings. -
Page 30: Fw Version
FW Version Current Firmware Version Screen Save LCD Shutoff after X time. -
Page 31: Gps (Optional)
GPS (optional) Please allow the camera some time, at least a few blocks to catch the GPS signal. GPS data is embedded into the metadata of the file. Under the main "MENU" you can check GPS Status. -
Page 32: Rear / Backup Camera (Optional)
Rear / Backup Camera (optional) Connect Rear Camera to the front Camera using rear camera hardwire kit. If you don't need to automatically switch camera display to rear when reversing, just then you do not need to connect the red (+) and black (-) wires. - Page 33 Use these connector when connecting the rear camera to the front camera.
-
Page 34: Playback
PLAYBACK Computer Playback Recommended Media Players: QuickTime Media Player / VLC / Windows Media Player. Using an SD card adapter Insert your Micro SD card into an SD card adapter, then insert the SD card adapter into your computer or card reader to access your card storage. -
Page 35: Camera Playback Mode
Camera Playback Mode To play back recordings on your device: 1. Switch Camera to Stop Mode (no RED Recording symbol on the display). 2. Press "Down" function button to deactivate Wi-Fi (no SSID and PWD on the screen). 3. Press "Menu" function button to open general menu. 4. - Page 36 Playback Playback Options...
-
Page 37: Wi-Fi Playback Mode
Wi-Fi Playback Mode Please browse to http://www.wheelwitness.com/app to find more information about how to playback and control this camera from your smartphone. Troubleshooting (Common Issues) Issue Solution Suction Cup Does Stick Make sure to clean the glass with rubbing，mount it on a clean(non- windshield dotted) surface, Put a few drops of water before... -
Page 38: Warranty
Warranty We provide free warranty service for parts and labor within ONE YEAR from the date of purchase. The warranty does not cover: Damage caused by accident, misuse, tampering with or failure to follow the care Water damage Damage and/or scratches to the finish of the case,lens, or LCD ... - Page 39 FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
