The first in the world!
Integrally molded, all-plastic body!
Thin and lightweight!
Exhaust port
iB-ZERO
(Integrated muffler)
Easy assembly
Simple Selection

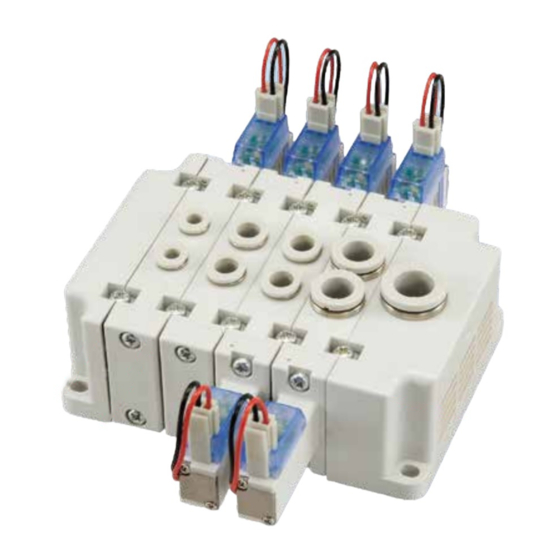

5-port manifold solenoid valve
40
Nearly
smaller
⇦
57%
Nearly
mass than the previous
180 series manifold
Its simple configuration makes assembling the manifold a breeze.
Instant assembly → quick delivery
All are integrated fitting types (select from mm:φ4, φ6,φ8 / in: 5/32 , 1/4 , 5/16)
Perfect for cylinder controls from small diameter to about φ80 [3.150 in]
NEW OPTION!!
Quick fitting for Inch tube added.
●
●
●
Easy assembly!
35.3
mm
1.390
[
in ]
%
less
Previous 180 series
No. BK-P042-③
PAT.PEND.
5/32 inch
1/4 inch
5/16 inch
3/8 inch
（End block only）
●
* Valve width: 18 mm [0.709 in.]
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Koganei IB Series
Summary of Contents for Koganei IB Series

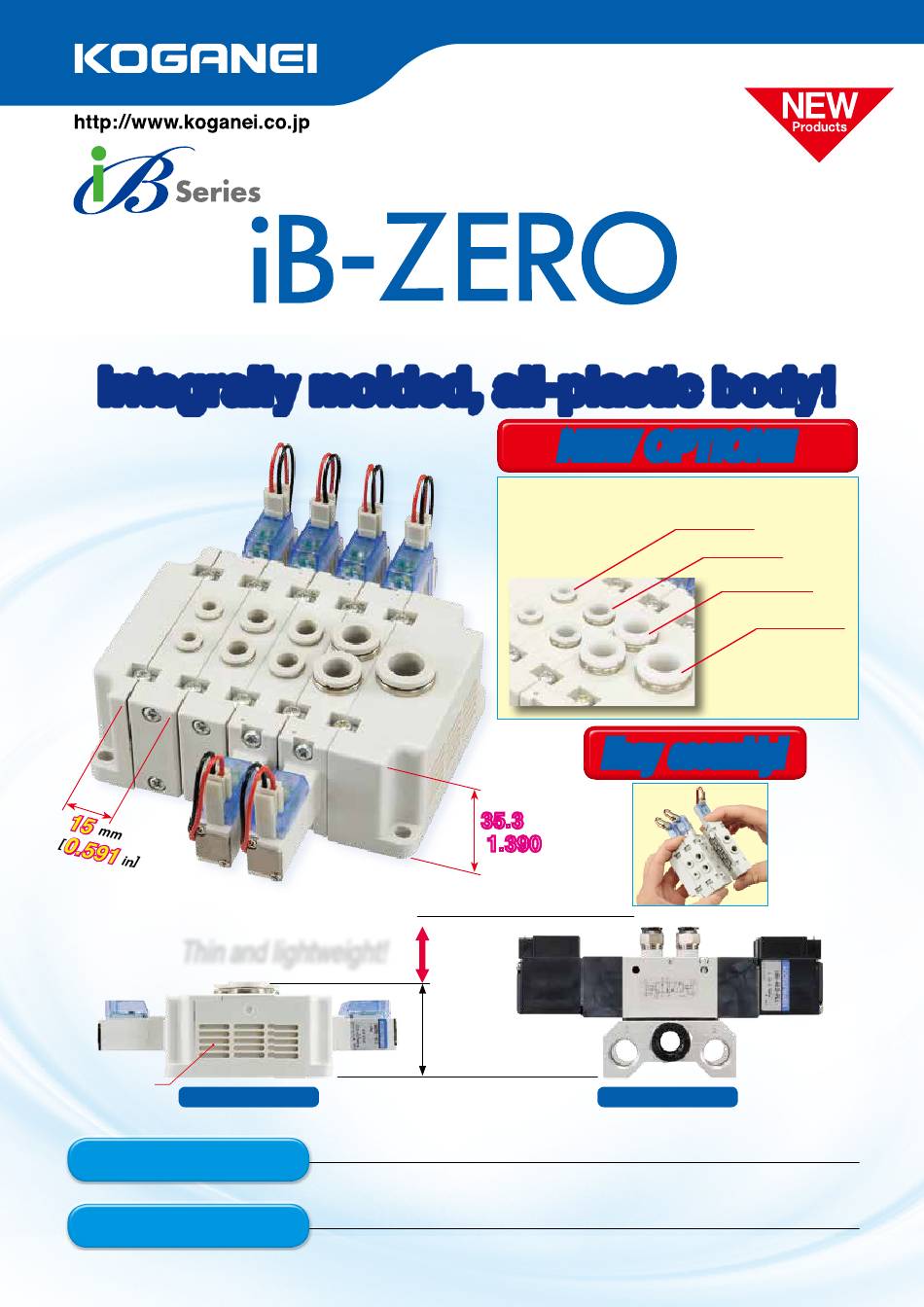

- Page 1 No. BK-P042-③ 5-port manifold solenoid valve PAT.PEND. The first in the world! Integrally molded, all-plastic body! NEW OPTION!! Quick fitting for Inch tube added. 5/32 inch 1/4 inch 5/16 inch ● 3/8 inch ● ● （End block only） ● Easy assembly! 35.3 1.390 in ]...
-
Page 2: Electrical Specifications
Supply port φ10 [0.394], outlet port φ4 [0.157], φ6 [0.236], φ8 [0.315] Note: Value at 500 VDC Megger Connection port size Remark: Specification values are based on Koganei test standards. Supply port 3/8、 outlet port 5/32、 1/4、 5/16 Mass Lubrication... -
Page 3: Order Codes
Order codes ● Single valve unit (The single valve unit cannot be used alone.) ■ Valve specifications ■ Specifications for fittings of pipe ports ■ Wiring specification -J42：quick fitting for φ4 [0.157] tubes -4E1: 5-port, 2-position single solenoid L type plug connector L type plug connector L type plug connector -J62：quick fitting for φ6 [0.236] tubes... - Page 4 Order codes ● Additional parts (available separately) Set of brackets and DIN rail mounting bracket Gasket mounting screws DIN rail DIN - Length of DIN rail 125：125mm 325：325mm 150：150mm 350：350mm 175：175mm 375：375mm 200：200mm 400：400mm IBZR8Z-DN IBZR8Z-GS IBZR8Z-KN DIN- □ 225：225mm 425：425mm （Unit: 1 pcs）...
- Page 5 How to assemble and replace valves Assemble or replace the valves while the manifold body is not fixed. Refer to ③ and ④ when the customer is the one purchasing the end block and valves and assembling the manifold. ① Remove the mounting screws (bracket attached) from the four places (when adding valves, the two places on the top and bottom of where you are adding the valve) on the top and bottom of the valve to replace.
- Page 6 Dimensions mm [in] ■ Single valve unit (With quick fittings for mm tubes) IBZR8-4E1-J□-PL IBZR8-4E2-J□-PL 5-port single solenoid 5-port double solenoid 35 [1.378] 35 [1.378] 15 [0.591] 15 [0.591] (300 [11.8]) 30 [1.181] 30 [1.181] (300 [11.8]) 10.5 10.5 [0.413] [0.413] 10 [0.394] 10 [0.394]...
-
Page 7: Unit Dimensions
Dimensions mm [in] ■Manifold (With DIN rail mounting bracket) IBZR8M□N-DN (With quick fitting for mm tubes) 12 [0.472] 15 [0.591] Ｌ Ｅ Ｄ indicator Manual override 17.5 15 [0.591] (300) 22.5 10.8 Unit dimensions [11.8] [0.886] （Pitch） [0.689] [1.181] [0.425] Number of units Note Note ４... - Page 8 Dimensions mm [in] ■ Single valve unit （With quick fittings for Inch tubes） IBZR8-4E1-J□-PL IBZR8-4E2-J□-PL 5-port single solenoid 5-port double solenoid 35 [1.378] 35 [1.378] 15 [0.591] 15 [0.591] 30 [1.181] 30 [1.181] (300) [11.8] (300) [11.8] 10.5 10.5 [0.413] 10 [0.394] [0.413] 10 [0.394]...
- Page 9 Dimensions mm [in] ■Manifold (With DIN rail mounting bracket) IBZR8M□N-DN-J3/8 （With quick fittings for Inch tubes） ［0.472］ （300） ［ 11.811］ 30 ［ 1.181］ 10.8 ［ 0.425］ LED indicator 22.5 15 ［ 0.591］ Manual override 17.5 ［0.886］ ［0.689］ ［0.591］ (Pitch) ４ （Ａ） Port １...
- Page 10 MEMO ❾...
- Page 11 MEMO ● ❿...
- Page 12 Limited Warranty • KOGANEI CORP. shall in no way be liable or responsible for KOGANEI CORP. warrants its products to be free from defects in material and workmanship subject to the following provisions. injuries or damage to persons or property arising out of the use or operation of the manufacturer’s product.
