INSTALLATION AND MAINTENANCE INSTRUCTIONS

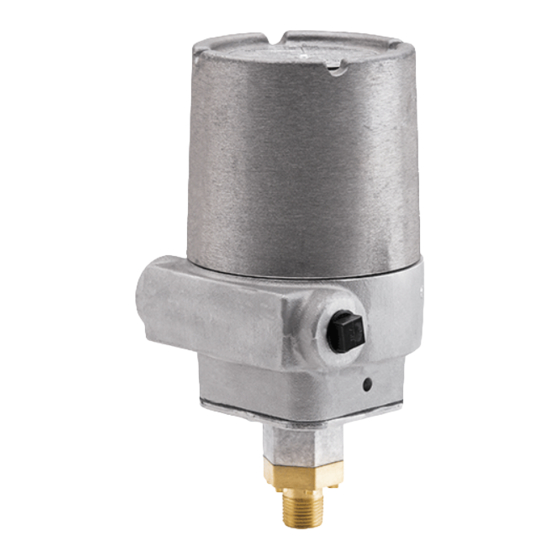

EPS40EXP and EPS120EXP Explosion Proof
Supervisory Pressure Switches
Specifications
Contact Ratings:
Operating Temperature Range:
Maximum Service Pressure (in PSI): 250
Adjustment Range:
Approximate Differential:
Enclosure Rating:
Hazardous Atmospheres
Classification:
Important
Please Read Carefully and Save
This instruction manual contains important information
about the installation and operation of supervisory pres-
sure switches. Purchasers who install switches for use by
others must leave this manual or a copy of it with the user.
Read all instructions carefully before installation, following
only those instructions that apply to the model you are in-
stalling.
Before installing any alarm device, be thoroughly familiar
with:
NFPA 72:
National Fire Alarm Code
NFPA 13:
Installation of Sprinkler Systems
NFPA 25:
Inspection, Testing, and Maintenance of Water-
based Fire Protection Systems
Other applicable NFPA standards, local codes, and the re-
quirements of the authority having jurisdiction.
Failure to follow these directions may result in failure of the
device to report an alarm condition. System Sensor is not
responsible for devices that have been improperly installed,
tested, or maintained.
D770-26-00
Technical Manuals Online! - http://www.tech-man.com
10 A, 1/2 HP @ 125/250 VAC
2.5A @ 6/12/24 VDC
–40° F to +160° F
EPS40EXP
EPS120EXP
250
10-100
10-200
3 PSI @ 10 PSI
3 PSI @ 10 PSI
8 PSI @ 100 PSI
9 PSI @ 200 PSI
NEMA Type 4 — Indoor/Outdoor use
Class I, Groups B, C, D, Div. 1
Class II, Groups E, F, G, Div. 1
Class III, Div. 1
Operation
As pressure changes, a diaphragm actuates 2 snap action
switches. The pressure switch actuation is determined by
adjustment settings.

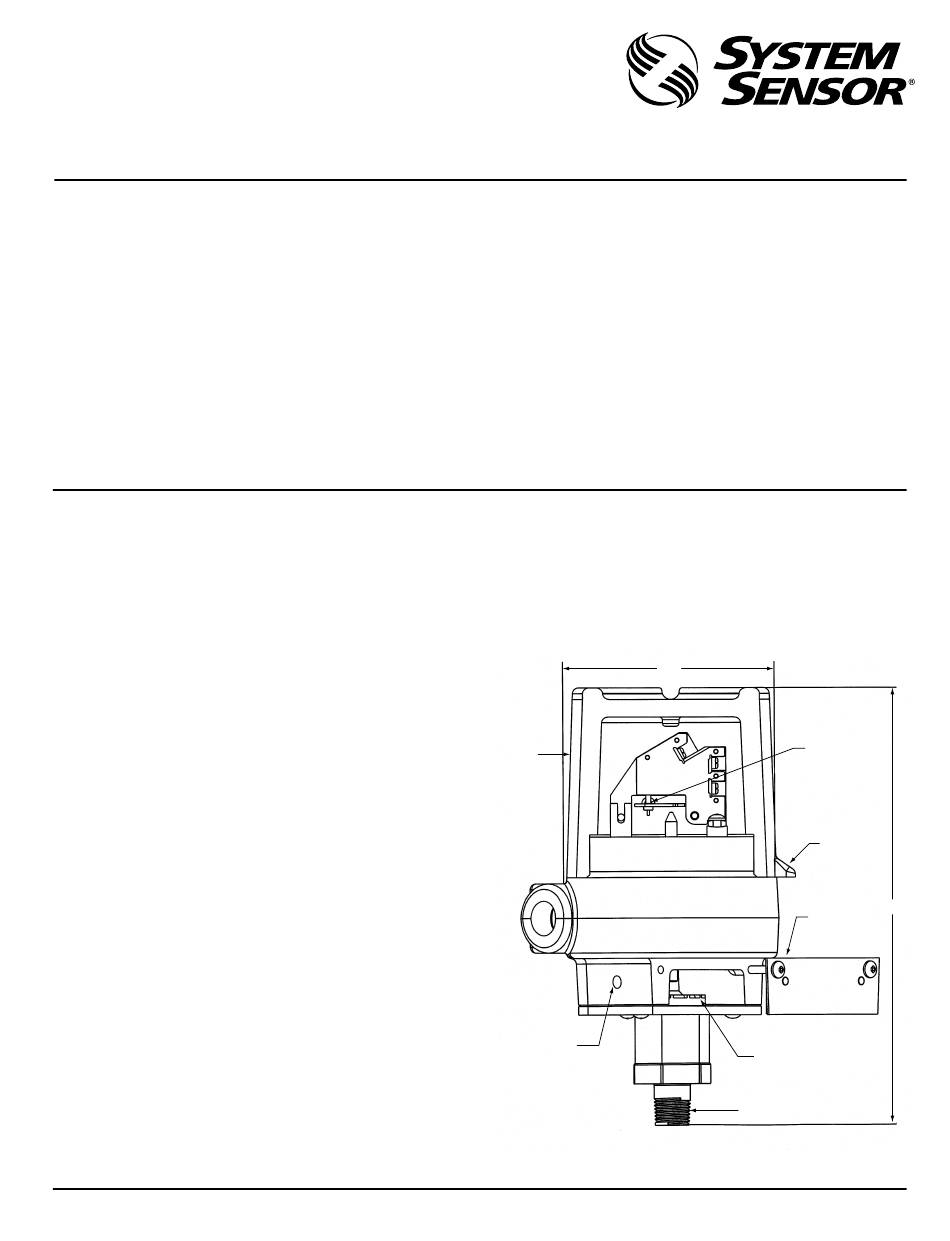

Figure 1. Pressure switch basic dimensions:
COVER
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
4.9"
LOCKING
SCREW
A Division of Pittway
HEX ADJUST
SCREW
1/4" HEX HEAD
COVER
TAMPER
SET SCREW
(WRENCH
PROVIDED)
ADJUSTMENT
WHEEL
9.5"
COVER
(WRENCH
PROVIDED)
MAIN ADJUSTMENT
WHEEL (TURN
COUNTERCLOSKWISE
TO INCREASE
PRESSURE)
1/2" NPT
I56-1428-000
