- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Cold Food Displays Self Serve, Flat Deck Models: W.CFSS.23 / W.CFSSN.23 W.CFSS.24 / W.CFSSN.24 W.CFSS.25 / W.CFSSN.25 W.CFSS.26 / W.CFSSN.26 Revision: A - 28/10/2020...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Your New Woodson Product ........
-
Page 4: Your New Woodson Product
Thank you for choosing this quality Woodson product. All Woodson products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new Woodson product in accordance with these instructions, will provide many years of reliable service. -
Page 5: Warranty And Registration
Introduction Warranty & Registration Australia and New Zealand Warranty Warranty Period Stoddart 12 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase. To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information Warranty Registration To register your new product, go to the Stoddart warranty page: http://www.stoddart.com.au/warranty-registration General Precautions... -
Page 6: Installation

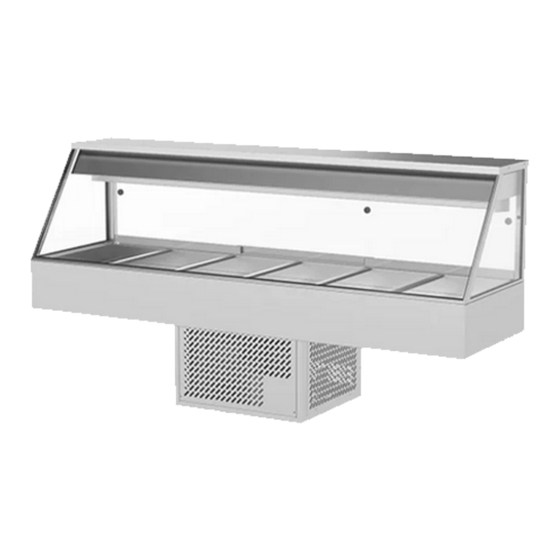

Installation Product Overview IMPORTANT This unit is not designed to cool down products, it only maintains them at the controlled 2°C - 5°C CAUTION This unit includes refrigeration components. Cold surfaces can burn DO NOT touch these surfaces Glass Doors Control Panel Condenser Due to continuous product research and development,... - Page 7 Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) Unpacking •...
- Page 8 Installation Electrical Connection Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body.
-
Page 9: Technical Specification
Specification Technical Specification W.CFSS.xx Specifications Model W.CFSS23 W.CFSS24 W.CFSS25 W.CFSS26 Height 787mm 787mm 787mm 787mm Width 1070mm 1400mm 1720mm 2050mm Depth 800mm 800mm 800mm 800mm Refrigerant R507A R507A R507A R507A Power 0.94kW 0.99kW 1.08kW 1.08kW (10A plug & lead fitted) (10A plug &... -
Page 10: Initial Start-Up & Operation
Operation Initial Start-up & Operation IMPORTANT This unit is not designed to cool down products, it only maintains them at the controlled 2°C - 5°C Controller Initial Start Up • Before switching ON the unit, ensure the unit is installed correctly •... -
Page 11: Temperature Adjustment
Operation Temperature Adjustment • The “Refrigerator” temperature can be set between 2°C - 5°C • Different modes require different temperatures • The temperature probe only measures the temperature of the water/air, NOT the food temperature KEY FUNCTIONS: To display target set point; in programming mode it selects a parameter or confirm an operation. (DEF) To start a manual defrost. - Page 12 Cleaning and Maintenance Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • DO NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •...
- Page 13 Cleaning and Maintenance Cleaning Schedule • Regular cleaning is recommenced for the unit. This will help to maintain and prolong the efficiency of the unit Materials Required • Stainless Cleaner • Non Abrasive Cleaning pad • Clean Sanitised Cloth • Paper Towel •...
-
Page 14: Troubleshooting Procedures
Cleaning and Maintenance Troubleshooting Troubleshooting Procedures • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 15 Cleaning and Maintenance Disposal If the appliance is no longer of use, please dispose in an environmentally correct way. Contact a qualified service technician: • To recover all refrigerant • To remove the compressor or remove the oil from the compressor The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
- Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
