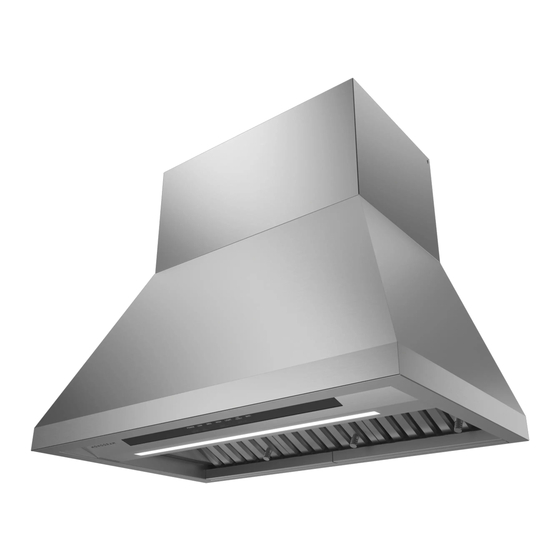

36” and 48” wall hood with quietboost blower
Hide thumbs Also See for ZVW1360:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

INSTALLATION
INSTRUCTIONS
36" and 48" Wall Hood
ZVW1360, ZVW1480
With QuietBoost™ Blower
Para consultar una version en español
de este manual de instrucciones, visite nuestro
sitio de internet monogram.com.
MONOGRAM.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZVW1360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monogram ZVW1360

  • Page 1 INSTALLATION INSTRUCTIONS 36” and 48” Wall Hood ZVW1360, ZVW1480 With QuietBoost™ Blower Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet monogram.com. MONOGRAM.COM...
  • Page 2: Before You Begin

    Safety Information BEFORE YOU BEGIN WARNING TO REDUCE THE RISK OF FIRE, Read these instructions completely and carefully. ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: IMPORTANT — Save these A. Installation work and electrical wiring must be instructions for local inspector’s use. done by qualified person(s) in accordance with all IMPORTANT applicable codes and standards, including fire-rated...
  • Page 3: Product Dimensions

    Installation Preparation PRODUCT DIMENSIONS 23-5/8” 15” 18” 36” 22” 36” Models Requires a 36” opening. 35-5/8” 15” 18” 48” 22” 48” Models Requires a 48” opening. 31-2000734 Rev. 4...
  • Page 4: Tools And Materials Required

    Installation Preparation TOOLS AND MATERIALS REQUIRED REMOVE THE PACKAGING (NOT SUPPLIED) CAUTION Wear gloves to protect against sharp edges. Remove the hood body. Remove the hardware bag, literature package and Safety glasses other boxed parts. Pencil and tape measure Remove and properly discard the protective plastic wrapping and other packaging materials.
  • Page 5: Parts Provided

    Installation Preparation PARTS PROVIDED HARDWARE PACKAGE Locate the parts packed with the hood. Locate and check contents. Top Damper Motor (2 with 48” model) (QTY: 4) 2.9mm x 6mm PZ screws. Used to attach the damper (QTY: 4) 8 x 1-3/4 AB screw.
  • Page 6: Installation Dimensions

    Installation Preparation INSTALLATION DIMENSIONS DUCT COVER REQUIREMENTS The hood duct covers can be adjusted for different Duct cover kits must be purchased separately. ceiling heights depending on the distance between the We recommend that the vent hood and duct cover bottom of the hood and the cooktop (distance X).
  • Page 7 Installation Preparation INSTALLATION HEIGHT TABLE ZX8D13SPSS ZX10D13SPSS ZX12D13SPSS OR ZX8D14SPSS OR ZX10D14SPSS OR ZX12D14SPSS Ceiling Duct Cover up to 8 ft. High Ceiling Duct Cover up High Ceiling Duct Cover up to 10 ft. to 12 ft. Ceiling Height Installation Installation Ceiling Height Installation...
  • Page 8: Advance Planning

    Installation Preparation POWER SUPPLY ADVANCE PLANNING IMPORTANT – (Please read carefully) Duct Install Planning WARNING This hood is designed to be vented vertically through the ceiling with a 10” round duct or, horizontally through a wall with an 8”x12” duct FOR PERSONAL SAFETY, THIS APPLIANCE MUST transition and 12”...
  • Page 9 Installation Preparation NEW CONSTRUCTION, PRE-PLANNING, OR REMODELING NOTE: For existing instruction, skip to the next section. FOR TOP VENTING FOR BACK VENTING diameter hole for the duct in the ceiling must be x13-1/4”W cut out for the duct in the wall must be centered 6-1/4”...
  • Page 10 Installation Preparation DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS • This hood can be installed onto the wall or underneath FOR CEILING VENT DUCTING the soffit. Centerline to Wall • For installing the hood to soffit, refer to page 12 for alternate mounting method.
  • Page 11: Installation

    Installation INSTALL HOOD SUPPORT INSTALL HOOD SUPPORT (Cont.) • Install wall anchors (C) by tapping the anchors with IMPORTANT: Framing must be capable of supporting a hammer to seat the teeth of the flanges into the 100 lbs for 36” models and 150 lbs for 48” models. wall.
  • Page 12: Install Hood Onto Wall

    Installation 4 (Alternate Mounting Method) INSTALL HOOD ONTO WALL INSTALL HOOD TO SOFFIT • Pull house wiring through knockout at the back or top of the hood. SKIP THIS STEP IF USING WALL MOUNTING • Lift the hood and place over the hooks on the METHOD installation bar.
  • Page 13: Install Motor

    Installation 4 (Alternate Mounting Method) INSTALL HOOD TO SOFFIT (Cont.) • Drill two 1/8” pilot holes at a distance of 10-5/8” from • Drive mounting screws (A) into the studs until they the back wall in the horizontal wood supports. This is protrude 1/4”.
  • Page 14: Connect Electrical

    Installation 6 CONNECT ELECTRICAL 7 CONNECT DUCTWORK Verify that power is turned off at the source. • Connect the house ducting to the top damper as shown in Figure A. WARNING If house wiring is not 2-wire with • For back venting, connect the transition piece to the a ground wire, a ground must be provided by the back damper and the house ducting to the transition installer.
  • Page 15: Install Duct Covers

    Installation 8 INSTALL DUCT COVERS 9 INSTALL GREASE TRAYS AND FILTERS • Refer to section “Duct Cover Requirements” on page 6 for duct cover accessory part numbers. • Remove protective film. • Follow instructions included with the duct cover • Place grease drip trays into slots. accessory to install duct covers.
  • Page 16 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. NOTE: Product improvement is a continuing endeavor at Monogram. Therefore, materials, appearance and specifications are subject to change without notice. 31-2000734 Rev. 4 07-21 GEA...
  • Page 17: Instrucciones De Instalación

    INSTRUCCIONES DE INSTALACIÓN Campana de Pared de 36” y 48” ZVW1360, ZVW1480 Con Extractor QuietBoost™ ESPAÑOL MONOGRAM.COM...
  • Page 18: Antes De Comenzar

    Safety Information ANTES DE COMENZAR ADVERTENCIA PARA REDUCIR EL RIESGO Lea estas instrucciones por completo y con DE INCENDIO, DESCARGA ELÉCTRICA O LESIONES A detenimiento. PERSONAS, CUMPLA CON LOS SIGUIENTES PUNTOS: IMPORTANTE — Guarde estas A. El trabajo de instalación y el cableado eléctrico deben ser realizados por una persona(s) calificada de acuerdo con instrucciones para el uso de inspectores locales.
  • Page 19: Dimensiones Del Producto

    Preparación para la instalación DIMENSIONES DEL PRODUCTO 23-5/8” 15” 18” 36” 22” Modelos de 36” Requiere una abertura de 36”. 35-5/8” 15” 18” 48” 22” Modelos de 48” Requiere una abertura de 48”. 31-2000734 Rev. 4...
  • Page 20: Quite El Envoltorio

    Preparación para la instalación HERRAMIENTAS Y MATERIALES QUITE EL ENVOLTORIO REQUERIDOS (NO SUMINISTRADOS) PRECAUCIÓN Se guantes para protegerse de los bordes afilados. Retire el cuerpo de la campana. Quite la bolsa de piezas, el paquete de instrucciones y Gafas de seguridad otras piezas en cajas.
  • Page 21: Piezas Provistas

    Preparación para la instalación PIEZAS PROVISTAS PAQUETE DE MATERIALES Ubique las partes embaladas con la campana. Ubique y controle los contenidos. Regulador Superior Motor (2 con el modelo de 48”) (Cant.: 4) Tornillos PZ de 2.9mm x 6mm. Usados para adherir el regulador (Cant.: 4) Tornillos Bandeja de Goteo...
  • Page 22: Dimensiones De La Instalación

    Preparación para la instalación DIMENSIONES DE LA INSTALACIÓN REQUISITOS SOBRE LA TAPA DEL CONDUCTO Las tapas de los conductos de las campanas pueden ser ajustadas en diferentes alturas de cielorrasos, dependiendo Los kits para la tapa del conducto se deberán adquirir de la distancia entre la parte inferior de la campana y la aparte.
  • Page 23 Preparación para la instalación TABLA DE A LTURAS DE INSTALACIÓN ZX8D13SPSS ZX10D13SPSS ZX12D13SPSS O ZX8D14SPSS O ZX10D14SPSS O ZX12D14SPSS Tapa del Conducto del Tapa del Conducto del Tapa del Conducto del Cielorraso de hasta 8 pies Cielorraso hasta 10 pies Cielorraso hasta 12 pies Altura del Instalación...
  • Page 24: Planificación Previa

    Preparación para la instalación PLANIFICACIÓN PREVIA SUMINISTRO DE ENERGÍA Planificación para la Instalación con Conducto IMPORTANTE – (Tenga a bien leer cuidadosamente) Esta campana fue diseñada para una ventilación vertical a ADVERTENCIA través del cielorraso con un conducto cilíndrico de 10”, de forma horizontal a través de una pared con la transición de PARA SEGURIDAD PERSONAL, ESTE APARATO DEBE un conducto de 8”...
  • Page 25 Preparación para la instalación NUEVA CONSTRUCCIÓN, PLANIFICACIÓN PREVIA O REMODELACIÓN NOTA: Para acceder a las instrucciones existentes, vaya a la siguiente sección. PARA LA VENTILACIÓN SUPERIOR PARA LA VENTILACIÓN TRASERA superior, el agujero de 10” de diámetro para el conducto del trasera, el espacio libre de 10 ½”H x 13 ¼”W desde el cielorraso deberá...
  • Page 26 Preparación para la instalación DETERMINE LAS UBICACIONES DE LA CAMPANA, EL CONDUCTO Y EL CABLEADO • Esta campana se podrá instalar sobre la pared o debajo del PARA UN CONDUCTO DE VENTILACIÓN A TRAVÉS DEL sofito. Línea Central hasta la CIELORRASO Pared •...
  • Page 27: Instalación

    Instalación INSTALE EL SOPORTE DE LA INSTALACIÓN DEL SOPORTE DE CAMPANA LA CAMPANA (Cont.) IMPORTANTE: El marco deberá poder soportar 100 lbs. • Instale los anclajes de pared (C) golpeando los mismos para los modelos de 36” y 150 lbs. para los modelos de 48”. con un martillo para asentar los dientes de las bridas sobre la pared.
  • Page 28 Instalación 4 (Método Alternativo de Montaje) INSTALACIÓN DE LA CAMPANA INSTALE LA CAMPANA EN EL EN LA PARED SOFITO • Pase el cableado hogareño a través del tablero sobre la parte trasera o superior de la campana. SALTEE ESTE PASO SI USARÁ UN MÉTODO DE •...
  • Page 29 Instalación (Método Alternativo de Montaje) INSTALE LA CAMPANA EN EL SOFITO (Cont.) • Perfore dos agujeros piloto de 1/8” en una distancia de • Pase los tornillos de montaje (A) por las vigas hasta que 10 5/8” desde la pared trasera en los soportes de madera sobresalgan ¼”.
  • Page 30: Conecte La Electricidad

    Instalación 6 CONECTE LA ELECTRICIDAD 7 CONECTE EL CONDUCTO Verifique que la corriente esté apagada en la fuente. • Conecte el conducto hogareño al regulador superior, como se muestra en la Figura A. Si el cableado del hogar no ADVERTENCIA tiene 2 cables con uno a tierra, el •...
  • Page 31 Instalación 8 INSTALE LAS TAPAS DE LOS INSTALE LAS BANDEJAS Y CONDUCTOS FILTROS DE GRASA • Consulte la sección “Requisitos de la Tapa del • Retire la película protectora. Conducto” en la página 6 para conocer los números de • Coloque las bandejas de goteo de grasa en las ranuras. los accesorios de la tapa del conducto.
  • Page 32 ® en su área, visite nuestro sitio web en monogram.com. NOTA: La mejora de los productos es un esfuerzo continuo para Monogram Appliances. Por lo tanto, los materiales, apariencia y especificaciones pueden sufrir cambios sin previo aviso. 31-2000734 Rev. 4...
