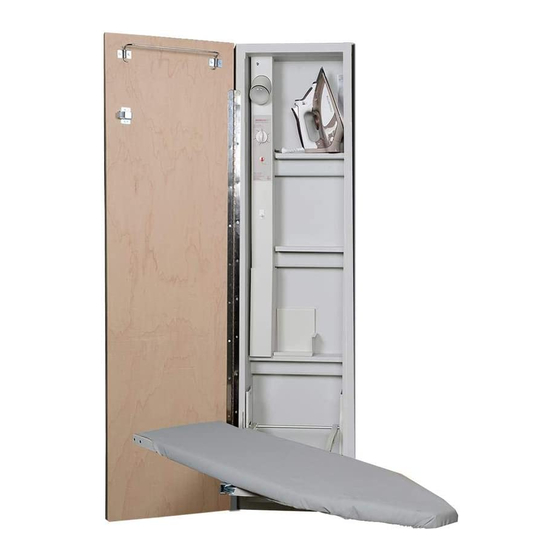

SUPPLIED PARTS
SWIVEL MODELS
AE-46 ANE-46 AE-42 ANE-42 UD-42
RECESSED INSTALLATION
#10 x 1 1/2" Wood Screws (2)
#14 x 2 1/2" Phillips Screws (2)
SURFACE MOUNT INSTALLATION
#14 x 4" Wood Screws (2)
NON-SWIVEL MODELS
E-46 NE-46 E-42 NE-42 IAW-42
RECESSED INSTALLATION
#10 x 1 1/2" Wood Screws (4)
SURFACE MOUNT INSTALLATION
#14 x 4" Wood Screws (2)
IAW-42 ONLY
#14 x 2 1/2" Wood Screws (2)
Swivel Models
pg. 2 | Pre-Installation
pg. 3 | Recessed Mount
pg. 4 | Surface Mount
pg. 7 | Electrical
INSTALLATION MANUAL
Quick Reference
Iron-A-Way
1-800-536-9495
support@ironaway.com
220 W. Jackson
Morton, IL 61550
IRONING CENTER
SUPPLIES NEEDED
Carpenter's Level
Tape Measure
Utility Knife
Drill
1/8" Drill Bit
3/16" Drill Bit (Surface Mount Installation)
Small Flat Head Screwdriver
Safety Glasses
2 x 4 Cross Support Cleat (Recessed Installation)
2 x 4 Brace (Surface Mount Installation)
Optional:
Stud Finder
1/4" Nut Driver
Non-Swivel Models
pg. 2 | Pre-Installation
pg. 5 | Recessed Mount
pg. 6 | Surface Mount
pg. 7 | Electrical
Advertisement
Table of Contents
Related Manuals for Iron-A-Way AE-46
Summary of Contents for Iron-A-Way AE-46
- Page 1 IRONING CENTER INSTALLATION MANUAL SUPPLIED PARTS SUPPLIES NEEDED SWIVEL MODELS Carpenter’s Level AE-46 ANE-46 AE-42 ANE-42 UD-42 Tape Measure Utility Knife RECESSED INSTALLATION Drill #10 x 1 1/2” Wood Screws (2) 1/8” Drill Bit #14 x 2 1/2” Phillips Screws (2) 3/16”...
- Page 2 STEP ONE: Ironing Board Clearance Begin by ensuring your desired installation location has adequate space for your selected model. Choose Recessed Mount or Surface Mount. AE-46 AE-42 SWIVEL MODELS | FIG 1.1 ANE-46...
- Page 3 Pre-Installation, cut an opening in the wall based on dimensions given below for your specific model: AE-46, ANE-46, UD-42: 59 7/8” H x 14 3/8” W x 3 7/8” D AE-42, ANE-42: 51 1/4” H x 14 3/8” W x 3 7/8” D Drywall not shown.
- Page 4 Apply trim [not provided] to sides of cabinet to flush the side wall with the cabinet trim (FIG 3.3) to create a sleek look. Note: May use custom trim or purchase Surface Mount Trim from Iron-A-Way directly. Please call 1-800-536-9495 for more information.
- Page 5 NON-SWIVEL RECESSED MOUNT INSTALLATION Models | E-46, NE-46, E-42, NE-42 *** PLEASE NOTE: Under no circumstances should the ironing board and/or the support mechanism be removed from the cabinet during installation. STEP ONE: Cut Rough-In Opening Beginning with the mounting height determined in Step Three of Pre-Installation, cut an opening in the wall based on dimensions given below for your specific model: E-46, NE-46: 59 7/8”...
- Page 6 Apply trim [not provided] to sides of cabinet to flush the side wall with the cabinet trim (FIG 5.3) to create a sleek look (excludes IAW-42). Note: May use custom trim or purchase Surface Mount Trim from Iron-A-Way directly. Please call 1-800-536-9495 for more information.
- Page 7 ELECTRICAL INSTALLATION Models | AE-46, E-46, AE-42, E-42, UD-42 ATTENTION: TURN OFF POWER AT SERVICE ENTRANCE BEFORE INSTALLING, WIRING, OR SERVICING THIS PRODUCT ITEMS TO NOTE All electrical work must be done in accordance with Instructions for electrical models ONLY all applicable electrical codes.
- Page 8 Still have questions? We’re here to help! 1-800-536-9495 support@ironaway.com M-F 8am-4:30pm CST 001072 6/21...
