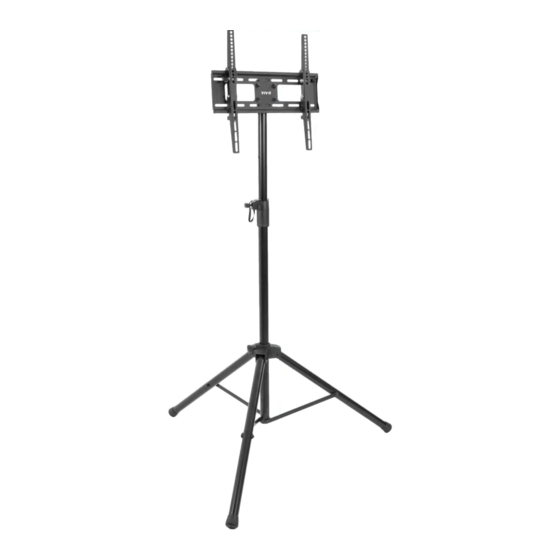

Portable TV Tripod
Instruction Manual
SKU: STAND-TV55T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv55t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-TV55T
Summary of Contents for Vivo STAND-TV55T
- Page 1 Portable TV Tripod Instruction Manual SKU: STAND-TV55T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv55t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 77lbs Failure to do so may result in serious injury. (34.93kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Unfold the Tripod Base (A) and tighten the lower knob. STEP 2 Loosen the upper knob on the Pole of the Tripod Base (A), adjust the Pole to the desired height, insert the retainer pin, then tighten the upper knob.
- Page 4 STEP 3 Install Mounting Bracket (E) using the M6x50 Carriage Bolts (F), Metal Washers (I) and M6 Lock Nuts (G). The arrow on the bracket must be pointing up. Tighten with the Wrench (K). STEP 4 Assemble the VESA Plate (B) to the Mounting Bracket (E) using M6x12 Bolts (J), Metal Washers (I), Plastic Washers (H) and M6 Lock Nuts (G).
- Page 5 STEP 5 OPTION A: Small TV Mount VESA Brackets (C, D) to the back of the TV with 14mm Bolts (M-A or M-B) and M5/M8 Washers (M-F). Tighten with a Phillips screwdriver. OPTION B: Large or Curved Back TV Mount VESA Brackets (C, D) to the back of the TV with 30 or 50mm Bolts (M-C, M-D or M-E), M5/M8 Washers (M-F) and Spacers (M-G, M-H).
- Page 6 STEP 6 Hang the TV with VESA Brackets (C, D) over the VESA Plate (B) and secure with the pre-installed bolts underneath using a Phillips screwdriver.
- Page 7 Adjust as Desired...
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
