- Page 1 Multi-function Portable HD LCD Monitor User Manual...

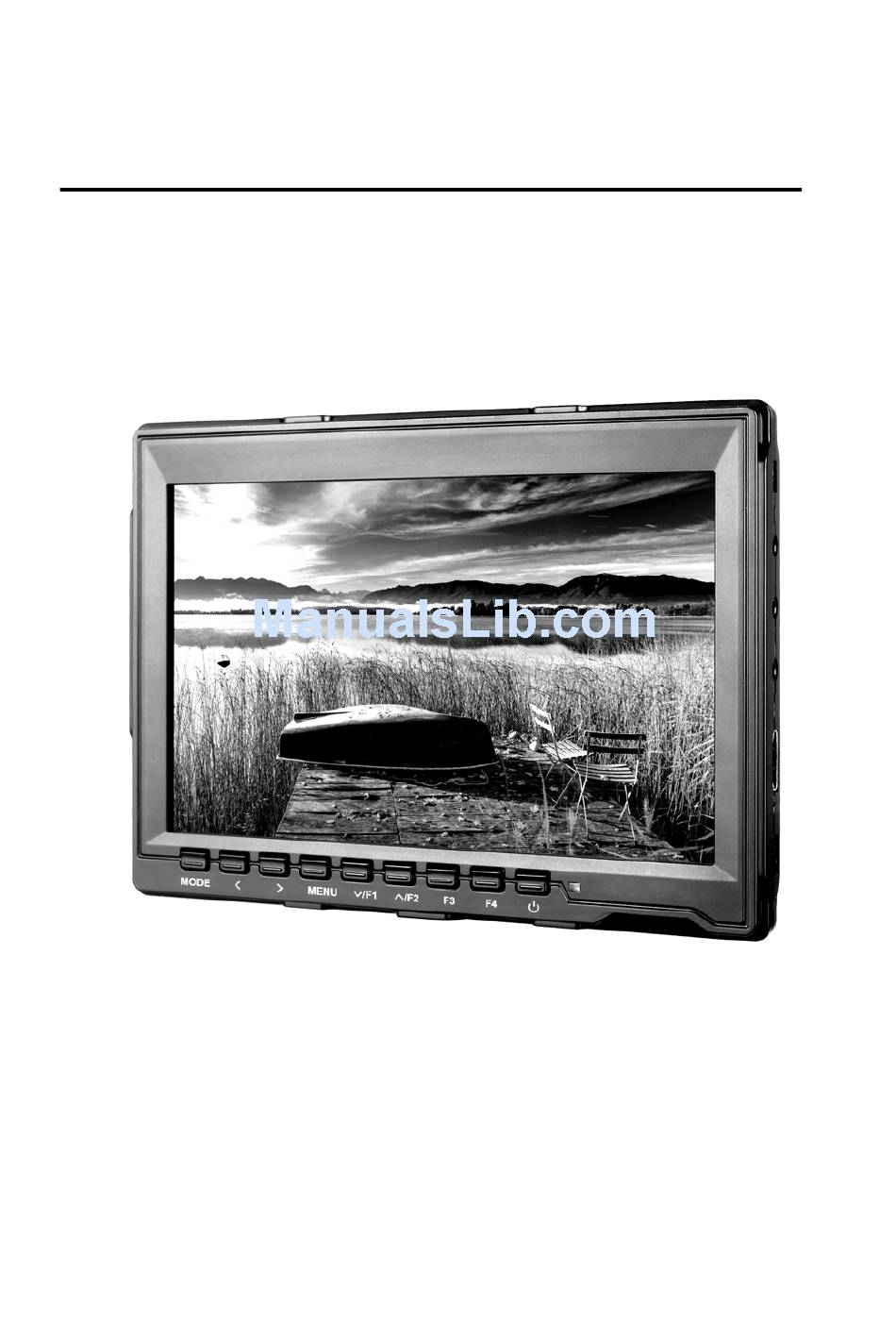

- Page 2 Product description: Thank you for purchasing our photography, broadcast color LCD Monitor kit. This product adopts proprietary digital signal processing circuit and professional IPS LCD screen. It's high brightness, low power consumption, stable performance and emits no radiation advantages. It's with HDMI Input, AV input and output, which make it wide application, casing compact, simple operation, and portable convenient.
- Page 3 Features High brightness, contrast, high resolution with sun ● shade, visible under the sunshine Built-in VIDEO/AUDIO /HDMI inputs, enable for a various of ● signal External remote control,to control the functions of the mon ● itor in distance. Optional for external battery plate and various batteries for ●...
-
Page 4: Product Description
1. Product description 1.1 Front view: Power Indicator light: when power on/standby, it turns red; when signal in, it turns green! : Power on/off F4: Custom button, enter secondary menu item F(self-defined button), then self-define the function that user need F3: Custom button, same as F4 operation : Multi button. - Page 5 MENU: Menu button >: Volume up, in OSD menu to increase the value of analog on the menu. <: Volume down, in OSD menu to decrease the value of analog on the menu. MODE: Signal Switch Button LCD Display 1.2 Rear View: 1.
- Page 6 : Earphone insert 4. AV: AV signal input, to input the AV signal into the monitor through the assorted port 5. HDMI: HDMI(High Definition Multimedia Interface) signal input : DC power input interface, pole of the power should match the image. 7.
- Page 7 1.4 HDMI Lock HDMI locking plate Locking Screw To use HDMI locking plate to lock the plug of HDMI cable, then put the locking plate close to the monitor, and finally bolt the locking screw to lock the plate with the monitor. As the picture below (arrow direction)
- Page 8 1.5 Sunshade ① Sunshade Sunshade Frame ② Complete Shape Sunshade Application ③ ④ First to open the sunshade ①，and match the sticker on the sunshade inside to the marked part of the sunshade frame，press ③ the side of the sunshade frame， oth and press 3 sides on ④...
- Page 9 Battery Plates in different model as below: F970 LP-E6 ●Sony F970 battery plate for battery of Sony DV: Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series ●LP-E6 battery plate for battery of Canon DV: Canon LP-E6 ●D28 battery plate for battery of Panasonic DV:...
-
Page 10: Operation Instruction
2. operation instruction Before setting the menu functions, please make sure the device is connected correctly. Power switch dial to ON position, according to the input signal to switch VIDEO、HDMI，When the power indicator of the monitor go on (Red)，then following instructions below and choose the corresponding key to operate monitor. - Page 11 2.2 Menu instructions Image color (including 2 page menu ) ※ Pic. Mode: Standard, Dynamic, Mild, User When select “user”, it could according to the practical situation to adjust the image of "Brightness, Contrast, Saturation, Sharpness. ※ Brightness: To adjust the image's brightness. ※...
- Page 12 adjust, proportion too large or small, will make the picture lose the color of showy. ※ Saturation: To adjust color concentration. ※ Sharpness: Also called “Resolution”, an indicator for the Image plane definition and image edge sharpness. If Sharpness is higher, then the details contrast on the image is more higher, the image is more clearly。...
- Page 13 ※ Aspect Ratio:To change the display to Panorama 、 Auto、Just Scan、 Zoom 1、Zoom 2、16:9、 4:3. ※ No Signal: Color options of screen background when no signal: Black Screen, White Screen, Red Screen, Green Screen, Blue Screen. ※ OSD Trans. : To adjust the level of transparent ※...
- Page 14 ※ L/R Zoom: Press“ <” or“>”button, to adjust the proportion of the image Left and right to Zoom in or Zoom out. ※ USB Upgrade: When the need for the native data application software upgrade, copy the file to the U disk, again through the USB cable to connect with upgrade USB port, press ">"...
- Page 15 ※ Check Field: To switch among Off, Mono, Red, Green, Blue. ※ P2P: The display mode that made the resolution of the image consistent with display of the physical resolution. ※ Focus Assist: Under HDMI input, open this function, red highlight over parts of the image in focus.
-
Page 16: Technical Parameters
3. Technical parameters Panel Size IPS LCD 7.0inch Panel Type IPS LCD Resolution 1280×800×RGB ＝3072000 Pixels Backlight Dot Pitch 0.11775(W) x 0.11775 (H) Aspect Ratio 16:10 Brightness 400cd/㎡ Contrast Ratio 800:1 Response Time 25ms Viewing Angle 89°/89°(L/R) 89°/89°(U/D) Input Signal Video / Audio / HDMI Video Color System PAL-4.43 / NTSC-3.58... -
Page 17: Trouble Shooting
Trouble shooting Only black and white or monochrome picture ① Please check saturation, brightness & contrast adjustment. ② Please check monitor "color" from the menu "monochrome" is in black and white or monochrome image or other condition. NO Image after put on the power ①...
