  • Page 1 KonnectONE K779HSDL LTE Hotspot User Manual Version Release VER_1.0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ..........................5 Getting Started ............................5 Screen Indicators ............................6 Hardware Installation ..........................6 CHAPTER 2: DEVICE CONFIGURATION....................... 9 Login to your Device ..........................9 Home Page ..............................10 SMS ................................13 Settings ..............................14 Internet ..............................
  • Page 3 DMZ Settings ............................21 Management ............................. 22 SNTP ................................. 22 PIN Management ............................23 Device Information ........................... 24 Statistics ..............................25 System Log ............................... 26 System Admin ............................27 Upgrade ..............................28 Reboot & Reset............................29 Logout ............................... 30 CHAPTER 3: Trouble Shooting ............................ 30 CHAPTER 4: Health and Safety Information ........................
  • Page 4 Thank You For Choosing K779HSDL The K779HSDL is a newly developed LTE Mobile Hotspot, providing flexible LTE access for users to enjoy high-speed Internet applications. When connected to the LTE Network, the K779HSDL can support simultaneous connections with up to 16 Wi-Fi enabled devices.

  • Page 5: Chapter 1: Introduction

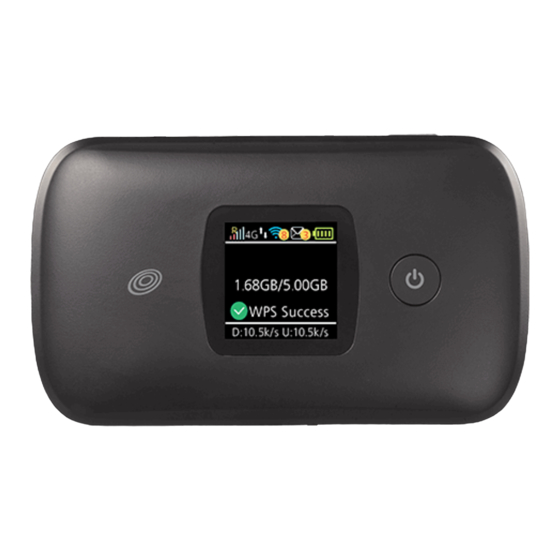

    CHAPTER 1: INTRODUCTION Getting Started The following figure shows the appearance of your K779HSDL; it is only for your reference. The actual device may be different. 1. Menu button 2. Signal and Roaming status icon 3. Network mode 4. Wi-Fi signal icon 5.

  • Page 6: Screen Indicators

    7. Power Button 8. Micro USB 9. Battery cover 10. The point of removing the back cover Screen Indicators Icon Description Signal and Roaming status icon Network mode icon Data flow icon Wi-Fi signal and number of access users The number of unread message，maximum is Battery capacity icon, if battery capacity is lower than 25%, this icon is red.
  • Page 7 Installing the LTE SIM Card If you have not already done so, please follow these instructions for the installation of your new SIM card which is in the package: 1. Remove the SIM card from the outer card, being careful not to touch the gold contacts. 2.
  • Page 8 Follow these Steps: 1. Use your normal Wi-Fi application on your computer to establish a connection to your K779HSDL. 2. Look for the network (SSID) named “Moxee TetherXX_2.4G” or “Moxee TetherXX_5G”. XX is the last two digits of device IMEI.

  • Page 9: Chapter 2: Device Configuration

    3. Press “Power” button to active WPS function Then you can enable the WPS fuction on your terminal to connect the hotspot. Accessing the Internet After successfully establishing the connection between your K779HSDL and Wi-Fi clients, you can access the Internet. CHAPTER 2: DEVICE CONFIGURATION Login to your Device Open your web browser, enter the IP address of your hotspot, which by default is...

  • Page 10: Home Page

    Home page for the hotspot. Besides Home page there are other pages for the hotspot: ”SMS” page is set to read your messages on the hotspot; ”Settings” page is set to configure your hotspot; “logout” page is set to logout from you hotspot. Please see the relevant sections of this manual for detailed instructions for your Hotspot K779HSDL.
  • Page 11 WiFi Status Button: you can check the WiFi information of the hotspot by clicking the icon , the 2.4GHz & 5GHz WiFi status, SSID and password will be displayed.
  • Page 12 Clients Button: you can check the connected client information by clicking the icon the connected client’s device name, IP address and Mac address will be displayed.

  • Page 13: Sms

    You can click “SMS” to the Message page to see the SMS information. It only support to receive the SMS and not support send as it is a hotspot. You can check the message in the InBox, support to read, delete and refresh. InBox: you can click each message content to read it.

  • Page 14: Settings

    Settings You can click “Settings” to the Settings page to configure the hotspot. Internet Mobile Connection In this section, you can configure your mobile data connection. If you are unsure of your APN Settings, please contact your service provider. Notes: The K779HSDL supports APN automatically match function, which means you do not need to edit APN settings for most cases.

  • Page 15: Wireless

    Mobile Data: To Enable/Disable Mobile connection Data Roaming: To Enable/Disable Roaming connection Carrier Name: Your Service provider Name Network Mode: 4G Network Operator: Auto/Manual, it is suggested to implement “Auto” Wireless WLAN settings In this section you can configure the WiFi settings for your Hotspot K779HSDL. You can change the WiFi SSID and password in this page, after your setting please click “Apply”.
  • Page 16 Please note that any changes made in this section may need to reconnect the wifi. 2.4GHz is for 802.11b/g/n 5GHz is for 802.11 a/ac/n If you are unsure of WiFi Channel and Channel Width, it is suggested to implement “Auto”...

  • Page 17: Wlan Mac Filter

    WLAN MAC Filter MAC address filtering (aka link-layer filtering) is a feature for IPv4 addresses that allows you to include or exclude computers and devices based on their MAC address. Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:DS:GG:22:35:01.

  • Page 18: Dhcp

    DHCP In this section you can configure the DHCP settings. Default value: 1. DHCP server is enabled 2. Gateway IP address: 192.168.1.1 3. DHCP IP Range: 192.168.1.100 to 192.168.1.200, which means IP pool counts 100 4. DHCP lease time: 24 hours(86400 seconds) Click “Apply”...

  • Page 19: Ip Filter

    protecting your network and connected devices from malicious internet attacks. In this section you can “enable” or “Disable” for Firewall/IP Filter settings. Please note that in order to enable IP Filter, the Firewall must be enabled firstly. IP Filter You can filter the packages by IP address, Protocol, Port number. IP Filtering’s configuring includes LAN IP address, LAN port, WAN IP address, WAN port and Protocol functions.

  • Page 20: Port Forwarding

    Port Forwarding In this section you can enable external computers to access FTP or other services provided by the LAN. IP address: Designate a computer locates at the LAN to provide services. LAN/WAN port: The part of the computer that provides services. It is a single part and the value range of LAN/WAN Port is 1-65535.

  • Page 21: Dmz Settings

    Example: How to setup Port Forwarding for port 21 (FTP server) If you have a FTP server in your LAN network and want others to access it through WAN. Step 1: Assign a static IP to your local computer that is hosting the FTP server. Step 2: Login to the Gateway and go to Settings / Features /Port forwarding Setp 3: Enter WAN Port to 21;...

  • Page 22: Management

    Server entries. IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet. Management SNTP In this section you can check the current time information and to select daylight saving time or not.

  • Page 23: Pin Management

    PIN Management In this section you can enable or disable PIN of SIM card. Please be aware that only 3 times to input wrong PIN code or SIM card will be locked and PUK code is required. You can contact your ISP for more information.

  • Page 24: Device Information

    Device Information In this section you can check the basic information of the device. Please contact your ISP for more information.

  • Page 25: Statistics

    Device Name: Name of the Hotspot for identification purpose. Software Version: software version currently loaded in the Hotspot. Hardware Version: hardware version currently loaded in the Hotspot. IMEI: The unique identification number that is used to identify the 4G-LTE module. IMSI: The international mobile subscriber identity used to uniquely identify the 4G-LTE module.

  • Page 26: System Log

    settings. Clear history: Click it to clear the history statistics. Traffic configuration: Click to configure data traffic plan as below. System Log In this section, you can configure the system logs you want to check, such as main...

  • Page 27: System Admin

    process, hotspot, wireless, dialup, Wi-Fi, web server, device control etc. and easily get them by clicking Export. System Admin The admin account can change all hotspot settings. Note: To keep your hotspot secure you should give the admin account a strong password.

  • Page 28: Upgrade

    Upgrade Your hotspot can automatically detect firmware updates. In this section you can manually check if there is new firmware for your hotspot and update. When there is a new version, it will display a “new” icon in the WebUI, and you can click the icon to the upgrade page.You can also check the current software and hardware information in this page.

  • Page 29: Reboot & Reset

    Online Update operation: Click the button ”Check for update” to detect if there has new firmware version. If there has new version, it will guide you to confirm whether you want to update now. Reboot & Reset In this section you can reboot your device or reset it to factory default settings.

  • Page 30: Logout

    Reboot: click it to reboot your device. Reset: click it to reset your device. Logout Click to logout from your hotspot. Once you logout you will return to the login page. CHAPTER 3: Trouble Shooting If you are having trouble with K779HSDL, here are a few things you can do to get it to function properly. 1.

  • Page 31: Chapter 4: Health And Safety Information

    Q: What to do if there is No service? A: The possible reason is listed as bellow: Unstable local signal. Hardware problem You can try the following solutions: 1 If you are inside a building or near a structure that may be blocking the signal, change the position or location of the device. For example, try moving the device close to a window.
  • Page 32 Consult a physician or the manufacturer of the medical device before using your device. • Be aware of the usage limitation when using your device at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your device if required. •...
  • Page 33 iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage, servicing or operation of the Product. iv. Modifications or repairs not made by KonnectONE or a KonnectONE-certified individual. v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside KonnectONE’s reasonable control.
  • Page 34 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
