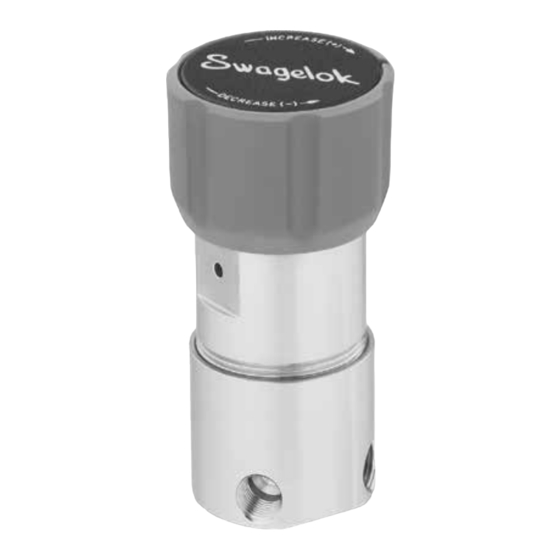

KCP Series Regulators
Maintenance Instructions

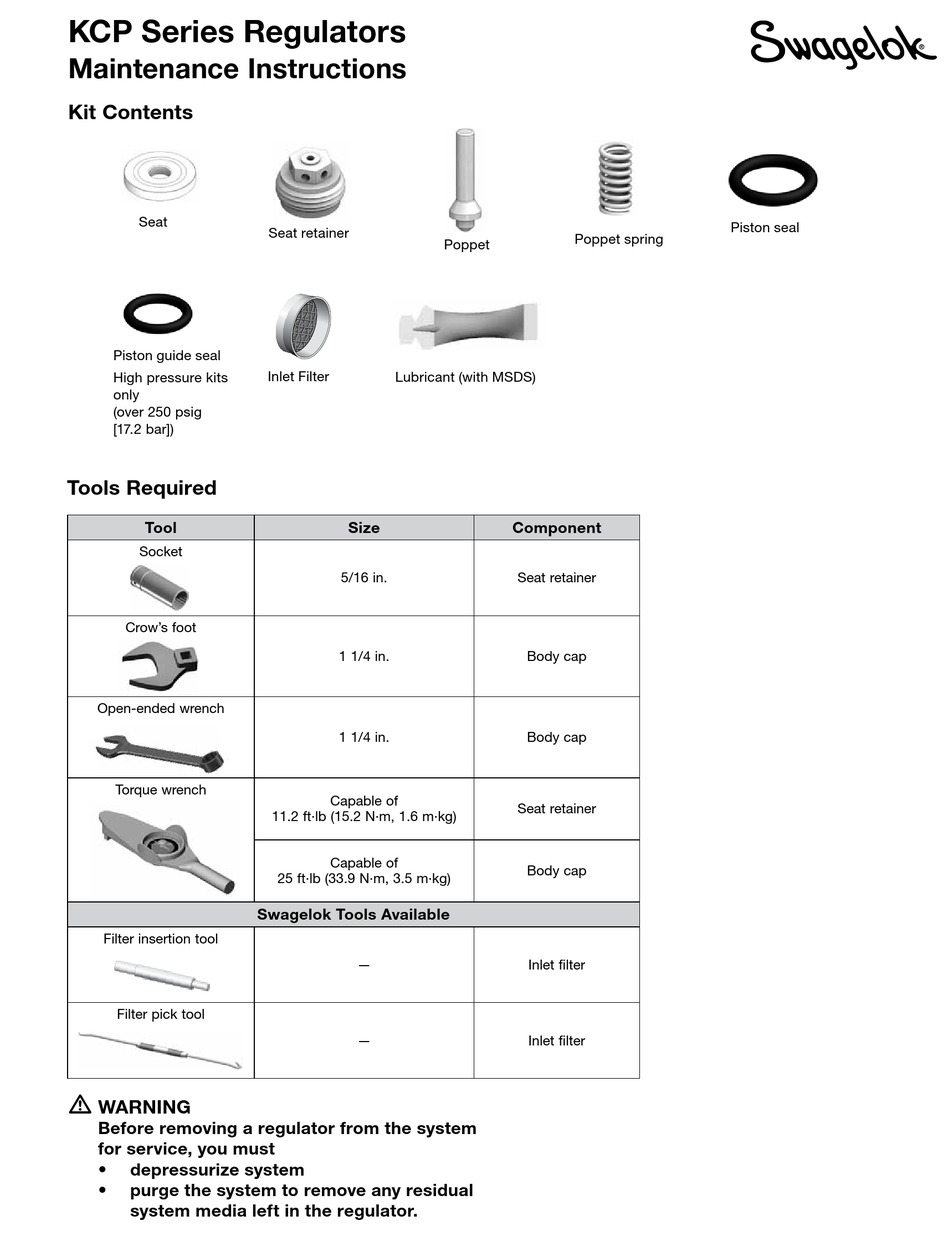

Kit Contents
Seat
Piston guide seal
High pressure kits
only
(over 250 psig
[17.2 bar])
Tools Required
Tool
Socket
Crow's foot
Open-ended wrench
Torque wrench
Filter insertion tool
Filter pick tool
WARNING
Before removing a regulator from the system
for service, you must
depressurize system
p urge the system to remove any residual
system media left in the regulator.
Seat retainer
Inlet Filter
Lubricant (with MSDS)
Size
5/16 in.
1 1/4 in.
1 1/4 in.
Capable of
11.2 ft·lb (15.2 N·m, 1.6 m·kg)
Capable of
25 ft·lb (33.9 N·m, 3.5 m·kg)
Swagelok Tools Available
Poppet spring
Poppet
Component
Seat retainer
Body cap
Body cap
Seat retainer
Body cap
Inlet filter
Inlet filter
Piston seal
