KPF Series Regulators
Maintenance Instructions

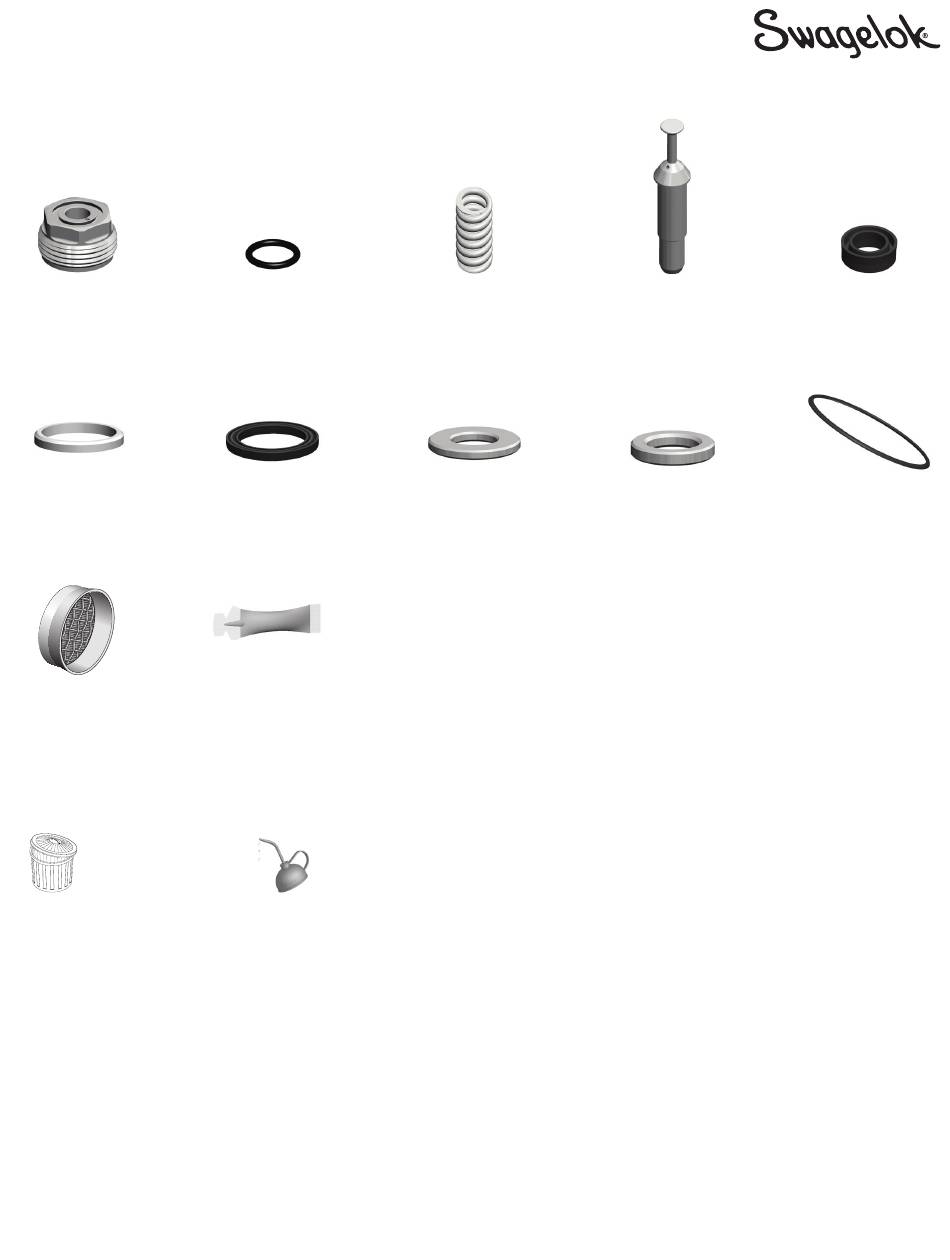

Kit Contents

Seat
Poppet spring
Poppet
Poppet seal and spring
Seat retainer
Piston seal retainer
Piston seal and spring
Poppet seal retainer
Spring retainer
Body seal
Lubricant
MS-LT-WL8
Inlet filter

Symbols

Discard
Lightly lubricate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Swagelok KPF Series

  • Page 1 KPF Series Regulators Maintenance Instructions Kit Contents Seat Poppet spring Poppet Poppet seal and spring Seat retainer Piston seal retainer Piston seal and spring Poppet seal retainer Spring retainer Body seal Lubricant MS-LT-WL8 Inlet filter Symbols Discard Lightly lubricate...
  • Page 2 3/4 in. or 19 mm Seat retainer spanner Torque wrench Capable of Cap ring spanner 120 ft·lb (160 N·m, 16.5 m·kg) Swagelok Tools Available Large cap ring spanner 2 7/8 in. or 73 mm Cap ring Seat retainer spanner Seat retainer...
  • Page 3 Exploded View Cover Stem nut Handle Stem Upper spring button Cap ring Spring stabilizer Range spring Body cap Seat retainer Lower spring button Seat Piston guide Poppet Body seal Piston seal and spring Spring retainer Piston seal retainer Poppet spring Piston Body Poppet seal retainer...
  • Page 4 6. Push the piston out of the piston guide. WARNING Before removing a regulator from the system for service, you must • depressurize system Piston guide • purge the system to remove any residual system media left in the regulator. Disassembly Piston Place the regulator in a vise.
  • Page 5 9. Thread the seal extraction tool into the body and remove the 12. Insert the poppet seal and spring into the body using the poppet seal and spring. poppet seal insertion tool with the open end of the poppet seal and spring facing up. Seal extraction tool Poppet seal and spring Open end up...
  • Page 6 Tighten the nut to 13 ft·lb (17.5 N·m, 1.8 m·kg). Piston guide 19. Push the piston into the piston guide. Piston guide For additional information, see www.swagelok.com. Piston Swagelok — TM Swagelok Company © 2010-2019 Swagelok Company March 2019, RevC...
