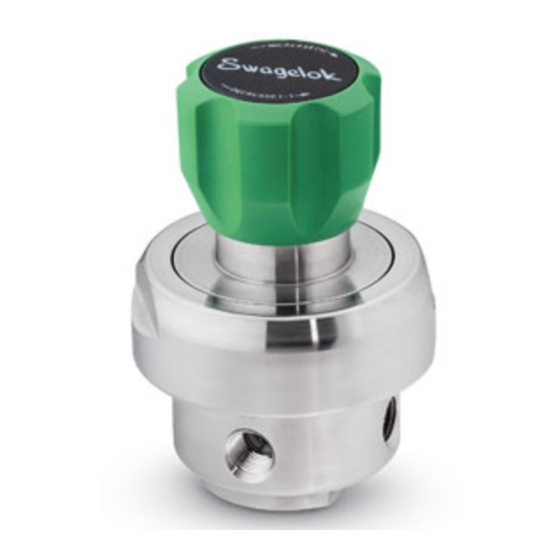

KLF Series Regulators
Maintenance Instructions

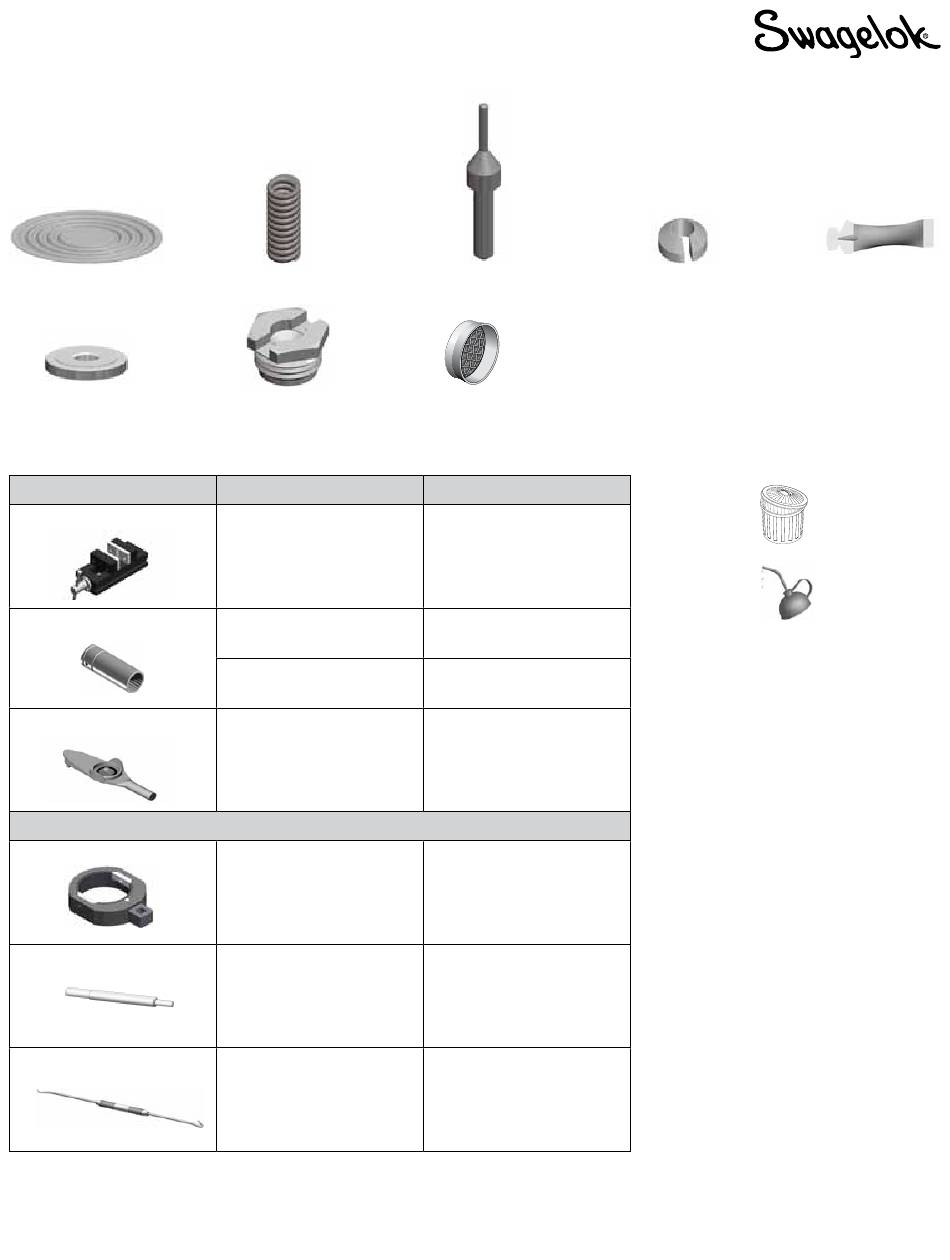

Kit Contents
Diaphragm
Seat
Tools Required
Tool
Vise
Socket
Torque wrench
Large cap ring spanner
Filter insertion tool
Filter pick tool
NOTE:
See Pressure Regulators, MS-02-230, for tool ordering information.
Poppet spring
Seat retainer
Size
-
11/16 in. or 17 mm
5/8 in. or 16 mm
Capable of
236 ft·lb (320 N·m, 32.7 m·kg)
Swagelok Tools Available
2 7/8 in. or 73 mm
—
—
Poppet
Inlet filter
Component
Body
Stem nut,
Antitamper nut
Seat retainer
Seat retainer,
Cap ring
Cap ring
Inlet filter
Inlet filter
Poppet damper
Symbols
Lubricant
MS-LT-WL8
Discard
Lightly lubricate
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swagelok KLF Series
Summary of Contents for Swagelok KLF Series
- Page 1 KLF Series Regulators Maintenance Instructions Kit Contents Lubricant Poppet spring Poppet Poppet damper Diaphragm MS-LT-WL8 Seat Seat retainer Inlet filter Tools Required Symbols Tool Size Component Discard Vise Body Lightly lubricate Socket Stem nut, 11/16 in. or 17 mm Antitamper nut 5/8 in.
- Page 2 Exploded View Cover Stem Stem nut Spring button Handle Spring stabilizer Range spring Stop plate Cap ring Diaphragm Body cap Seat retainer Seat Poppet Body Inlet filter Poppet spring Poppet damper...
- Page 3 Loosen and remove the seat assembly. Discard seat and WARNING seat retainer. Before removing a regulator from the system for NOTICE service, you must Be careful not to scratch the inside of the body. • depressurize system Leakage could result. • p urge the system to remove any residual system media left in the regulator.
- Page 4 19. If using an antitamper nut, thread the antitamper nut onto Swagelok — TM Swagelok Company the stem after the set outlet pressure is reached. Tighten © 2011, 2014, 2015 Swagelok Company October 2015, R3 the nut to 13 ft·lb (17.5 N·m, 1.8 m·kg).
