Techly I-TOOL-SD-098TY User Manual

User's Manual
EN
Manuale d'istruzione
IT
DESCRIPTION:
EN

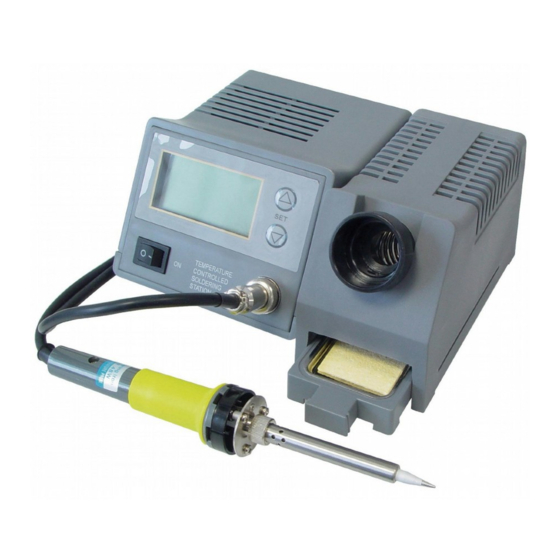

The powerful soldering station with LCD Panel has been designed
for a wide temperature range (from 150-450°C) and is ideal
for general purpose soldering as well as specialized lead-free
soldering applications. The soldering iron is controlled
automatically by the microprocessor. With its high-quality sensor
the heat exchange system guarantees precise temperature control
at the soldering tip. This digital temperature controlled soldering
station includes a holder and cleaning sponge.
TECHNICAL SPECIFICATIONS:
Rated voltage range: 220-240Vac 50Hz
Rated power input: 48W
Temperature range: 150-450°C
SPARE SOLDERING IRON
Voltage
24V
OPERATING INSTRUCTION:
1. Place the soldering iron in the holder and connect the plug
to the receptacle on the station and turn clockwise to tighten
the plug nut.
2. Make sure that the available power supply corresponds
to the voltage specifications for the soldering station
(220-240V) and the power switch is in the OFF position.
3. Plug the control unit in to the power supply and switch
on the power.
4. A self-test is briefly carried out when the unit is switched on.
The electronic system then switches on automatically
to the set temperature and displays the values in the following
"Display" diagram.
Power Note
With 4 pins, Without
48W
sleep function
DIGITAL SOLDERING STATION
STAZIONE DI SALDATURA DIGITALE
1
2
THE DISPLAY AND TEMPERATURE SETTING:
The digital display:
1. Displays the actual temperature of the soldering tip.
2. Displays the set temperature. The set temperature can be
adjusted by pressing the "UP" or "DOWN" button. Once the
temperature has been set, the high-quality sensor quickly
adjusts the actual temperature to match the set temperature.
3. When the actual temperature on the soldering tip is less than
the set temperature, "HEAT ON" will display while the soldering
tip is heating up.
4. When the difference between set and actual temperature
is more than ±10º a "WAIT" warning will display.
This means that the temperature electronic control system
is not stable and the user should wait to allow the warning
to clear and the actual temperature to stabilize.
5. When "ERROR" is displayed, the soldering iron
may not be connected to the control system correctly.
Please check and ensure the soldering iron plug
is correctly connected to the control unit.
SAFETY:
1. The manufacturer assumes no liability for uses other
than those described in the operating instructions
or for unauthorized alterations.
2. The operating instructions and cautions should be read carefully
and kept in an easily visible location near the soldering station.
Non-compliance to the cautions can result in accidents,
injury or other health risks.
3. The power cord should only be plugged in to approved power
sockets or adapters.
4. The temperature of the soldering tip can reach as high as 400°C
752°F when powered on. Since mishandling may lead to fire,
be sure to comply with the following safety precautions:
• Do not touch metallic parts near the soldering tip.
• Do not use this system near flammable items.
• Advise others in the work area that the unit can reach
