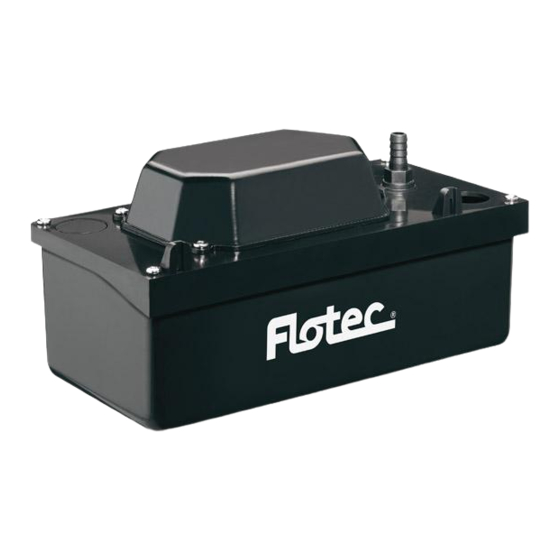

Flotec FPCP-15UL Owner's Manual

P.O. Box 342, Delavan, WI 53115
Phone: 1-800-365-6832 • Fax: 1-800-526-3757
E-Mail: flotec@flotecpump.com
Web Site: http://www.flotecwater.com
READ ALL INSTRUCTIONS
BEFORE STARTING INSTALLATION
General Safety Information
Electrically powered condensate pumps normally give many years
of trouble-free service when correctly installed, maintained, and
used. However, unusual circumstances (interruption of power to
the pump, algae/debris in the reservoir, electrical or mechanical
failure in the pump, etc.), may prevent your pump from function-
ing normally. Consequently, any condensate pump installed in an
area susceptible to water damage must be connected to a failure
alarm or water sensing device or include an auxiliary safety shut-
off switch activated by high water in the pump reservoir and con-
nected to the thermostat of the furnace/AC unit. See the
"Troubleshooting Chart" in this manual for information about com-
mon condensate pump problems. For more information, see your
dealer or call customer service at 1-800-365-6832.
1. Drain all water from system before servicing.
2. Periodically inspect reservoir, pump, and system components.
Keep free of debris and foreign objects. Perform routine mainte-
nance as required.
3. When wiring an electrically driven pump, follow all electrical
and safety codes that apply.
4. All wiring should be performed by a qualified electrician.
5. Make certain power source conforms to requirements of your
equipment.
6. Protect electrical cord from sharp objects, hot surfaces, oil, and
chemicals. Avoid kinking cord. Replace or repair damaged or
worn cords immediately.
7. Personal Safety:
a. Wear safety glasses at all times when working with pumps.
b. Keep work area clean, uncluttered and properly lighted –
replace all unused tools and equipment.
c. Keep visitors at a safe distance from work area.
d. Make workshop child-proof – with padlocks, master switch-
es, and by removing starter keys.
Risk of electrical shock. This pump is supplied
with a grounding-type cord and plug. Do not modify cord or
plug. Plug pump into a properly grounded, grounding receptacle.
Where a 2-prong wall receptacle is encountered, it must be
replaced with properly grounded 3-prong receptacle installed in
accordance with codes and ordinances that apply.
Risk of electric shock. If your basement has water
or moisture on floor, do not walk on wet area until all power has
been turned off. If shut-off box is in basement, call electric com-
pany to shut-off service to house, or call your local fire depart-
ment for instructions. Failure to follow this warning can result in
fatal electrical shock.
When pump is plugged in, do not handle pump, cord, or plug
with wet hands or when standing on a wet or damp surface or in
water. Unplug pump before servicing it or doing any maintenance
on it.
Fire and explosion hazard. Do not use this pump
to pump flammable or explosive liquids. Use pump only with liq-
uids compatible with pump component materials. Do not use
pump in explosive atmospheres.
®
OWNER'S MANUAL
Condensate Pumps
Models FPCP-15UL, FPCP-15ULS, FPCP-20ULST
Risk of flooding. If for any reason property damage
or personal injury can result from an inoperative or leaking pump,
an auxiliary switch backup system and/or an alarm should be
installed with pump.

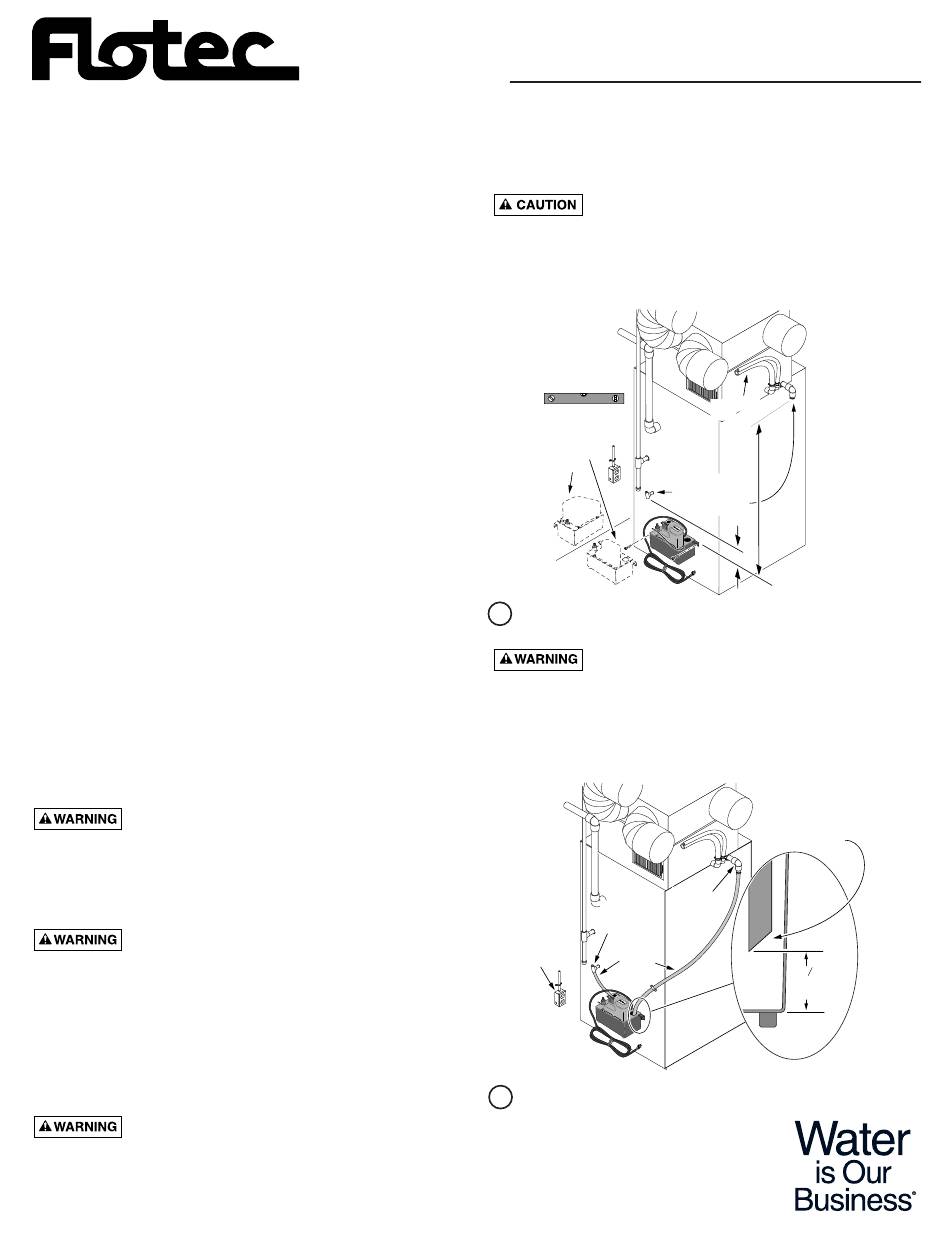

INSTALLATION
Pump must be level!
Alternate
installation
Gas
Locations
Condensing
On Floor or
Furnace
Wall
Mount pump on side of furnace (or on floor or wall).
1
Electrical shock and carbon monoxide hazards.
When mounting the pump on the side of the furnace, make sure
that the mounting holes clear the heat exchanger and all wiring.
The mounting screw for the pump should touch only the pump
reservoir flange and the exterior sheet metal on the furnace. If in
doubt or if this is confusing, consult a qualified HVAC serviceman
or the furnace manufacturer.
Furnace
Condensate
Drain
Grounded Plastic
Outlet
Tubing
3390 0499
Run plastic tubing as shown into pump's drain inlet hole(s).
2
From A.C.
Unit
Mount Pump
below all Heater
and A.C. Drains
3389 0499
Cut tubing at an angle
so that bottom of
reservoir doesn't close it.
Be sure tubing does not
interfere with float.
AC Unit
Condensate
Drain
1-1 1 2 " above
bottom of
reservoir
FP519 (Rev. 4/19/06)
