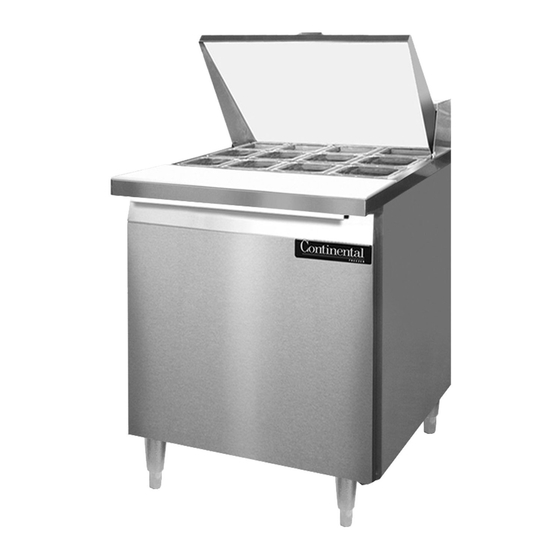

Continental Refrigerator DL27-12M Specifications

Utilizing Environmentally Safe, CFC-free R-134a Refrigerant
•DL27-12M
•DL48-12M
•DL48-18M
•DL60-12M
•DL60-18M

REFRIGERATION SYSTEM

The self-contained refrigeration system is rear mounted,
concealed behind a removable louvered cover. Full-
length front air grille allows for even air circulation to
condensing unit. A "Performance Rated", air-cooled,
hermetically sealed, capillary type refrigeration system
is installed in each model. Plasticized finned coil and air
circulating fans are contained within an easily accessi-
ble rear mounted housing. Our unique airflow design
allows the cabinet to be enclosed on both sides or to be
mounted flush against a wall. Our refrigeration system,
fully charged with R-134a refrigerant, is designed to
maintain 38° - 40° Fahrenheit while operating with an
unrestricted air supply in an ambient temperature of
100° Fahrenheit. All condensate water is directed to a
non-electric condensate vaporizer located in the com-
pressor compartment, thus no plumbing is required. A
strict quality assurance team inspects all materials and
components to certify that each model conforms to the
most exacting standards. All models are performance
tested for a minimum of 16 hours prior to crating.
REFRIGERATORS
DL72-30M

Models Available

•DL60-24M
•DL72-18M
•DL72-27M
•DL72-30M

CABINET CONSTRUCTION

All materials are of top quality and are assembled
under rigid supervision conforming to strict quality
assurance requirements. Case is of all metal weld-
ed construction and is internally supported and
braced for rigid unit construction. Exterior cabinet
back and bottom are heavy gauge galvanized steel.
Worktop is constructed of heavy gauge polished
stainless steel for durability.
Cabinet design eliminates overlapping panels with
raw edges. Interior corners are rounded with a
radius for cleaning ease.
seams are vapor-tight sealed. An easily removable
anti-sweat door heater, concealed by a non-metallic,
non-conductive, high impact thermal breaker strip,
eliminates condensation build-up on case front.

INSULATION

All cabinet walls, top, and bottom have high density,
foamed-in-place, non-CFC polyurethane insulation.
SANDWICH UNIT
MIGHTY TOP

Standard Features

• Unique Air Flow Distribution allows Pan Product To
Maintain 33-41°F Being in Compliance With And
Certified Under The New '98 NSF Standard For
Preparation Units
• Modern, State-of-the-Art Styling Performance Rated
Refrigeration System Utilizing
Environmentally Safe R-134a Refrigerant
• Easily Serviceable Rear Mounted Compressor
• 2" Non-CFC Polyurethane Foam Insulation
• Spring Loaded, Self-Closing Door
• Magnetic Snap-in Gasket
• Adjustable 6" Legs
• Heavy Duty, Epoxy-coated Steel Shelves
• Interior Hanging Thermometer
• Mighty Tops-3 Rows of Pans
• 10" Deep Full Length Nylon Cutting Board
• Cabinet Construction Consisting of Stainless Steel
Exterior and Interior
• Non-Corrosive, Plasticized Fin Evaporator Coil
• Completely Enclosed, Vented and Removable
Case Back
• Automatic, Energy Saving, Non-electric Condensate
Disposal
• 1/6 Size Pans, 4" Deep
• 10 ft. Cord and Plug Attached
Optional Features & Accessories
•Remote Models - R
•Electric Condensate
•Additional Shelves
•Pan Opening Sizes

SHELVING

Shelves are designed for heavy-duty use with
.306" diameter frame and brace members and
.140" diameter fill wires spaced
Shelves are welded steel and epoxy-coated
for a durable, long, rust-free service life.

DOOR CONSTRUCTION

Door shells are constructed of heavy-gauge
stainless steel and are internally braced and
urethane-foam-insulated for rigidity. Door cor-
1 / " ners are of welded construction and polished.
4
All cabinet joints and Replaceable snap-in door gaskets are self
adjusting, heavy-duty, magnetic type. Door
handles and hinges are chrome-plated and
non-corrosive.
heavy duty, self-closing.
•Door Locks
•Single Overshelf
•Double Overshelf
3 / " apart.
4
Hinges are spring loaded,
