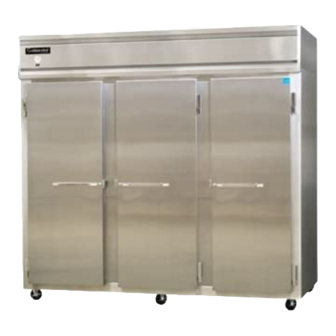

Continental Refrigerator DL1RE-SS Specifications

Utilizing Environmentally Safe, CFC-free R-134a Refrigerant
D D L L 2 2 R R E E - - S S S S
D D L L 1 1 R R E E - - S S S S
O O t t h h e e r r M M o o d d e e l l s s A A v v a a i i l l a a b b l l e e

Models Available

Refrigeration System

A "performance rated" air cooled hermetically
sealed, capillary-type refrigeration system is
installed on the top of each refrigerator. Plasticized
fin coil and air circulating fans are contained within
a concealed "plug"-type insulated housing,readily
accessible on top of the cabinet and separate from
the food zone to increase
capacity.The entire "plug" system is fully charged
with environmentally safe R-134a refrigerant and
mounted on a sturdy steel, rail-type base which can
be easily removed if freezer conversion is desired.
Refrigerators are designed to maintain 38 to 40
degrees Fahrenheit (3 to 5 degrees Centigrade)
while operating with an unrestricted air supply in a
maximum ambient temperature of 100 degrees
Fahrenheit. All condensate water is evaporated by
an automatic non-electric, corrosion-resistant con-
densate evaporator. A strict quality- assurance
team inspects all materials and components to cer-
tify that each model conforms to the most exacting
standards. All models are factory performance-test-
ed for a minimum of 16 hours prior to crating.
REFRIGERATORS
D D L L 3 3 R R E E - - S S S S
• • D D L L 1 1 R R X X - - S S S S
• DL1RE
• DL1RX
• DL2RE
• DL3RE

Cabinet Construction

All materials are of top quality, assembled to con-
form with strict quality-assurance
The cabinet front and doors are constructed of
heavy-gauge polished stainless steel for durability.
All cabinet joints and seams are sealed vapor-tight.
Case is of all metal, welded construction and inter-
food storage nally supported and braced for a rigid unit con-
struction. Cabinet design eliminates overlapping
panels with raw edges. Cabinet body and doors are
insulated
polyurethane foam with an average thickness of 3
inches to ensure increased energy efficiency. Full
length louvered air grille located above the doors
allows equal air circulation to the condensing unit.
Easily removable, low wattage, anti-sweat door
heaters concealed by a non-metallic, non-conduc-
tive, high impact thermal stainless steel breaker
strip and cover eliminate condensate build-up on
the cabinet front. Automatic interior lighting is con-
trolled by door openings. Cabinets are equipped
with 6-inch adjustable stainless steel legs.
REFRIGERATORS
• Modern, State-of-the-Art Styling Performance
Rated "Plug" Refrigeration System Utilizing
Environmentally Safe R-134a Refrigerant
• 3" Non-CFC Polyurethane Foam Insulation
• Chrome-Plated Flow Line Handles
• Cam-Action Lift-Off Hinges
• Self-Closing Doors
• Magnetic Snap-In Door Gaskets
• Cylinder Lock in Each Door
• Automatic Hot Gas Condensate Evaporator
• Adjustable 6" Stainless Steel Legs
• Heavy-Duty,Epoxy-Coated Steel Shelves
• External Digital Thermometer
Standard (S/S Front, Aluminum Ends & Interior)
Suffix SA (S/S Exterior, Aluminum Interior)
Suffix SS (S/S Exterior & Interior)
requirements.
with non-CFC, foamed-in-place
EXTRA-WIDE

Standard Features

Shelving

Shelves are designed for heavy-duty use with .306"
diameter frame and brace members and .140"
diameter fill wires spaced 3/4" apart. Shelves are
welded steel and epoxy-coated for a durable, long,
rust-free service life, mounted on studs. A wide
door opening allows the use of a variety of option-
al pan and tray slide types.

Door Construction

Door shells are constructed of heavy-gauge stain-
less steel and are internally braced and urethane-
foam-insulated for rigidity. Door corners are of
welded construction and polished. Replaceable
snap-in door gaskets are self-adjusting, heavy-
duty, magnetic type. Door handles and hinges are
chrome-plated and non-corrosive. Doors are pro-
vided with built-in cylinder locks which are keyed
alike. Hinges are cam-action, lift-off type featuring
positive safety stop at 120 degrees.
