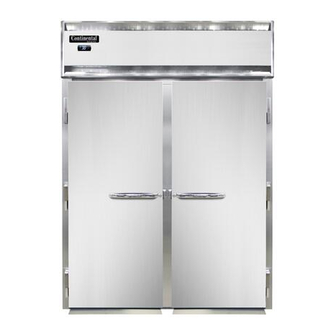

Continental Refrigerator DL1RI-SS Specifications

Utilizing Environmentally Safe, CFC-free R-134a Refrigerant
D D L L 1 1 R R I I - - S S S S
D D L L 2 2 R R I I - - S S S S
Models Available
•Roll-Thru
•Remote
REFRIGERATION SYSTEM
A "performance rated", air-cooled hermetically sealed,
capillary type refrigeration system is installed on the top
of each refrigerator. Plasticized fin coil and air circulat-
ing fans are contained within a concealed "plug" type
insulated housing, readily accessible on the top of the
cabinet and separate from the food zone to increase
food storage capacity. The entire "plug" system is fully
charged with environmentally safe R-134a refrigerant
and mounted on a sturdy steel, rail type base, which
can be easily removed if freezer conversion is desired.
Refrigerators are designed to maintain 38 to 40
degrees Fahrenheit (3-5 degrees Centigrade) while
operating with an unrestricted air supply in a maximum
ambient temperature of 100 degrees Fahrenheit. All
condensate water is evaporated by an automatic, non-
electric, corrosion-resistant condensate evaporator. A
strict quality-assurance team inspects all materials and
components to the most exacting standards. All mod-
els are factory performance-tested for a minimum of 16
hours prior to crating.
REFRIGERATORS
D D L L 3 3 R R I I - - S S S S
•Glass Door
•Consult Factory
CABINET CONSTRUCTION
All materials are of top quality, and are
assembled under rigid supervision conform-
ing to strict quality assurance requirements.
The cabinet front, doors, and interior bottoms
are constructed of heavy gauge polished
stainless steel for durability. All cabinet joints
and seams are sealed vapor tight. Case is of
all metal welded construction and is internally
supported and braced for rigid unit construc-
tion. Cabinet design eliminates overlapping
panels with raw edges. Cabinet body and
doors are insulated with non-CFC, foamed in
place polyurethane foam with an average
thickness of 3 inches to ensure increased
energy efficiency.
grille located above the doors allows equal air
circulation to the condensing unit.
removable, low-wattage, anti-sweat door
heaters concealed by a non-metallic, non-
conductive, high-impact thermal breaker strip
eliminate condensate build up on the cabinet
front. Automatic interior lighting is controlled
by door openings.
with an easily removable stainless steel ramp
and interior rack guides.
ROLL-IN & ROLL-THRU
REFRIGERATORS

Standard Features

•Modern, State-Of-The-Art Styling
•Performance Rated, "Plug" Refrigeration
System Utilizing Environmentally Safe R-134a
Refrigerant
•3" High Density, Non-CFC Polyurethane
Foam Insulation
•Chrome-Plated Flow Line Handles
•Cam-Action Lift-Off Hinges
•Self-Closing Doors
•Cylinder Lock in Each Door
•Automatic Hot Gas Condensate Evaporator
•27 3 / " Wide, 66 1 / " High Door Opening
8 2
•External Digital Thermometer
•Removable Stainless Steel Rack Guides
•Magnetic Snap-In Door Gaskets
•Unique Air Flow Distribution Ducts Keep Pan
Product at Uniformly Constant Temperatures
•Removable Stainless Steel Ramps
Standard (S/S Front, Aluminum Ends & Interior)
Suffix SA (S/S Exterior, Aluminum Interior)
Suffix SS (S/S Exterior & Interior)
DOOR CONSTRUCTION
Doors shells are constructed of a heavy
gauge stainless steel and are internally
braced and urethane foam insulated for
rigidity. Door corners are of welded con-
struction and polished.
snap-in door gaskets are self-adjusting,
heavy-duty, magnetic type. Doors han-
dles and hinges are chrome-plated and
non-corrosive. Doors are provided with
built-in cylinder locks, which are keyed
alike. Hinges are cam action, lift-off type
featuring a positive safety stop at 120
degree
Full-length louvered air
Easily
Cabinets are equipped
Replaceable
