- Page 2 ZOTAC. Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Setting up your system -------------------------------------------------------------------------------------5 Care during use ----------------------------------------------------------------------------------------------5 Welcome -----------------------------------------------------------------------------------------------------------6 Package contents -------------------------------------------------------------------------------------------6 Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming System --------------------7 Top view --------------------------------------------------------------------------------------------------------7 Rear view ------------------------------------------------------------------------------------------------------8 Installing the glass side cover ------------------------------------------------------------------------------10 Installing a new graphics card for GU3080C7R1B (i7+RTX3080) -------------------------------12... -
Page 4: Product Specifications

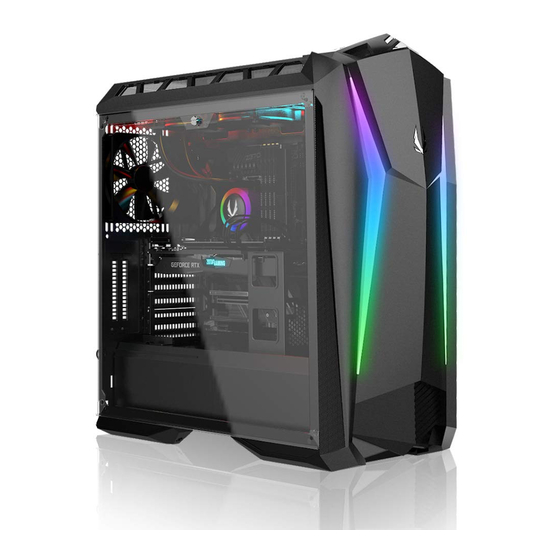

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Product specifications For GU3080C7R1B (i7-RTX3080) q Microprocessor Support v Intel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz) q Onboard Graphics Support v NVIDIA RTX3080 w/ 10GB GDDR6X for GU3080C7R1B q Internal Expansion: v 32GB DDR4 OC 3200MHz v 4TB 3.5“... - Page 5 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM For GU3070C7R1B (i7-RTX3070) q Microprocessor Support v Intel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz) q Onboard Graphics Support v NVIDIA RTX3070 w/ 8GB GDDDR6 for GU3070C7R1B q Internal Expansion: v 16GB DDR4 OC 3200MHz v 2TB 3.5“...
-
Page 6: Safety Information
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Safety information Your ZOTAC GAMING MEK ULTRA PC Gaming System is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. -
Page 7: Welcome
Congratulations on your purchase of the ZOTAC GAMING MEK ULTRA PC Gaming System. The following illustration displays the package contents of your new MEK ULTRA PC Gaming System. If any of the below items is damaged or missed, contact your retailer. -
Page 8: Getting To Know Your Zotac Gaming Mek Ultra Pc Gaming System
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming System Top view Refer to the diagram below to identify the components on this side of the system 1. Headphone/Audio Out jack The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to gaming headset. -
Page 9: Rear View
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Rear view 1. USB 3.0 ports The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices for maximum performance with USB 3.0 compatible devices. 2. PS2 keyboard/mouse port The PS/2 port is used to connect with keyboard/mouse. - Page 10 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM 6. WiFi antenna connectors The WiFi antenna connector supports the included WiFi antenna. 7. Audio ports with SPDIF-out Use the five audio ports to connect audio devices. The pink jack is for microphone. The green jack is for front speaker out signal.
-
Page 11: Installing The Glass Side Cover
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Installing the glass side cover The MEK ULTRA PC gaming system is pre-installed with an iron side cover, users can also install the glass side cover in accessories. Please follow the instructions below to install the glass side cover. - Page 12 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM 3. Insert the glass side cover to the side of the MEK ULTRA PC Gaming system, and ensure that the installation is in place. 4. Use a coin to turn the screw to secure the glass side cover.
-
Page 13: Installing A New Graphics Card For Gu3080C7R1B (I7+Rtx3080)
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Installing a new graphics card for GU3080C7R1B (i7+RTX3080) The RTX3080 graphics card will be pre-installed with a Z-shaped bracket in GU3030C7R1B models. If you need to install a new graphics card, please follow the instructions below to remove the pre-installed graphics card. - Page 14 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM 4. Locate the graphics card and release the two screws. 5. Release the cables of graphics card. 6. Press down and hold the buckle of graphics card, and remove the graphics card.
- Page 15 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM 7. Release the two screws and remove the Z-shaped bracket. 8. Install the new graphics card.
-
Page 16: Installing Killer Control Center
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Installing Killer Control Center Before you can use the full feature of Killer Lan, please follow the instructions below to install the Killer Control Center. Run Killer Wireless Network Driver, click “Next” when the following dialog box displays. - Page 17 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Click “Install” to begin the installation. (Please make sure that the network is connected before the installation) Check √ before “Download Killer Control Center”, and click “Finish”.
- Page 18 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Click “Get” to download the Killer Control Center. When the installation is complete, click “Launch” to run the Killer Control Center.
- Page 19 ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Killer Control Center displays as below.
-
Page 20: Configure Your Zotac Gaming Mek Ultra Pc Gaming System
Connect one end of the Ethernet cable to your Internet Service Provider (ISP) modem/router. Connect the other end to the Ethernet port in the rear of the MEK ULTRA PC Gaming System. Highlight “Internet Protocol (TCP/IP)” and click “Properties”. Select “Use the following IP address”. -
Page 21: Configuring Audio Output
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM Configuring audio output Follow the steps below to enable audio output when connecting the MEK ULTRA PC Gaming System to a TV or receiver via DP/HDMI adapter. Access the Sound settings via the system Control Panel.
