NetVanta 3448 Router
Quick Start Guide
E T A
NABLE ELNET CCESS
The following steps create a password of adtran for Telnet access. By default, Telnet access is
enabled with a password of password.
1. Verify that the prompt of your unit displays (config)#.
2. Enter line telnet 0 4 to change the configuration parameters for the Telnet sessions.
3. Enter login to initiate Telnet access.
4. Enter password adtran to change the login password for the Telnet sessions.
5. Enter exit to return to the Global Configuration mode.
6. Verify that the prompt of your unit displays (config)#.
7. Enter do write memory to save the current configuration.
C Y A
ONFIGURE OUR PPLICATION
More detailed documentation for configuring your ADTRAN unit is provided on the ADTRAN OS
System Documentation CD included in your shipment. For more detail on hardware setup, refer to
the appropriate NIM Quick Start Guides and the Hardware Installation Guide. For more detail on
configuring your system, refer to the ADTRAN Operating System (AOS) Command Reference
Guide, configuration guides, and technical support notes.
Important: For additional details on product features, specifications,
installation, and safety, refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation CD shipped with the
base unit and available online at www.adtran.com.
Quick Start Guide, 61200821E1-13A, July 2006

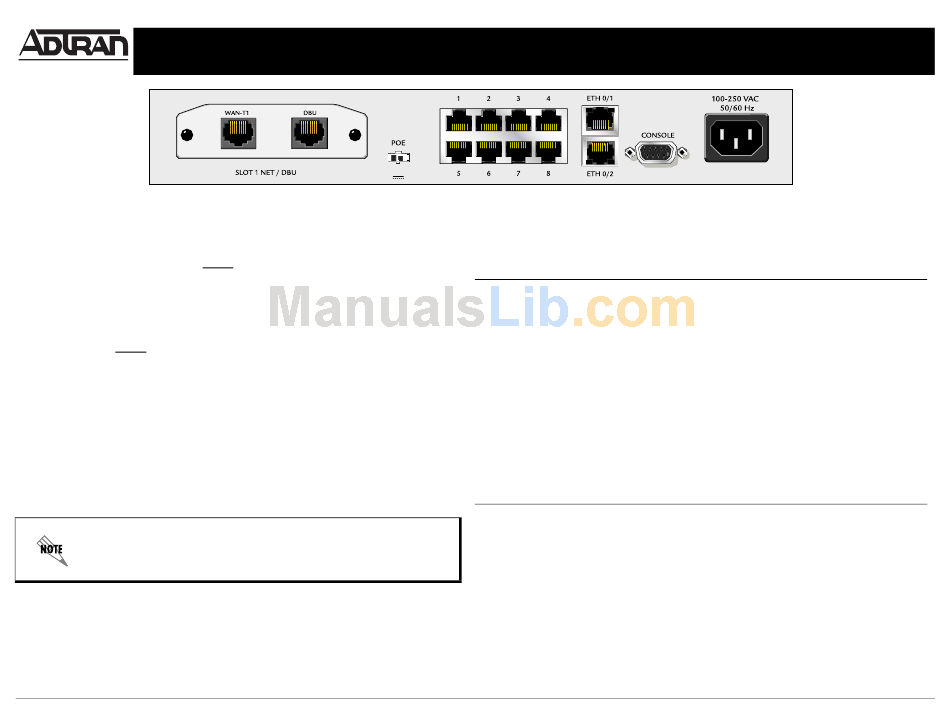

45 V
N V 3448 R P
ET ANTA EAR ANEL
C
ONSOLE
Pin
1
2
3
4
5
6
7
8
9
E
THERNET
Pin
1
2
3
4, 5
6
7, 8
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at www.adtran.com.
L
AYOUT
P
INOUTS
Name Description
DCD Data Carrier Detect (output)
RD Receive Data (output)
TD Transmit Data (input)
DTR Data Terminal Ready (input)
SG Signal Ground
— Tied to Pin 1 (output)
— Unused
— Tied to Pin 1 (output)
— Unused
P
INOUTS (ETH 0/1, ETH 0/2, E
Name Description
TX1 Transmit Positive
TX2 Transmit Negative
RX1 Receive Positive
— Unused
RX2 Receive Negative
— Unused
