INSTALLING THE NETVANTA 340 ROUTER
Quick Start Guide
C N V
ONNECT TO THE ET ANTA
1. Connect the NetVanta 340 E
THERNET
Ethernet cable.
2. Supply power to the PC and the NetVanta 340 and begin the operating system boot
up process. During boot up, the PC obtains an IP address from the NetVanta 340
DHCP server. By default, both the DHCP and HTTP Servers are enabled. The
default IP address is 10.10.10.1.
3. Open your internet browser and enter 10.10.10.1. in the URL field. The NetVanta 340
login window appears.
4. Enter the default username (admin) and password (password), and click the OK
button.
For security purposes, you should set up an admin password immediately.
Use the Passwords page of the Web GUI to change this password.
5. By default, the NetVanta 340 comes with an ADSL and an ATM (Asynchronous
Transfer Mode) port already configured and enabled. The service provider should
provide a PVC (VPI / VCI) number which will be used to configure the ATM PVC.
F
EATURES
• One integrated 10/100 Ethernet port
• ADSL Network Interface - ITU 992.1, 992.2, ANSI T1.413 Issue 2
• WAN Protocol: ATM
• Integrated IP Router with Bridging
• Command Line Interface (CLI)
• SNMP Management
• Web Based Management
• Front panel LEDs
• Dying gasp capability
• Dynamic rate adaption support
Quick Start Guide, 61200422L1-13C, December 2004
340
interface to the PC using the appropriate
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
C

ATM PVC

ONFIGURE THE
1. Click on the Getting Started link under the System menu.
This willl bring up a side bar page.
2. Click on Step 1 - Configure the Public Interface at the top of
the side bar page to open the ATM PVC page.
3. Fill in the PVC number and select an Interface Mode. This is
usually PPP or PPPoE; however, if IP routing is chosen, you
will need to enter an IP address.
4. Click Apply. If PPP or PPPoE is selected as the Interface
Mode, you will be taken to the PPP page after clicking Apply.
Here you will need to select the type of authentication needed,
authentication passwords, and the Address Type. In most
cases you will want the Address Type to be Negotiated. Click
Apply when all the information is complete.
The default switch must be pressed WHILE the power light is
blinking green. Do not press the default switch BEFORE the
power light is blinking green, as this will cause boot to be missed.
F D S
ACTORY EFAULT WITCH

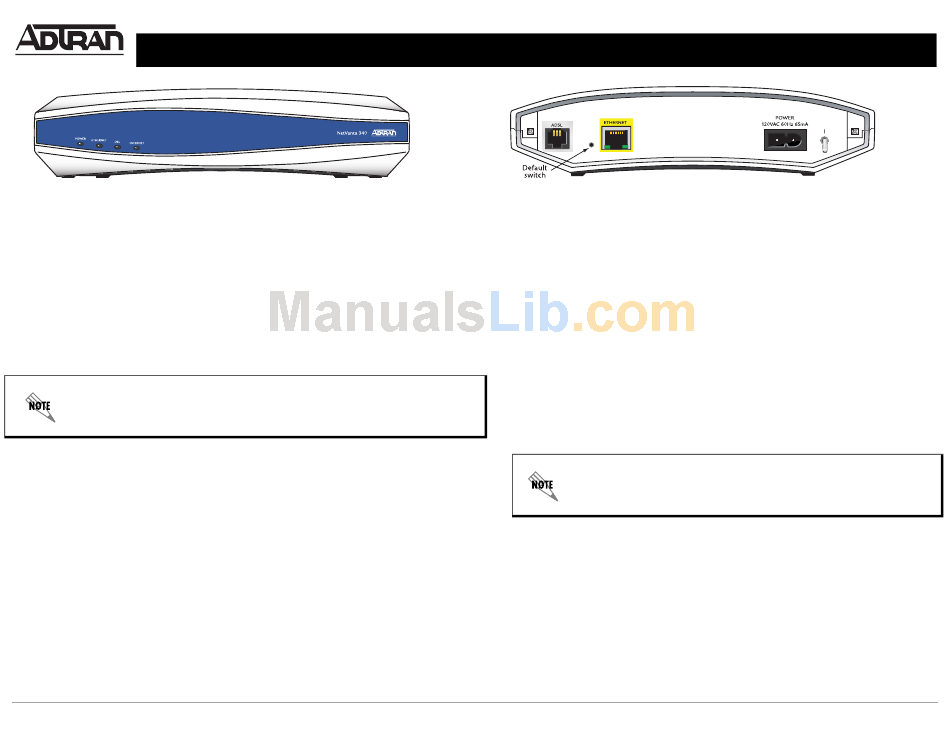

• If pressed during boot up, the default switch (pointed out in the illustration
above) will cause the unit to stay in bootstrap mode. Since the unit has no
serial port, Telnet has been built in to the boot code. The default IP address
is 10.10.10.1.
• If pressed and held for 5 seconds after boot, the E
default to 10.10.10.1, and all access policies will be removed from that
interface.
• If pressed for 30 seconds, a default configuration will overwrite your
existing configuration and reboot the unit.
www.adtran.com
P/N 1200422L1
interface will
THERNET
Copyright © 2004 ADTRAN, All Rights Reserved
