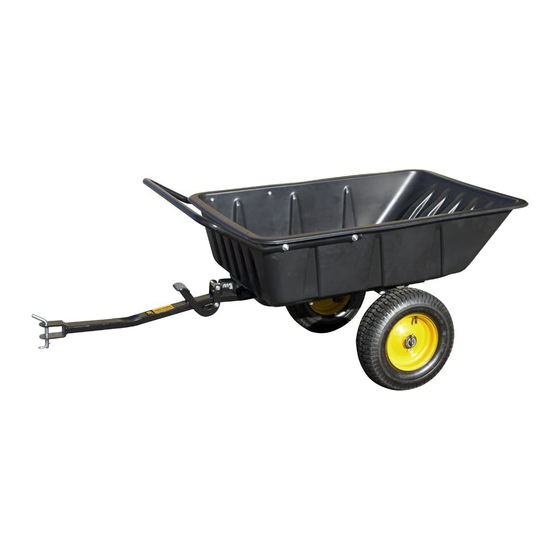

Clam POLAR TRAILER 10539 Quick Start Manual

Clam POLAR TRAILER 10539 Quick Start Manual

Lg 600 hybrid
Hide thumbs Also See for POLAR TRAILER 10539:

Advertisement

Quick Links

- S P E C IF I C AT I O N S:
Part Number:
Load Capacity:
Load Size:
Heap Load Size:
Dimensions:
Overall Weight:
Tires:
Instruction P/N
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT-PLEASE READ:
CLAM OUTDOORS INC. warrants to the original retail purchaser its product be free from manufacturers defects for (5)
years from the date of the original purchase. Clam Outdoors Inc will replace or repair any part found defective within the
(5) year time limit. All parts must be returned to Clam Outdoors Inc. Before returning any parts, you must first call or write
and acquire a return authorization. All returns must be returned postage-prepaid and include the original cash register
receipt (date and purchase price).
To submit a warranty claim request, please use one of the following methods:
https://polartrailer.com/pages/warranty-form
Email:
customerservice@clamcorp.com
The warranty does not apply to any Polar Trailer which has been subjected to an accident, improper installation,
modification, adjustment, repair, misuse, misapplication, neglect, including but not limited to improper maintenance, or
use of unauthorized parts or attachments.
LIMITATION OF LIABILITY
It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty, negligence,
strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoor Inc. is not liable for any
injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit,
or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair or replacement
of Clam Outdoor Inc. products. Clam Outdoor Inc. reserves the right to make alterations or modifications in its products
at any time, which in its opinion, may improve the performance and efficiency of the product. It shall not be obligated to
make such alterations or modifications to products already in service.
Clam contact information
Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
▪ Clam Outdoors
Attn: Customer Service
12135 Brockton Lane
Rogers, MN 55369
▪ Phone: 763-231-4120
115256
600 lbs.
7 Cubic Feet
10 Cubic Feet
L71x W33 x H31
55 lbs.
MODEL 10539
15 x 4.00-8
106317
LG 600 HYBRID
POLARTRAILER.COM
WARRANTY INFORMATION
** REGISTER YOUR PURCHASE ONLINE AT POLARTRAILER.COM **
CAN BE USED AS A TRAILER OR CART

Advertisement

loading
Need help?

Need help?

Do you have a question about the POLAR TRAILER 10539 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clam POLAR TRAILER 10539

  • Page 1 Clam Outdoors Inc will replace or repair any part found defective within the (5) year time limit. All parts must be returned to Clam Outdoors Inc. Before returning any parts, you must first call or write and acquire a return authorization.
  • Page 2 THE FOLLOWING STATEMENTS ARE SUGGESTIONS AND DO NOT SUPERCEDE OR ELIMINATE ANY TOWING AND SAFETY INSTRUCTIONS LISTED IN ANY OWNERS MANUALS FOR ANY PRODUCT BEING USED FOR THE PURPOSE OF TOWING ANY CLAM OUTDOORS INC. PRODUCTS. ALWAYS REFER TO THE TOWING VEHICLES MANUAL, GUIDELINES OR INSTRUCTIONS.
  • Page 3: Parts List

    PARTS LIST PART NO DESCRIPTION 104851 ASSY, TUBE CAP, HANDLE 104835 DECAL, LG600 TRAILER 104864 BASE, LG600, HYBRID 106317 INSTRUCTIONS, LG600 HYBRID TRAILER 106315 INNERPACK, LG600 HYBRID TRAILER (INCLUDES THE FOLLOWING) 103826 WLDMNT, AXLE LG7 102569 TRAILER, PIVOT TUBE 104849 ASSY, TONGUE, PEDAL RELEASE 104839 ASSY, WHEEL, 15 X 4.00-8...
  • Page 4 FASTENERS...
  • Page 5 STEP-1 *USING A DROP OF OIL ON ALL NUTS WILL EASE THE ASSEMBLY PROCESS. *IT IS BEST TO USE THE AID OF ANOTHER PERSON DURING ASSEMBLY. 1. INSTALL THESE COMPONENT USING THE FASTENERS TO THE AXEL ASSEMBLY AS SHOWN AND SECURELY TIGHTEN THE AXLE TO THE U-FRAME 102569 MUST MOVE FREELY REFLECTORS TAPE...
  • Page 6 STEP-3 1. USE ASSEMBLY FROM STEP-2 AND INSTALL THE TONGUE WITH FASTENERS AS SHOWN. 104849 (TONGUE) MUST MOVE FREELY STEP-4 1. INSTALL BASE TO FRAME ASSEMBLY WITH ALL FASTENERS AS SHOWN AND SECURELY TIGHTEN FASTENERS.
  • Page 7: Trailer Operation

    STEP-5 1. INSTALL HANDLE TO BASE WITH FASTENERS AS SHOWN AND SECURELY TIGHTEN FASTENERS. TRAILER OPERATION KEEP CLEAR OF ROTATING BOX AREA TO AVOID INJURY USE FOOT TO PUSH DOWN FOOT PEDAL TO RELEASE BASE...
  • Page 8 CONVERTING FROM TRAILER TO CART 1. REMOVE TONGUE, PIVOT TUBE AND FASTENERS AS SHOWN 2. SLIDE STAND INTO PLACE AND RE-INSTALL FASTENERS AS SHOWN STAND (104856) TOP MUST SLIDE OVER THE LATCH CATCH BRACKET BEFORE INSTALLING THE FASTENERS. REVERSE OPERATION TO CHANGE BACK TO TRAILER...
  • Page 9 VISIT OUR WEB-SITE FOR ADDITIONAL ACCESSORIES THAT MAY BE AVAILABLE FOR YOUR TRAILER TOOL RACK PART# 110517 TOOL ORGANIZER PART# 110518...
