Related Manuals for Contemporary Research 232-ATSC
Summary of Contents for Contemporary Research 232-ATSC
- Page 1 Firmware Library 17630 Davenport Rd, Suite113 Dallas, TX 75252 USA Tel: 972.931.2728 888.972.2728 Fax: 972.931-2765 Web: www.crwww.com www.contemporaryresearch.com...
- Page 2 AV Products...

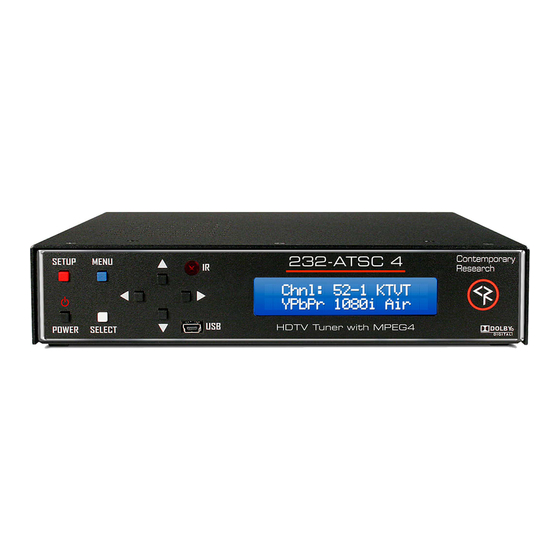

- Page 3 * 232-ATSC HDTV Tuner RS-232 controlled * V1.1 03-12-07 Initial release similar in style to 232-STA/STS firmware V4.5 * V1.3 04-21-07 Fixed that Air/Cable could get out of sync. Added PCM Variable as FP mode 47.2 and for 'KK=160' command Following versions require HD processor V0.62 and higher firmware...
- Page 4 * IP-HDTV tuner with Ethernet and RS-232 control * V1.1 06-05-05 Ethernet uses fixed IP addr and Telnet port 23 * V1.2 06-28-05 Adds KK= cmds for setting output and format. No FP modes yet. * V1.3 07-01-05 Adds FP Setup modes for output, format, baud, unit, and show firmware version * V1.4 07-23-05 Added 38.4K, 57.6K, and 115.2K baud rates.
- Page 5 * 232-STA Stereo TV Tuner, RS-232 controlled * 232-MTA Mono TV Tuner for V1.5 and up * V1.0 07-28-97 Initial release * V1.01 07-31-97 Enables COP on power up (was not being enabled with EMP20 pgm) * V1.1 08-28-97 Fixes bug for HRC chan 6 not working. Defaults TR thru chan 69. If EESSR is set to 0, then RS-232 send of Stereo/Mono disabled * V1.2 12-15-97 Fixes bug where chan down would not wrap back around if tune...
- Page 6 * 232-STS Stereo TV Tuner, S-Video, Captions, RS-232 controlled * This product has a software bootloader for firmware update capability: * V3.1 07-05-03 Initial release similar to 232-STA V1.8 but for the new 9S12 chip. Press and hold both channel up and down buttons while powering up to enter bootloader mode * V3.2 12-03-03 Now allows lower case characters in alpha channel labels...
- Page 7 by cursors) does a toggle of the TV Standard * V6.1 08-01-07 Adds ability to use 25C160 memory chip. Fixes external audio input to pass through even if no external video input* * 232-STSi Stereo PAL Tuner with 9S12 chip, S-Video, Captions, RS-232 controlled * V3.6 10-14-04 Initial release like 232-STS software V3.5 but for PAL tuner.
- Page 8 * 08-30-94 V1.0 Initial release * 09-12-94 V1.1 Added '>EN' Echo On, '>EF' Echo Off, Front Panel disable levels (changeable from RS-232 or FP Mode 4), and show software version on FP Mode 6 * 05-09-95 V1.2 Changes switch/LED scan rate from 3.33 to 3.0mS and adds an extra 5uS delay before reading switches * 07-28-95 V1.3 Fixed bug where a '>PV=T3' command did not work (a T in the output select B/D position does not set lock-out level to 3)
- Page 9 FM_IR-232.TXT * IR-232 IR to RS-232 Converter * With S12 firmware update capability * V1.2 08-27-04 Initial release. With 12.2K user memory * V1.3 09-01-04 Adds Sony 20 bit codes (such as for DVD player) * V1.4 09-13-04 Fixes bug for NEC and Samsung codes to custom strings * V1.5 09-14-04 Relaxes NEC timings to work better with RCA universal remote.
- Page 10 iC-Net and ABC...
- Page 11 * ABC Axcess program * by Contemporary Research V1.1 05/29/98 Fixes bug where ending an event with no control was stopping the media devs V1.2 06/09/98 Fixes bug where page to zone or individual was not switching principal/rem dev to the paging chan V1.3 08/25/98 Fixes lower case.
- Page 12 V2.95 10/23/01 Adds TXEN cmd for measuring iC dev return RF level at HE. Adds 'W' write to memory over iC bus cmd V2.96 04/05/02 Adds CTRL groups 4 and 5 for volume control lockout also. Echos 'M' menu responses received from HE out to SR_DEV V2.97 06/15/02 Adds support for AXB-NET cmds V2.98 06/24/02 Echos 'K' and 'F' responses received from HE out to SR_DEV V2.99 07/19/02 Minor changes to VC_ENABLEs for Valcom responses...
- Page 13 * ICC-HE (S12 hardware) and ICE-HE Head-end Interface * V3.1 06-03-04 Initial release for the 9S12 hardware. Adds 'F@=' cmd for pass mode to a device (timeout after 12 secs of no activity). Adds 'ZQ' cmd to enter bootloader mode. A '>' is now optional (ignored) in front of any cmd.
- Page 14 FM_IC-HE.TXT * ICC-HE Head-end Interface * V1.0 Initial release * V1.4 Supports multiple OTP programs * V1.5 Modified for ICC-HE Rev 0 PCB (from ICC2 Rev 0) * V1.6 Fixes UART RX buffer overflow * V1.7 * Reads front panel DIP switch S6-S8 to set RS-232 UART baud rate. * Adds dummy input polling for EXP_DEVS=0.
- Page 15 * iC Series 1-way and 2-way smart port TV controllers (Philips, RCA, Zenith) * V1.0 Initial release * V1.3 10-10-95 Adds support for Aux Video Input at chan 118 (or 91). Adds support for NVRAM TV power and channel restore. * V1.4 11-14-95 Aux Video Input is now chan 126.
- Page 16 (default black) * V3.3 07/15/97 When in Menu, chan up is same as Enter. Cursors send key codes * V3.4 09/06/97 Fixes vol single step problem with newer Zenith software -04. Enables COP if not already * V3.5 09/24/97 Adds RCA TV, but IR decode is still Mitsu VCR type and cursors do not all work * V3.6 11/03/97 RCA TV now uses RCA VCR type.
- Page 17 Zenith -05 micros for scan card use or msg with CR. Enables Zenith -05 internal chan labels just before smart port disable. * V4.51 10-07-98 Makes Alarm button act like Menu to work with std TV remote Required for use with ICW Rev B. Fixes Philips PRMAX=4 (not 3) * V4.6 12-12-98 Makes units respond to Sharp TV and VCR patterns in addition to the Mit VCR pattern.
- Page 18 * ICC1-232 RS-232 TV controller * PCB Rev A (9S12A64) * V1.0 03-12-06 Beta release fixed for LG LCD and split Sencore channels * V1.1 07-20-06 Beta test fixed for Sharp LCD * V1.2 07-22-06 Adds choice of Sharp or LG * V1.3 08-12-06 Adds LG lockout and repeat power off * V1.4...
- Page 19 * ICC1-IR IR TV controller * PCB Rev 0 and Rev B (68HC11) * V1.0 05-28-98 Initial release for Panasonic TV * V1.1 10-21-98 Adds Zenith TV. S2 DIP SW 6 off=Zenith, on=Panasonic * V1.2 03-16-99 Changes PN_TIMER to be at 50mS intervals (instead of 32.77mS) Makes Zenith now send up to 3 digits with Enter for chans>=100 Makes Zenith send 1,2 or 3 digits with Enter depending on chan * V1.3...
- Page 20 was shortened in conjunction with the power sensor. Absorbs 'TH' command but does not tune. Extends Samsung after power on time to 14 secs for newer LCDs with HDTV tuner. Adds Samsung Enter fn after channel digits for quicker tuning * V4.5 06-13-07 Adds 2-part dash tuning with 'TH' command.
- Page 21 FM_IC-PSC.txt * ICC2-PSC, ICC2-PSC/AV, ICC1-PSC * iC Series 2-way and 1-way TV smart port controller for 9S12 chip * This product has firmware update capability (V1.1 and higher) * Updates are from the IC-HE over the coax (ICC) or wired (ICW) net bus * V1.0 10-30-03 Initial release, similar to ICC2 V5.5 for 68HC11 chip * V1.1 12-02-03 Adds bootloader for firmware update capability Page 1...
- Page 22 * ICC2-ATSC HDTV Tuner coax controlled with RS-232 output * V1.1 03-12-07 Pre-release like 232-STA software plus ICC1 coax with NEC * V1.4 08-08-07 Release with Olevia codes * V1.5 08-27-07 Added Panasonic and LG codes * V1.6 09-28-07 Fixes bug in 'TR' and 'TN' commands * V1.7 02-23-08 Adds NEC Plasma codes and parity options FM_ICC2-ATSC.TXT...
- Page 23 * ICW-IRC iC Series 2-way IR controller (or ICC2-IRC for V2.1 and later) with IR receiver and IR output * V1.0 Initial release * V1.01 09-28-98 Adds LED all illuminate on reset cmd. Adds to INITCMD inits * V1.1 09-29-98 Fixes bug where VCR mode MENU fn was not working. Fixes bug where '?0'..'?9' were supposed to be 'S0'..'S9' set cmds.
- Page 24 * V4.1 11-09-05 Adds IR type 32 for X2GEN LCD TV * V4.2 03-07-06 Adds DVI input select for IR type 21 (LG/Zenith type) * V4.3 06-13-06 Adds IR type 35 for Sony LCD TV discrete * V4.4 09-18-06 Adds IR type 37 for Mitsubishi LCD Monitor * V4.6 11-07-06 Adds ability to use 25C160 memory chip * V4.7...
- Page 25 * ICC2-VDC iC Series 2-way coax controller with S12 chip, S-Video, Captions, RS-232 controlled * V7.0 09-14-07 Initial release like ICW-IRC V5.1 and 232-STS V4.5 software for new 9S12 chip * V7.1 09-29-07 Adds Sony FWD42PV1 plasma monitor as type 39. Adds character delay sequence as for Eiki type * V7.2 10-04-07 Fixes bug for IRC channels>13.
- Page 26 * ICC2-VDC iC Series Coax 2-way RS-232 controller with IR receiver and RS-232 output * V1.9 05-22-01 Adds NEC (and RCA) Plasma panel as type 12. Adds parity gen * V2.2 06-06-02 Adds IR carrier NNC control to EEOPT Bit 2 (required for Rev B) Adds 'T?' query tune chan cmd * V2.3 06-08-02 Adds equate ability to make ICC2-VDC.
- Page 27 FeatherTouch...
- Page 28 * IC-STA ICC Series Stereo TV Tuner/Demod * Initial release works with DPI panel with 8 char display with 10 byte RS-232 * protocol and switch closure inputs for chan up(select), vol up, and vol down * V3.0 03-14-97 Adds 'DA', 'DF', 'AD', 'TX' cmds to 1200 baud user terminal. Also adds 'DV#' show/set dev num cmd * V3.1 03-21-97 Adds NV vars for input level and the 2 stereo alignment regs * V3.2 03-24-97 Sequences non-volume control outputs on 9855 to minimize pop...
- Page 29 * ICA-FI1 ICC Series Panel Interface for ICA-FT1,FT2,FT3 * ICA-IO1 ICC Series General I/O * Initial release * V1.0 11-30-00 Switch/LED auto test mode. Makes the '=' optional * V1.1 12-21-00 Initial release * V1.2 01-09-01 Adds assembler switch for ICA-FI1 or ICA-IO1 * V1.3 04-06-01 Adds cmd '?I' for requesting input status as 'M' menu change No longer sends 'K' input changes on power-up or reset, but does send 'M' input status change when RF TX freq locked on...
- Page 30 * ICA-PP1 ICA Series TV Tuner with FM Stereo demod * ICA-PP3 without video (no TV Tuner) * Initial release works with DPI panel with 8 char display with 10 byte RS-232 * protocol and switch closure inputs for chan up(select), vol up, and vol down * V3.0 03-14-97 Adds 'DA', 'DF', 'AD', 'TX' cmds to 1200 baud user terminal.
