- Page 1 Product Manual 232-ATSC HDTV Tuner March 9, 2006 17630 Davenport Road, Suite 113 • Dallas, TX 75252 Phone: 972-931-2728 • Toll-Free: 888-972-2728 • Fax: 972-931-2765 E-Mail: Sales@crwww.com • Website: www.crwww.com...
-
Page 2: Table Of Contents
Terminal Communication Commands ......................... 16 HD2-RC Remote Emulation ............................17 Response Strings ............................... 18 Response Strings ..............................18 RS-232 Cable Connections..........................19 Rack Mounting ..............................20 Safety Instructions ............................21 Limited Warranty ............................... 22 Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 3: Overview

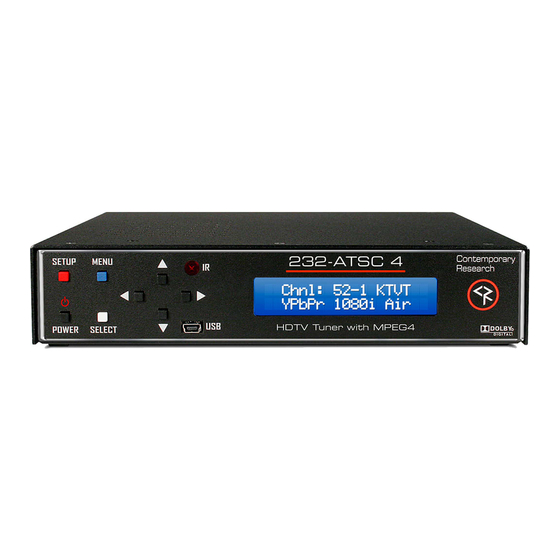

Overview The 232-ATSC HDTV Tuner is an integrator-friendly universal HDTV tuner, controllable via two-way RS-232 and discrete IR commands. Able to fit two-across in a 2RU rack space, the compact tuner outputs HDMI, RGB/Component, and composite video simultaneously. NTSC broadcasts are upscaled for HD display. Digital audio is available from HDMI, coax, and optical connections, as well as variable-level stereo audio. -
Page 4: Specifications
IR In: 3.5 mm stereo input for external IR sensor or wired IR (no carrier, discrete codes available) Power In: 2.1mm coaxial jack (inside center conductor positive) 1.3 A maximum, 11.5 to 15 VDC, 12 VDC typical Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 5: Tuning
Lock: Parental option for channels and/or rating Includes HD2-RC IR Tuner Remote, 4 AAA batteries Power Supply, 1.5A maximum, 12 VDC Options IR-RXC External IR Receiver RK1-HD Single Rack Kit RK2-HD Dual Rack Kit CC-232 RS-232 Cable Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 6: Front Panel Setup
1. Press and hold the Power button such that the red LED light above is lit (indicating Mute On). 2. Press Volume Up. 3. Release all buttons, the 232-ATSC will now be in the front panel programming mode. 4. The front panel display is dedicated to programming information display while in this mode. -
Page 7: Hd2-Rc Ir Remote
HD2-RC IR Remote The HD2-RC IR Remote included with the 232-ATSC can be used to setup the tuner and for daily operation. All of the functions on the remote have equivalent commands in RS-232, Ethernet, and Wired IR formats. In addition, the 232-ATSC front panel buttons can perform Power, Channel, and Volume control. -
Page 8: On-Screen Menus
Cable IRC – IRC cable spacing Tip: Normally, cable channels will be in standard frequencies. If all the channels tune in STD but channels 5 and 6, scan for IRC. If few channels can be found, scan for HRC. Contemporary Research 232-ATSC Digital HDTV Tuner... - Page 9 This page also displays from the Signal remote command. The graphic shows the current signal strength, and changes in real time. This allows you to monitor the strength of a channel as you adjust the antenna for best reception. Contemporary Research 232-ATSC Digital HDTV Tuner...
-
Page 10: Caption Menus
Version displays current version of tuner firmware V-Chip Settings Menus Manages access to programming for US and Canadian standards. The default PIN number for access is 0000 (four zeros. Change PIN Enter and confirm new PIN for access. Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 11: Setup Menus
Screen Format – 16:9 or 4:3 • Time • Sound Settings • Video Noise Reduction - On/Off (if tuned to analog) Set to On – helps to clean up analog channels • Menu Language – English, Spanish, French Contemporary Research 232-ATSC Digital HDTV Tuner... - Page 12 • Analog MTS – Mono, Stereo, SAP (same as Audio) • Multi-Track – English, French, Spanish • Digital Out – 5.1 or PCM • Auto Volume – On or off Contemporary Research 232-ATSC Digital HDTV Tuner...
-
Page 13: Pop-Up Menus
• Program – Times and name (if digital) • Details – Resolution, Audio Mode, Captions, Rating Guide Shows the day’s programming guide for current station. Use Up or Down arrows to move through Guide. Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 14: Rs-232 Control Protocol
Each of the groups has one ASCII status response string containing all of the status data for that group. The current status string of a group is sent from the 232-ATSC whenever a valid command for that group is received by the 232-ATSC RS-232 port or front panel. A group's status may be requested at any time via the RS-232 port. - Page 15 Steps through favorite channels (selected in List menu) KK=153 Sets tuner for antenna (Off-Air) tuning KK=154 Cable Sets tuner for cable tuning KK=149 Selects RGB output KK=150 YPbPr Selects Component (YPbPr) output KK=85 Audio Selects alternate audio options Contemporary Research 232-ATSC Digital HDTV Tuner...
-
Page 16: Terminal Communication Commands
Characters received will not be re-transmitted (power up default). Echo On Characters received will be re-transmitted. Example: ‘>EN’ Characters received will be re-transmitted. Product ID Returns the product model number and firmware version. Reconfigures unit for all factory default settings. Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 17: Hd2-Rc Remote Emulation
144=Format 480i 17=7 149=Output RGB 18=8 151=Output YPbPr 19=9 153=Air 154=Cable 21=Enter/Select 22=Ch Up 23=Ch Dn 24=Vol Up 25=Vol Dn 26=Vol Mute (tog) 27=Power On 28=Power Off 29=Menu 63=Guide 62=Air/Cable 80=Freeze 81=Signal 82=Ratio 83=Format 85=Audio Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 18: Response Strings
232-ATSC status response strings contain ASCII characters similar to those used for the same functions in command strings. An ASCII 'carriage return' and ‘line feed' follow each response string. Functions shown as N/A are not applicable or available as yet in the 232-ATSC; characters will appear in status strings as lower- case x. -
Page 19: Rs-232 Cable Connections
TXD 3 2 RXD 9-pin D-sub Control Port 3 TXD RXD 2 female GND 5 Unit 2 TXD 3 9-pin D-sub female RXD 2 GND 5 Unit 1 TXD 3 9-pin D-sub RXD 2 female Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 20: Rack Mounting
Two options are available for rack-mounting tuners. RK1-HD • Remove screws at the front of each side of case. • Insert 232-ATSC into RK1-HD frame. • Re-install side screws through flanges in rack frame. RK2-HD • Remove two screws from the top and outside corner of each tuner, matching screw positions in the RK2-HD. -
Page 21: Safety Instructions
Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Contemporary Research 232-ATSC Digital HDTV Tuner... -
Page 22: Limited Warranty
Limited Warranty Contemporary Research Corporation (CR) warrants this product to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase from CR. Should such a defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor.
